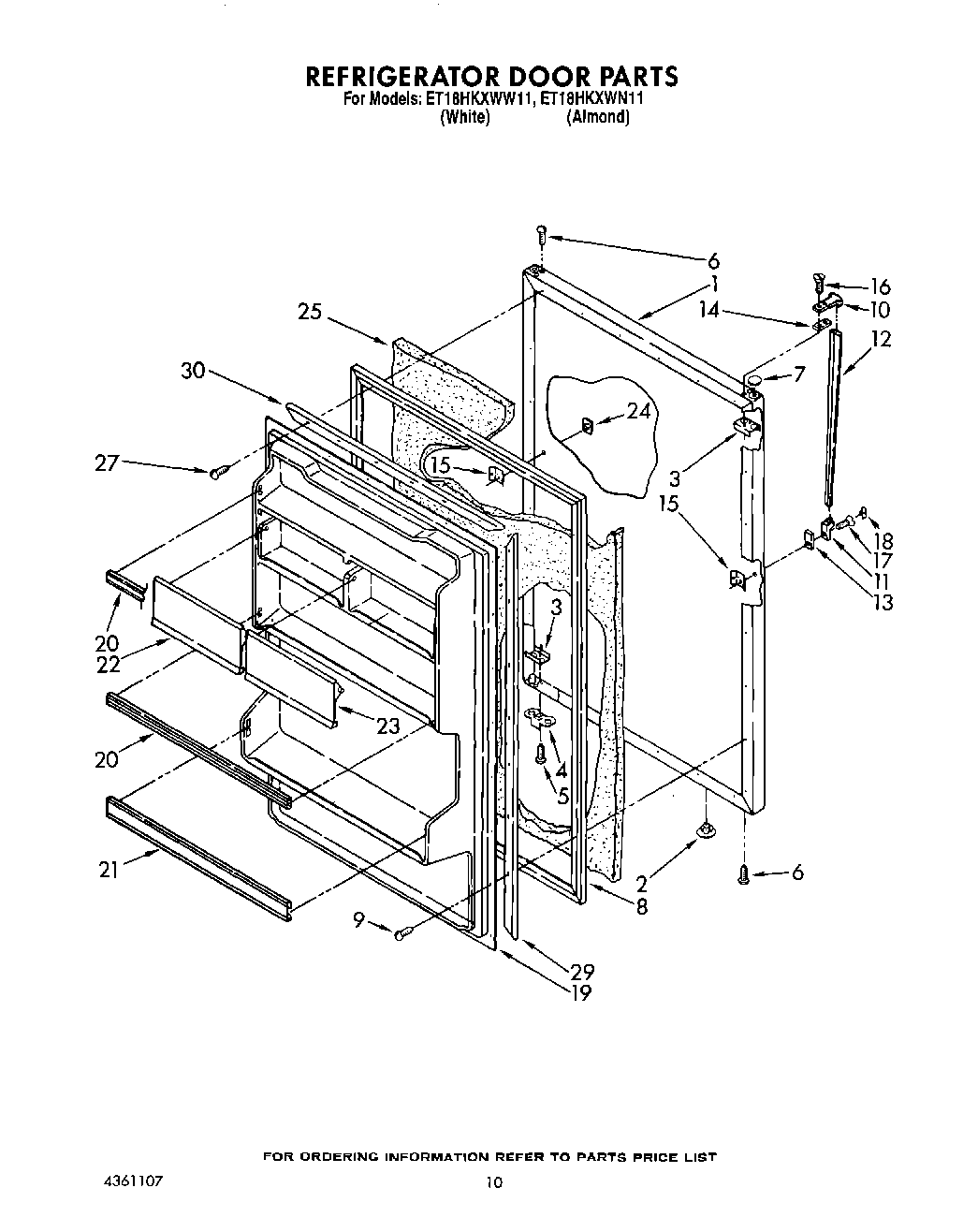

ET18HKXWW11 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

ET18HKXWW11 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

ET18HKXWW11 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
WPL LIT4361107
See Complete Cross-Reference Listing Film Card 800-A-1
285006 Whirlpool Spray
WPL LIT2148174
Leveler (Thinner)
Torx Key
WPL LIT2149680
WPL LIT2148862
350956 Whirlpool Spray Assembly
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
1Panel, Refrigerator Door (White)
1Panel, Refrigerator Door (Almond)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (2)
21Trim, Door
22Compartment Door, Utility
23Compartment Door, Butter
24Hole Plug, Handle (Almond)
24WP2189000 Whirlpool Refrigerator Handle Plug
29Gasket Retainer, Side (2)
30CEMENT, ALUMILASTIC (1 1/4 OZ.)
30WPL 876029
30Gasket Retainer, Top & Bottom (2)
30Almond (Uncut)
30WP72107 Whirlpool Touchup
30799344 Whirlpool Refrigerator Paint
3072017 Whirlpool Appliance Touch-Up Paint White
30WPL 799833
30TAPE, VINYL (3/4 X 108“)
30833938 Whirlpool Refrigerator Terminal
30876370 Whirlpool Refrigerator Insulation
30WP503695 Whirlpool Refrigerator Sealer
30511873 Whirlpool Refrigerator Paint
30212643 Whirlpool Refrigerator Permagum Sealer
3072032 Whirlpool Touch Up Paint Black
30WP505587 Whirlpool Refrigerator Sealer
30WP542638 Whirlpool Refrigerator Grease
30606755 Whirlpool Refrigerator Bag
