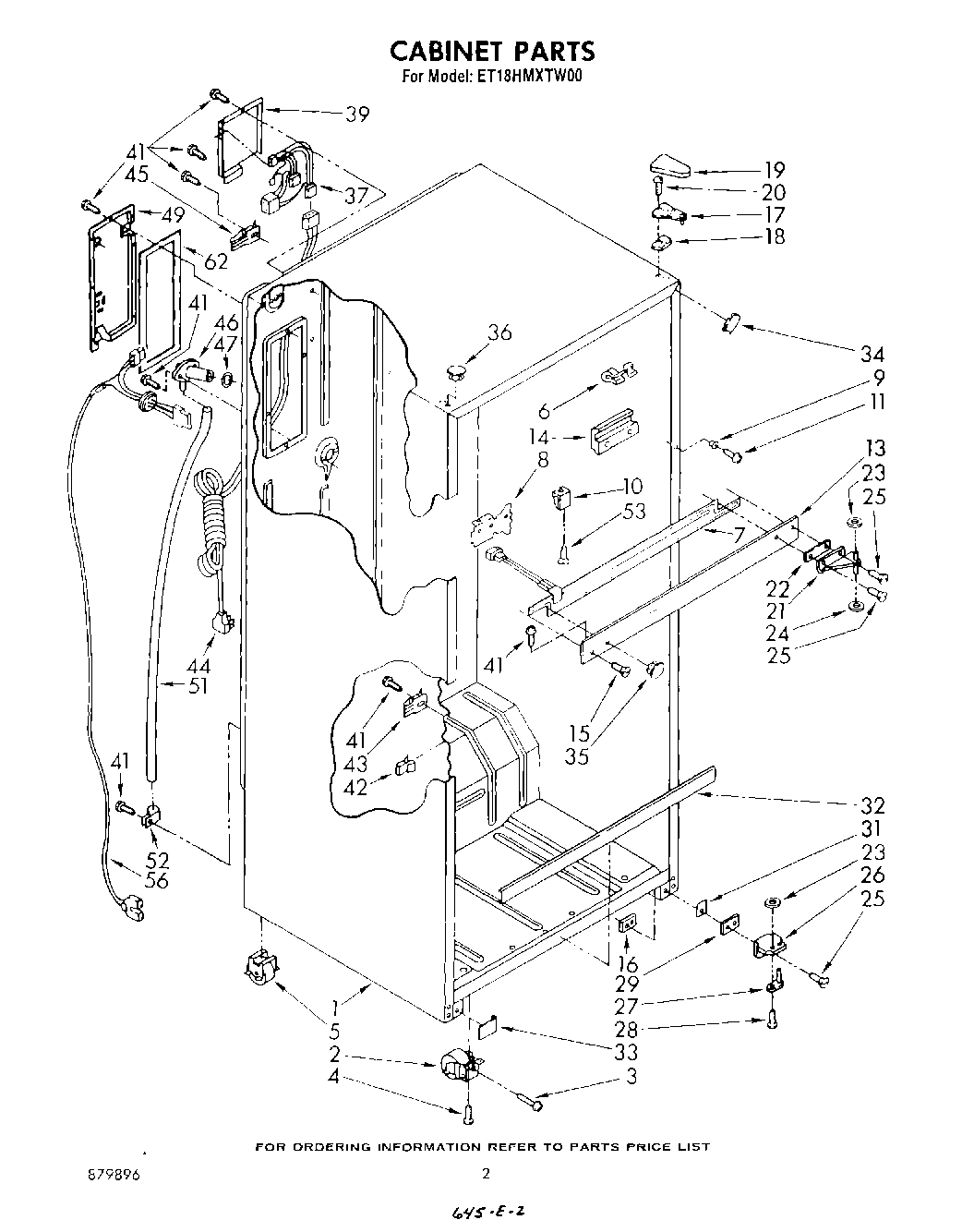

ET18HMXTG00 02 – CABINET

ET18HMXTG00 02 – CABINET

Written by

in

ET18HMXTG00 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller, Front
3Screw, 5/16-24 x 1
4Screw, 10-32 x 1/2
5Roller, Front & Rear (4)
6Breaker, Trim Clip
7Heater, Mullion
8Center Rail, Bracket (2)
9Ferrule, Center Rail
10Spacer (2)
11Screw
13Center Rail (Platinum)
13Center Rail (White)
13Center Rail (Toast)
13Center Rail (Almond)
13Center Rail (Golden Harvest)
14Center, Rail Shim (2)
15Screw
16WPL 944813
17Shim, Hinge Top
18Shim, Hinge
191119787 Whirlpool Refrigerator Hinge Cover
19Hinge Cover (Golden Harvest)
19Hinge Cover (Toast)
20WP999367 Whirlpool Refrigerator Screw
21Hinge, Center
22Shim, Center (Repair)
22Shim, Hinge Center
23WP487802 Whirlpool Refrigerator Washer
24WP488296 Whirlpool Washer Refrigerator
25Screw
25Screw (Repair)
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw 10-32 x 5/16
29Shim, Bottom
31Cover, Glider Rail (Platinum)
31Cover, Glider Rail (Toast)
31Cover, Glider Rail (White)
31Cover, Glider Rail (Golden Harvest)
31Cover, Glider Rail (Almond)
32Cover, Deck Rail (Platinum)
32Cover, Deck Rail (Toast)
32Cover, Deck Rail (Almond)
32Cover, Deck Rail (White)
32Cover, Deck Rail (Golden Harvest)
33Cover, Gl
33WPL 1100682
33WPL 943552
33WPL 944831
33WPL 944833
34WPL 1110688
34WPL 1110687
34WPL 1110686
34WPL 1110684
34WPL 1110685
35WPL 1119711
35WPL 1119710
35WPL 1119708
35Hole Plug (Almond)
35Hole Plug (White)
36Hole Plug (3) (Toast)
36Hole Plug (2) (White)
36Hole Plug (2) (Almond)
36Hole Plug (2) (Golden Harvest)
36Hole Plug (3) (Platinum)
37WPL 942844
39WPL 942845
41WP489069 Whirlpool Compactor Screw
42W10812038 Whirlpool Refrigerator Clip
43549193 Whirlpool Refrigerator Power Clamp
44Cord, Service
45Clamp
46WPL 942813
47WPL 1106507
49WPL 1106511
518316810 Whirlpool Refrigerator Drain Tube
52WPL 519405
53WP489174 Whirlpool Refrigerator Screw
56WP2187501 Whirlpool Refrigerator Wire Harness
62WPL 1106510
