ET18HMXTM01 02 – CABINET

ET18HMXTM01 02 – CABINET

Written by

in

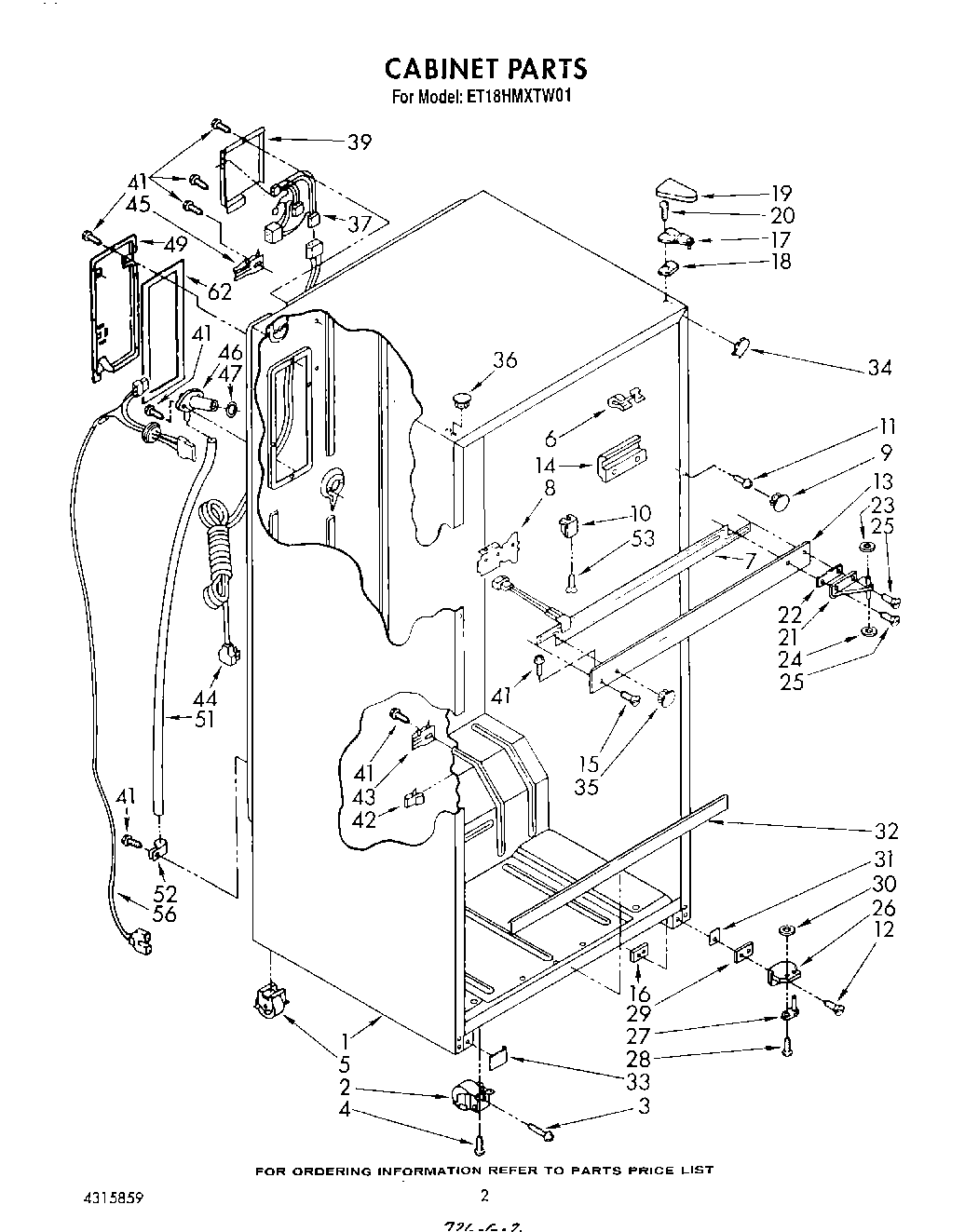

ET18HMXTM01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	Screw, 10-32 x 1/2
5	Roller, Front & Rear (4)
6	Breaker, Trim Clip
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	Hole Plug (2) (Toast)
9	Hole Plug (2) (Platinum)
9	Hole Plug (2) (Golden Harvest)
9	Hole Plug (2) (Almond)
9	Hole Plug (2) (White)
10	Spacer (2)
11	Screw (2)
13	Center Rail (Almond)
13	Center Rail (Golden Harvest)
13	Center Rail (Toast)
13	Center Rail (Platinum)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
16	WPL 944813
17	Shim, Hinge Top
18	Shim, Hinge
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Toast)
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Center (Repair)
22	Shim, Hinge Center
23	WP487802 Whirlpool Refrigerator Washer
24	WP488296 Whirlpool Washer Refrigerator
25	Screw
25	Screw (Repair)
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Platinum)
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (Toast)
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Almond)
32	Cover, Deck Rail (Toast)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Platinum)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (Golden Harvest)
33	WPL 944833
33	Cover, Gl
33	WPL 1100682
33	WPL 943552
33	WPL 944831
34	WPL 1110687
34	WPL 1110686
34	WPL 1110688
34	WPL 1110685
34	WPL 1110684
35	Hole Plug (White)
35	Hole Plug (Almond)
35	WPL 1119708
35	WPL 1119710
35	WPL 1119711
36	Hole Plug (3) (Toast)
36	Hole Plug (2) (White)
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (3) (Platinum)
37	WPL 942844
39	WPL 942845
41	SCREW
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489174 Whirlpool Refrigerator Screw
56	WP2187501 Whirlpool Refrigerator Wire Harness
62	WPL 1106510
