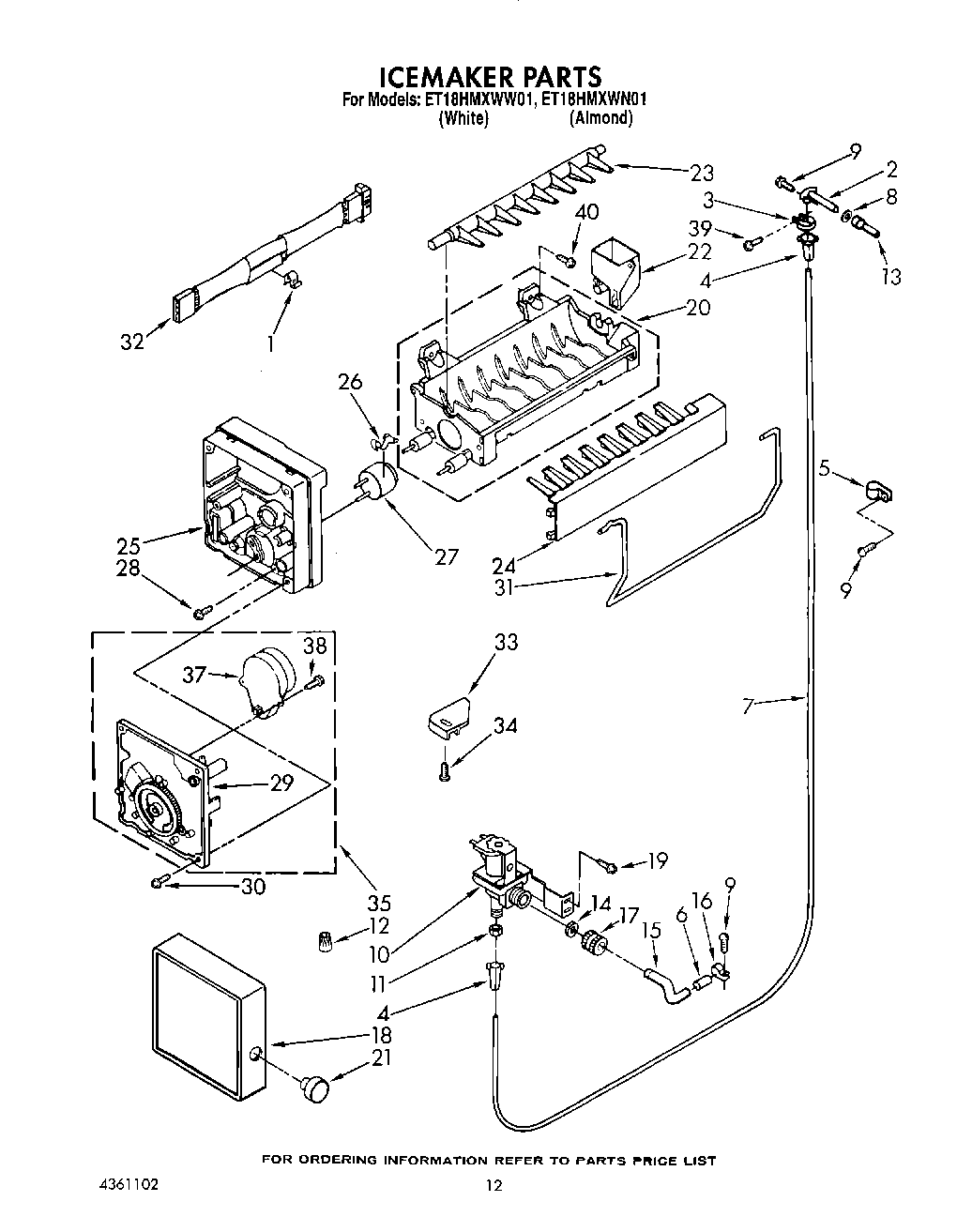

ET18HMXWN01 09 – ICEMAKER, LIT/OPTIONAL

ET18HMXWN01 09 – ICEMAKER, LIT/OPTIONAL

Written by

in

ET18HMXWN01 09 – ICEMAKER, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	Torx Key
	WPL LIT4361102
	WPL LIT628107
	Leveler (Thinner)
	WPL LIT2148174
	WPL LIT2149679
	WPL LIT2148861
	350956 Whirlpool Spray Assembly
	350942 Whirlpool Spray Paint
1	WP628379 Whirlpool Refrigerator Clip
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP488366 Whirlpool Refrigerator Clamp
6	WP2158826 Whirlpool Refrigerator Dampener
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489478 Whirlpool Refrigerator Screw
10	4318047 Whirlpool Water Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Tube, Water Inlet
14	Washer
15	Tube, Inlet Valve
16	Clamp Tube
17	Nut, Valve
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	Knob, Water
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	WP627792 Whirlpool Refrigerator Shut Off Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
34	Screw, 8-32 x 27/64
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
39	Screw, 8-15 x 1/2 (4)
40	Almond (Uncut)
40	72017 Whirlpool Appliance Touch-Up Paint White
40	799344 Whirlpool Refrigerator Paint
40	212643 Whirlpool Refrigerator Permagum Sealer
40	WP488163 Whirlpool Refrigerator Screw
40	WP505587 Whirlpool Refrigerator Sealer
40	TAPE, VINYL (3/4 X 108“)
40	CEMENT, ALUMILASTIC (1 1/4 OZ.)
40	Enamel, Black (1 Qt. Uncut)
40	WPL 799833
40	WPL 876029
40	WP503695 Whirlpool Refrigerator Sealer
40	876370 Whirlpool Refrigerator Insulation
40	833938 Whirlpool Refrigerator Terminal
40	606755 Whirlpool Refrigerator Bag
40	511873 Whirlpool Refrigerator Paint
40	72032 Whirlpool Touch Up Paint Black
40	WP542638 Whirlpool Refrigerator Grease
40	WP72107 Whirlpool Touchup
