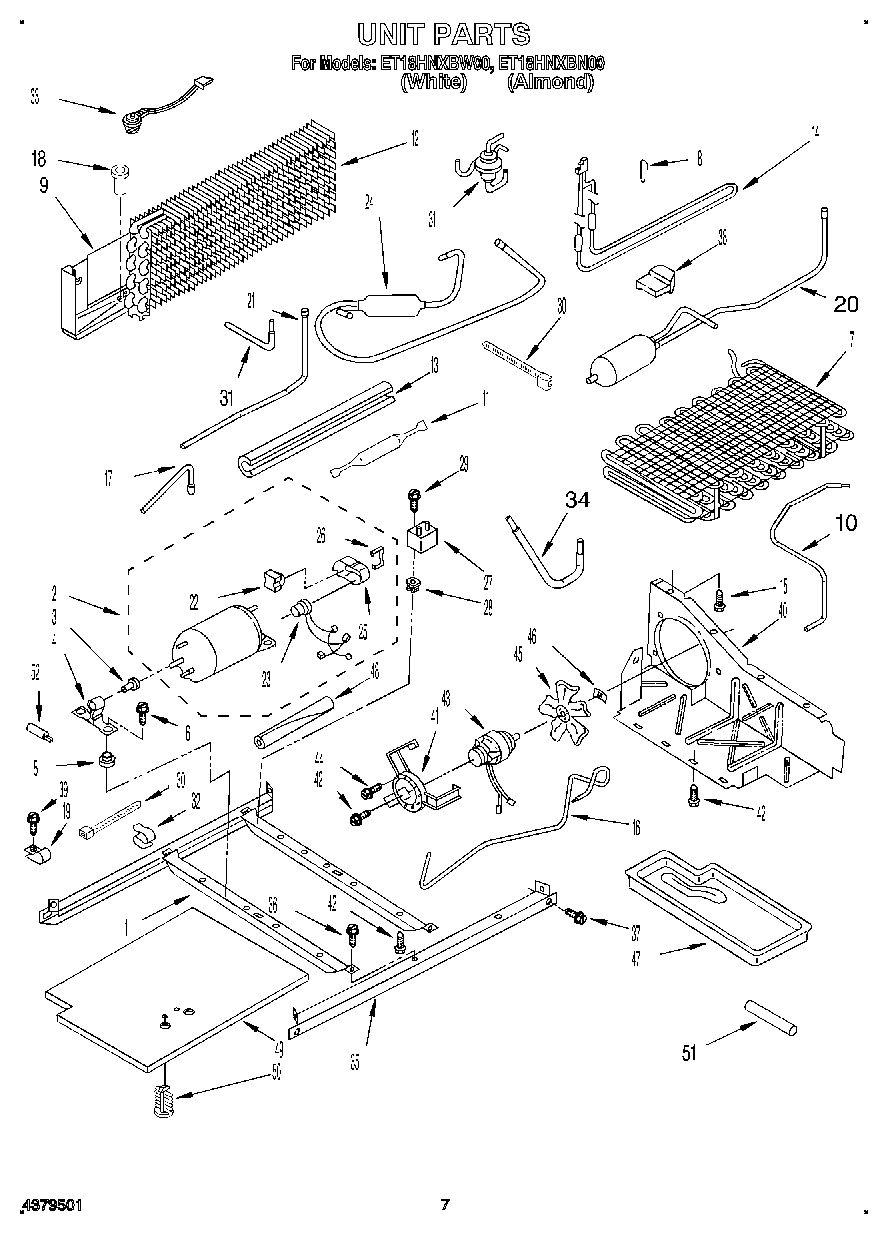

ET18HNXBN00 06 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor KIt Includes Items 22 (23, 25, 26 & 27)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
8	Support, Heater
9	Drain Pan & Heat Shield
10	Tube, Condenser To Fluid Valve
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	WP2002171 Whirlpool Refrigerator Sleeve
14	Heater, Defrost
15	WP489478 Whirlpool Refrigerator Screw
16	Tube, Discharge
17	Tube, Process
18	Drain Fitting
19	Tube Clamp
20	Reservoir Assy.
21	Tube, Reservoir & Heat Exchanger
22	Relay (See Overload)
23	Overload (Service (Includes Relay))
23	Overload (Production (Includes Relay))
24	Muffler
25	Terminal Cover (Service)
26	Strap, Cover
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	WPW10339879 Whirlpool Wire Tie
31	Fluid Control Valve
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34	Tube Fluid Valve To Heat Loop
35	Unit, Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
38	Wedge, Air Baffle
39	WP489128 Whirlpool Refrigerator Screw
40	Air, Baffle
41	Fan, Mounting Bracket
42	WP489464 Whirlpool Refrigerator Screw
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	Sleeve
49	Cover, Unit Bottom
50	489396 Whirlpool Refrigerator Clip
51	Fitting, Drain
52	VALVE, ACCESS (1/2“)
52	978027 Whirlpool Refrigerator Primary Valve
52	978030 Whirlpool Refrigerator Valve
52	VALVE, ACCESS (5/8“)
52	Capacitor, Start
52	WP978025 Whirlpool Refrigerator Valve
52	876764 Whirlpool Refrigerator Primary Valve
52	978026 Whirlpool Refrigerator Primary Valve
