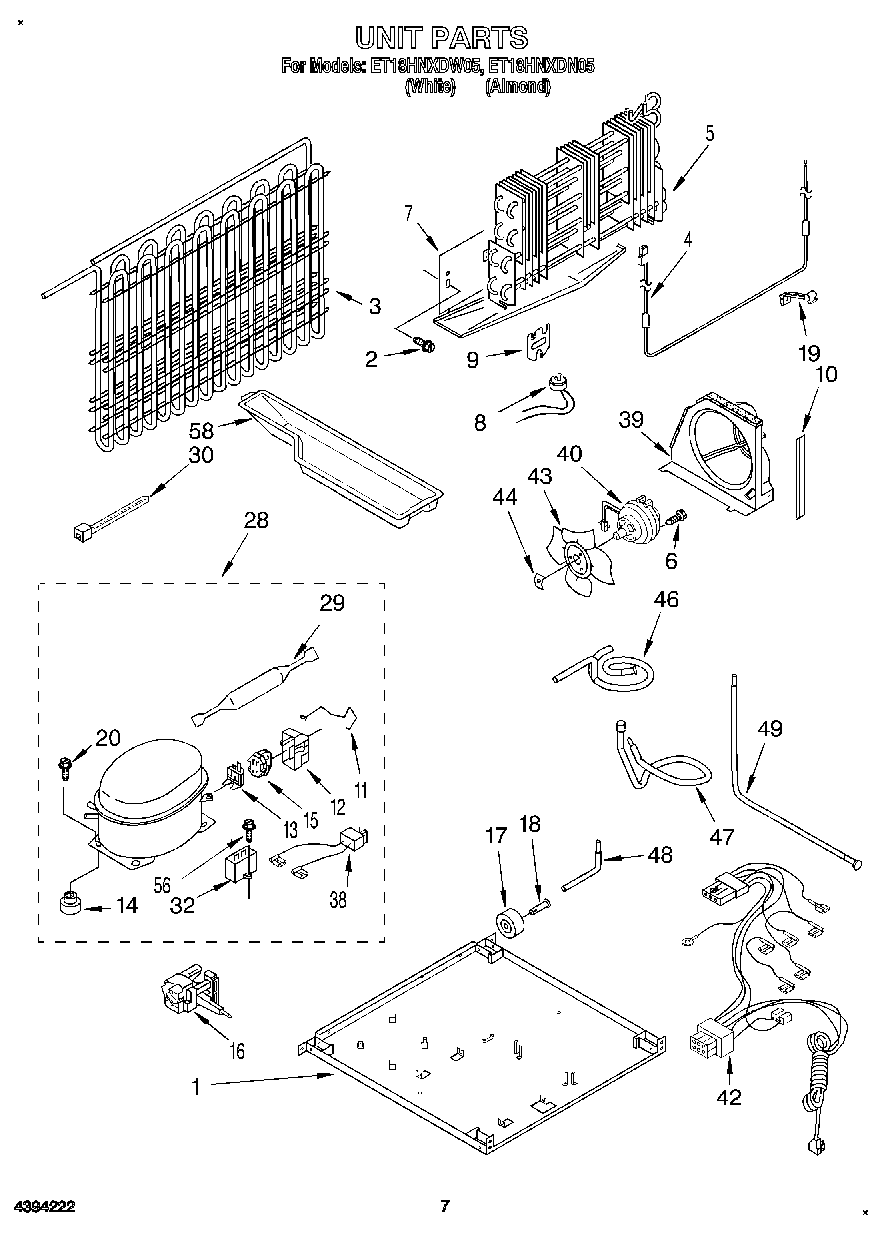

ET18HNXDN05 04 – UNIT

ET18HNXDN05 04 – UNIT

Written by

in

ET18HNXDN05 04 – UNIT

Products

PositionProduct
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6Screw
7Drain Pan
8WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9Bracket, Heater
10Extension, Air Baffle
11Clamp (Production Only)
12WP2162358 Whirlpool Refrigerator Terminal Cover
13Overload (Production (Includes Relay))
134387913 Whirlpool Refrigerator Primary Overload Relay
14876811 Whirlpool Grommet
14W11661108 Whirlpool Grommet
15Relay (See Overload)
16Module
17Roller (2)
18W11594405 Whirlpool Axle
19Clip, Heater
20SCREW
28876765 Whirlpool Primary Mounting Kit Refrigerator
28Installation Kit
28W10309988 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
32Capacitor
38WP2172890 Whirlpool Refrigerator Wire
39Air Baffle
40W10822259 Whirlpool Refrigerator Condenser Fan Motor
42Wire Assy. Unit
43Fan, Blade
44WP486692 Whirlpool Refrigerator Nut
46W10528578 Whirlpool Refrigerator Tube
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
49Tube, Condenser To Heat Loop
56W11693756 Whirlpool Screw Assembly
58Start Kit
58VALVE, ACCESS (5/8“)
58876764 Whirlpool Refrigerator Primary Valve
58Evap. Tray
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58978026 Whirlpool Refrigerator Primary Valve
