ET18HPXDN00 05 – SHELF, LIT/OPTIONAL

ET18HPXDN00 05 – SHELF, LIT/OPTIONAL

Written by

in

ET18HPXDN00 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2182507
Torx Key
WPL LIT677971
WPL LIT2180401
WPL LIT2172667

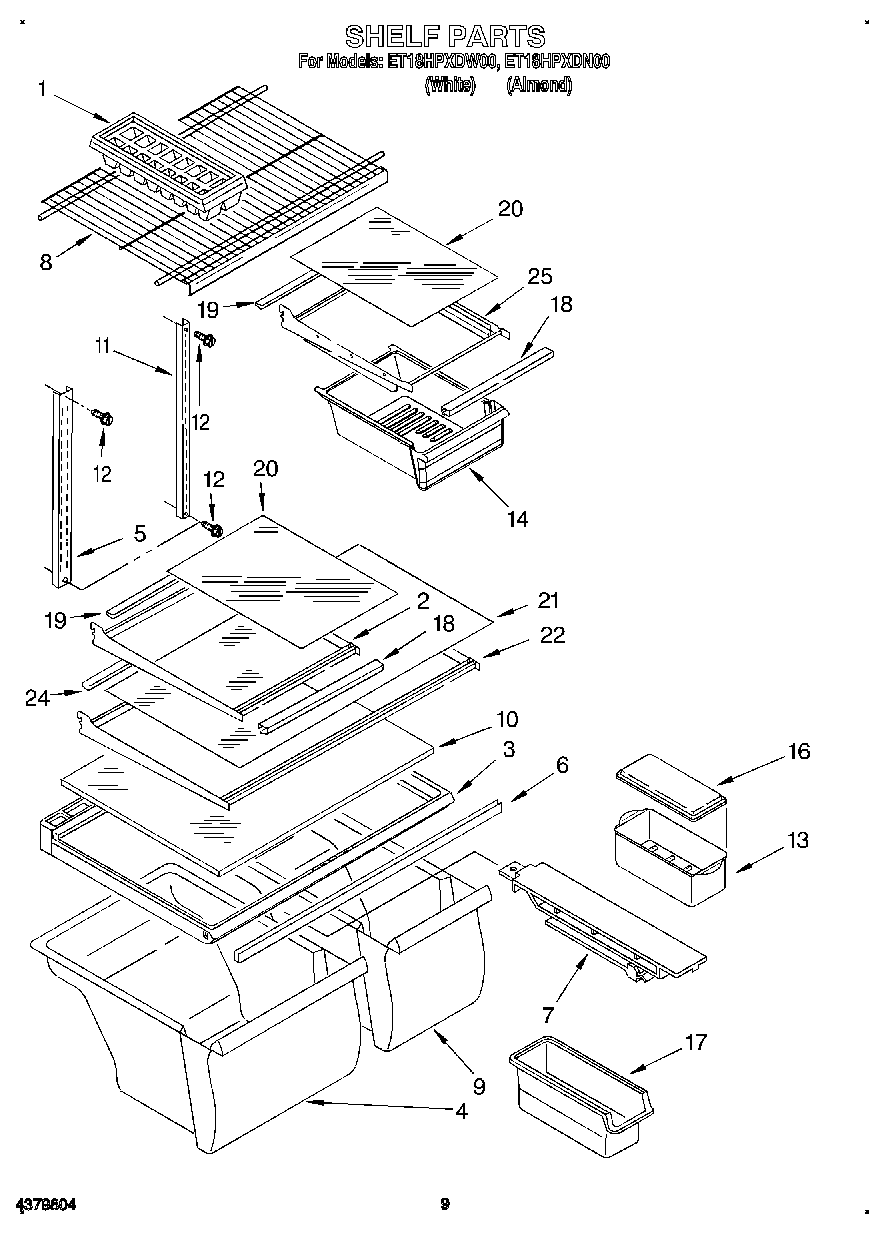

Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1WP841180A Whirlpool Microwave Glass Turntable Tray
2Shelf, Cantilever
3WP2314548 Whirlpool Refrigerator Cover
4W10854037 Whirlpool Refrigerator Crisper Pan
5Shelf, Ladder (2)
6WP2172748 Whirlpool Drawer Support
7WP2163835 Whirlpool Track Assembly
8WP2176275 Whirlpool Refrigerator Wire Shelf
9W10856580 Whirlpool Crisper Pan
10WP2169921 Whirlpool Refrigerator Glass Shelf
11Shelf, Ladder Center
12W11544659 Whirlpool Refrigerator Screw
13W10136387A Whirlpool Refrigerator Egg Container
14PAN-MEAT
16Cover
17WP982704 Whirlpool Refrigerator Container
18Trim, Shelf
19Retainer, Glass
20Glass, Meat Cover
21Glass, Full Shelf
22Shelf, Full Cantilever
24Trim, Shelf Rear
25Almond (Uncut)
25Door Reversal Instructions
25WP72107 Whirlpool Touchup
25799344 Whirlpool Refrigerator Paint
2572017 Whirlpool Appliance Touch-Up Paint White
25350930 Whirlpool White Spray Paint
25212643 Whirlpool Refrigerator Permagum Sealer
25350956 Whirlpool Spray Assembly
25Pan Shelf, Cantilever
25350942 Whirlpool Spray Paint
25511873 Whirlpool Refrigerator Paint
25WPL 799832
25CEMENT, ALUMILASTIC (1 1/4 OZ.)
25TAPE, VINYL (3/4 X 108“)
25WP542638 Whirlpool Refrigerator Grease
25WP505587 Whirlpool Refrigerator Sealer
25285006 Whirlpool Spray
2572032 Whirlpool Touch Up Paint Black
25WP503695 Whirlpool Refrigerator Sealer
25WPL 799833
25876370 Whirlpool Refrigerator Insulation
25833938 Whirlpool Refrigerator Terminal
25606755 Whirlpool Refrigerator Bag
25WPL 876029
