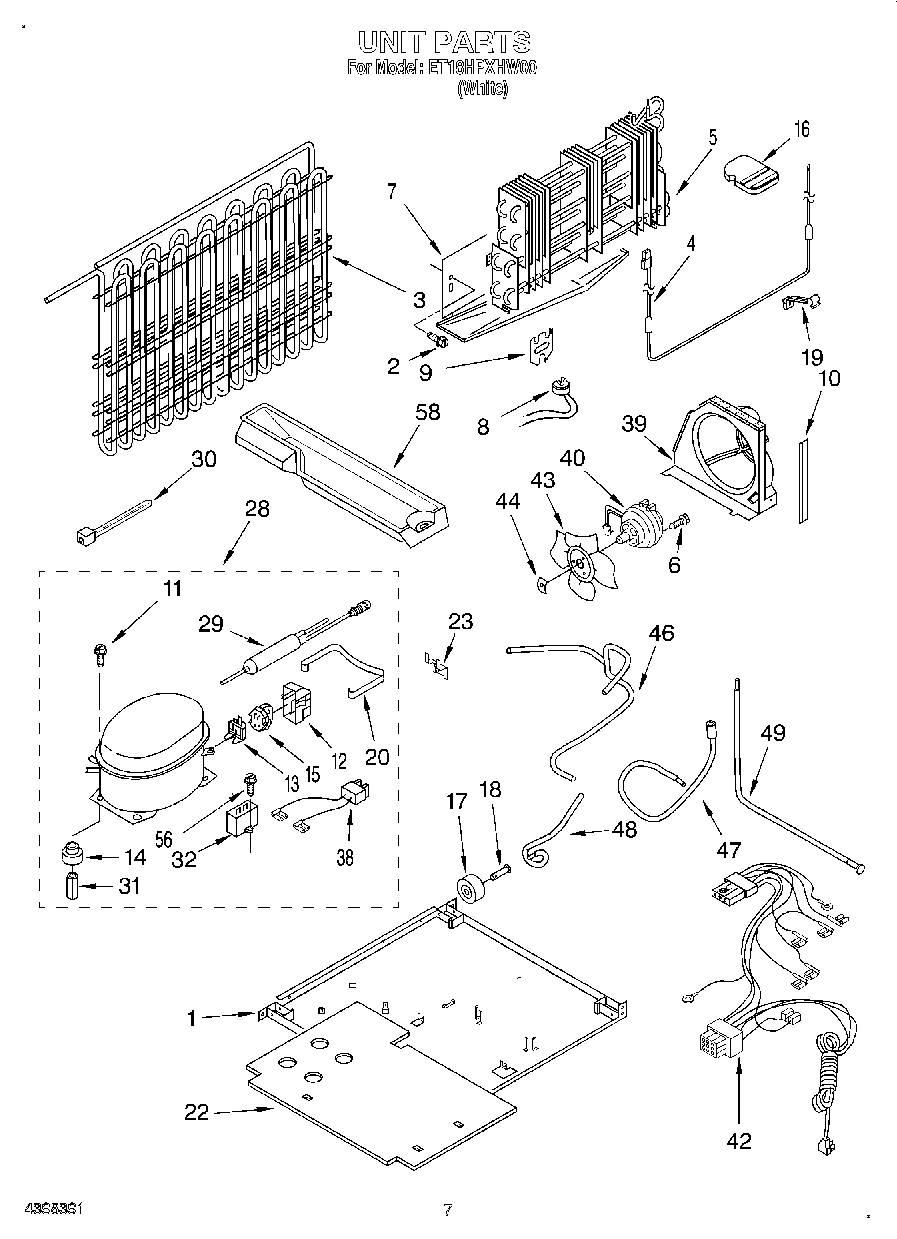

ET18HPXHW00 04 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP489478 Whirlpool Refrigerator Screw
3	Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WP8281196 Whirlpool Screw
7	Drain Pan
8	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9	Bracket, Heater
10	Extension, Air Baffle
12	Case, Relay
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	2183408 Whirlpool Refrigerator Overload
13	4387913 Whirlpool Refrigerator Primary Overload Relay
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	Relay (Production (Service – See Overload))
16	Support Block
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	W11594405 Whirlpool Axle
19	Clip, Heater
20	case spring
22	Cover, Unit
23	Clip, Capacitator
28	Installation Kit
28	W10309988 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	Sleeve (4) (Service Only)
32	WP4387764 Whirlpool Run Capacitor
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
38	WP2172890 Whirlpool Refrigerator Wire
39	Air Baffle
40	W10822259 Whirlpool Refrigerator Condenser Fan Motor
42	Wire Assy. Unit
43	Blade, Fan
44	WP486692 Whirlpool Refrigerator Nut
46	Tube, Discharge
47	Tube, Suction
48	2154109 Whirlpool Refrigerator Tube
49	Tube, Condenser To Heat Loop
56	W11693756 Whirlpool Screw Assembly
58	VALVE, ACCESS (1/2“)
58	978030 Whirlpool Refrigerator Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (5/8“)
58	Evap. Tray
58	Start Kit
58	876764 Whirlpool Refrigerator Primary Valve
58	WP978025 Whirlpool Refrigerator Valve
58	978027 Whirlpool Refrigerator Primary Valve
