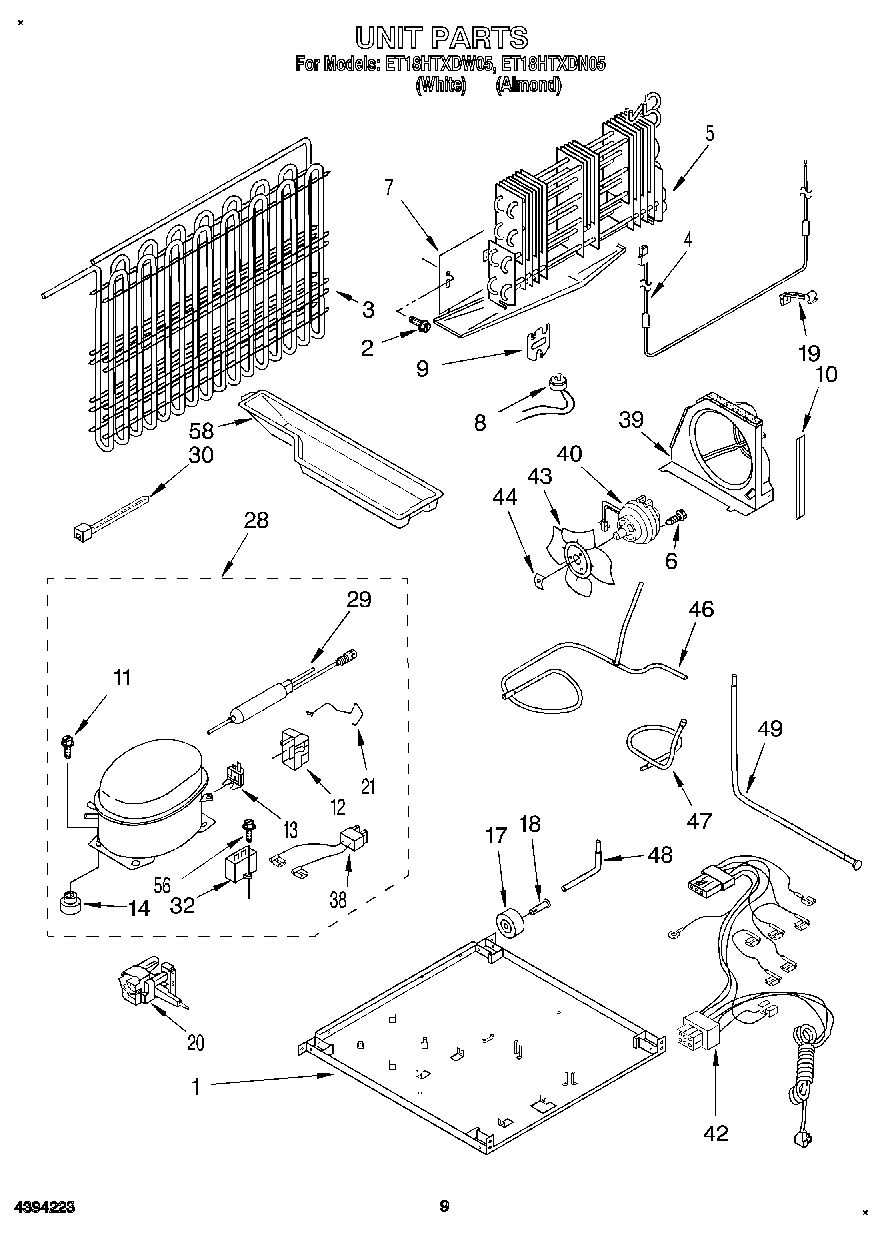

ET18HTXDN05 06 – UNIT, LIT/OPTIONAL

ET18HTXDN05 06 – UNIT, LIT/OPTIONAL

Written by

in

ET18HTXDN05 06 – UNIT, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2184593
	WPL LIT677971
	WPL LIT2172667
	WPL LIT2182508
1	Plate, Unit Mounting
2	WP489478 Whirlpool Refrigerator Screw
3	Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	Screw
7	Drain Pan
8	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9	Bracket, Heater
10	Extension, Air Baffle
11	SCREW
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	4387913 Whirlpool Refrigerator Primary Overload Relay
13	Overload (Production (Includes Relay))
14	W11661108 Whirlpool Grommet
14	876811 Whirlpool Grommet
17	Roller (2)
18	W11594405 Whirlpool Axle
19	Clip, Heater
20	Module
21	Clamp (Production Only)
28	W10309988 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Installation Kit
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	Capacitor
38	WP2172890 Whirlpool Refrigerator Wire
39	Air Baffle
40	W10822259 Whirlpool Refrigerator Condenser Fan Motor
42	Wire Assy. Unit
43	Fan, Blade
44	WP486692 Whirlpool Refrigerator Nut
46	Tube, Discharge
47	Tube, Suction
48	2154109 Whirlpool Refrigerator Tube
49	Tube, Condenser To Heat Loop
56	W11693756 Whirlpool Screw Assembly
58	350956 Whirlpool Spray Assembly
58	876370 Whirlpool Refrigerator Insulation
58	350930 Whirlpool White Spray Paint
58	72017 Whirlpool Appliance Touch-Up Paint White
58	799344 Whirlpool Refrigerator Paint
58	Evap. Tray
58	Start Kit
58	WP72107 Whirlpool Touchup
58	Door Reversal Instructions
58	Almond (Uncut)
58	285006 Whirlpool Spray
58	TAPE, VINYL (3/4 X 108“)
58	VALVE, ACCESS (1/2“)
58	WP978025 Whirlpool Refrigerator Valve
58	978030 Whirlpool Refrigerator Valve
58	WP542638 Whirlpool Refrigerator Grease
58	978027 Whirlpool Refrigerator Primary Valve
58	WP505587 Whirlpool Refrigerator Sealer
58	978026 Whirlpool Refrigerator Primary Valve
58	876764 Whirlpool Refrigerator Primary Valve
58	833938 Whirlpool Refrigerator Terminal
58	WPL 799832
58	VALVE, ACCESS (5/8“)
58	CEMENT, ALUMILASTIC (1 1/4 OZ.)
58	212643 Whirlpool Refrigerator Permagum Sealer
58	350942 Whirlpool Spray Paint
58	72032 Whirlpool Touch Up Paint Black
58	511873 Whirlpool Refrigerator Paint
58	606755 Whirlpool Refrigerator Bag
58	WPL 876029
58	WPL 799833
58	WP503695 Whirlpool Refrigerator Sealer
