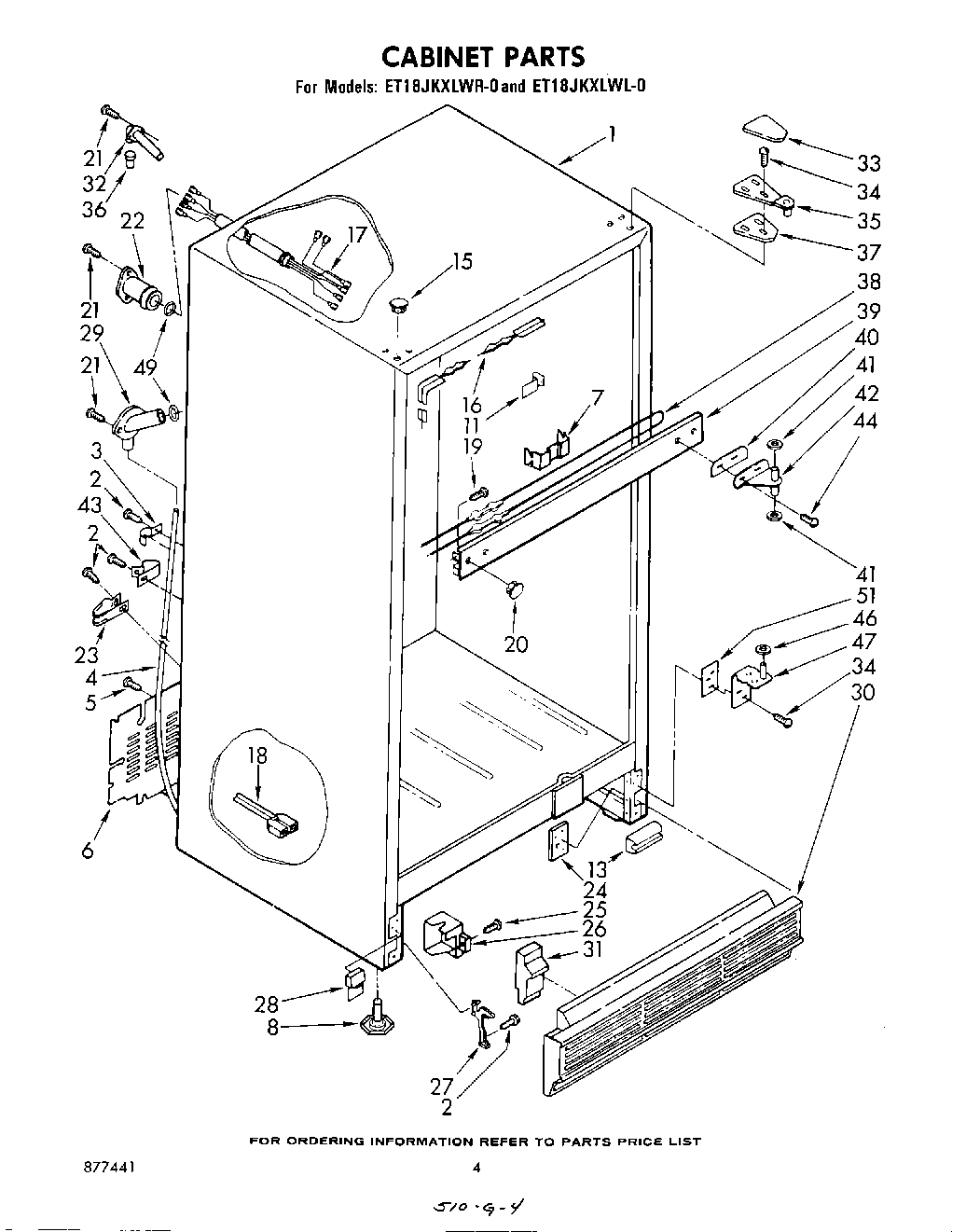

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | W11624204 Whirlpool Screw |
| 3 | WPL 836077 |
| 4 | 8316810 Whirlpool Refrigerator Drain Tube |
| 6 | Cover |
| 7 | WPL 942478 |
| 8 | Leveler (2) |
| 11 | WPL 935663 |
| 13 | Bumper, Grille |
| 15 | Hole Plug (2) (Golden Harvest) |
| 15 | Hole Plug (Coffee) |
| 15 | Hole Plug (2) (White) |
| 15 | Hole Plug (New Avocado) |
| 15 | Hole Plug (2) (Almond) |
| 16 | Heater, Stile |
| 17 | Cabinet Wiring Assembly |
| 18 | WPL 548734 |
| 19 | Screw (Repair) |
| 19 | Screw, 8 x 3/8 |
| 20 | Hole, Plug (Almond) |
| 20 | Hole Plug (Coffee) |
| 20 | Hole Plug (Golden Harvest) |
| 20 | Hole Plug (New Avocado) |
| 20 | Hole, Plug (White) |
| 21 | WP98165 Whirlpool Screw |
| 22 | Tunnel, Wiring |
| 23 | Clamp |
| 24 | Tap Plate |
| 25 | WP488729 Whirlpool Refrigerator Door Screw |
| 26 | WPL 549947 |
| 27 | WPL 844614 |
| 28 | Fill, Grille |
| 29 | Drain Fitting |
| 30 | Grille |
| 31 | WPL 836372 |
| 32 | WP2196157 Whirlpool Fill Tube |
| 33 | Hinge Cover (Golden Harvest) |
| 33 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 33 | Hinge, Cover (Coffee) |
| 33 | Hinge Cover (New Avocado) |
| 34 | WP999367 Whirlpool Refrigerator Screw |
| 35 | Hinge, Top |
| 36 | WP487996 Whirlpool Refrigerator Cap Tube |
| 37 | WPL 836151 |
| 38 | WPL 941681 |
| 39 | WPL 989191 |
| 39 | WPL 989907 |
| 39 | WPL 989906 |
| 39 | WPL 989905 |
| 39 | WPL 836066 |
| 40 | Shim, Hinge Center |
| 41 | WP488296 Whirlpool Washer Refrigerator |
| 42 | Hinge, Center |
| 43 | Clamp, Cord (2) |
| 44 | Screw (Repair) |
| 46 | WP487802 Whirlpool Refrigerator Washer |
| 47 | Hinge (Bottom) |
| 47 | WPL 836687 |
| 49 | Gasket, Seal |
| 51 | Shim, Bottom Hinge |
