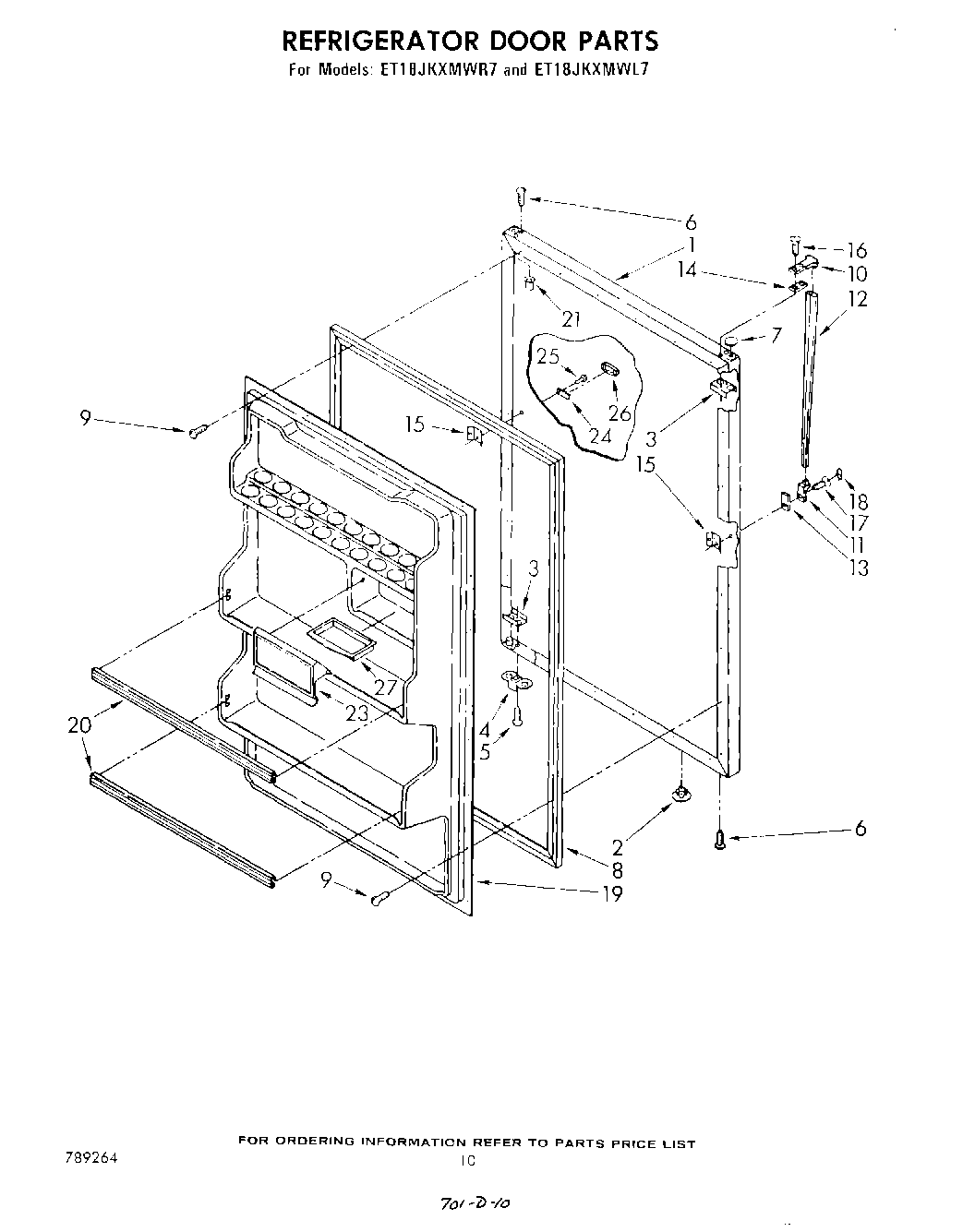

ET18JKXMWR7 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

ET18JKXMWR7 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

ET18JKXMWR7 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
Golden Harvest
Paint, Spray (13 Oz.) (Platinum)
WPL LIT1105320
285006 Whirlpool Spray
Toast
WPL LIT946415
Leveler (Thinner)
WPL LIT1101603
350942 Whirlpool Spray Paint
WPL LIT789264
350956 Whirlpool Spray Assembly
1Panel, Refrigerator Door (Almond)
1Panel, Refrigerator Door (Toast)
1Panel, Refrigerator Door (Golden Harvest)
1Panel, Refrigerator Door (White)
1Panel, Refrigerator Door (Platinum)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hole Plug (Toast)
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Platinum)
8Door Gasket, Magnetic
8Door Gasket, Magnetic
9SCREW
9WP489069 Whirlpool Compactor Screw
10819342 Whirlpool Refrigerator Endcap Kit
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center (For Platinum Model Only)
12Handle, Center
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel (For Platinum Model Only)
19Interior Door Panel
20Trim, Door (2)
21Cap, Hinge Sleeve (2)
23WPL 946998
24Clip, Medallion
26Medallion (Almond)
26Medallion (Platinum)
26Medallion (Toast)
26Medallion (White)
26Medallion (Golden Harvest)
2772032 Whirlpool Touch Up Paint Black
27WPL 72112
27Platinum (Uncut)
2772113 Whirlpool Touch-Up Paint
27Enamal, Toast (1 Qt. Uncut)
27Golden Harvest (Uncut)
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27Almond (Uncut)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27212643 Whirlpool Refrigerator Permagum Sealer
27511873 Whirlpool Refrigerator Paint
27WPL 876029
27Silicone (Spray)
27WPL 799833
27WPL 799832
27TAPE, VINYL (3/4 X 108“)
27WP542638 Whirlpool Refrigerator Grease
27WP505587 Whirlpool Refrigerator Sealer
27WP503695 Whirlpool Refrigerator Sealer
27876370 Whirlpool Refrigerator Insulation
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
27606755 Whirlpool Refrigerator Bag
27833938 Whirlpool Refrigerator Terminal
