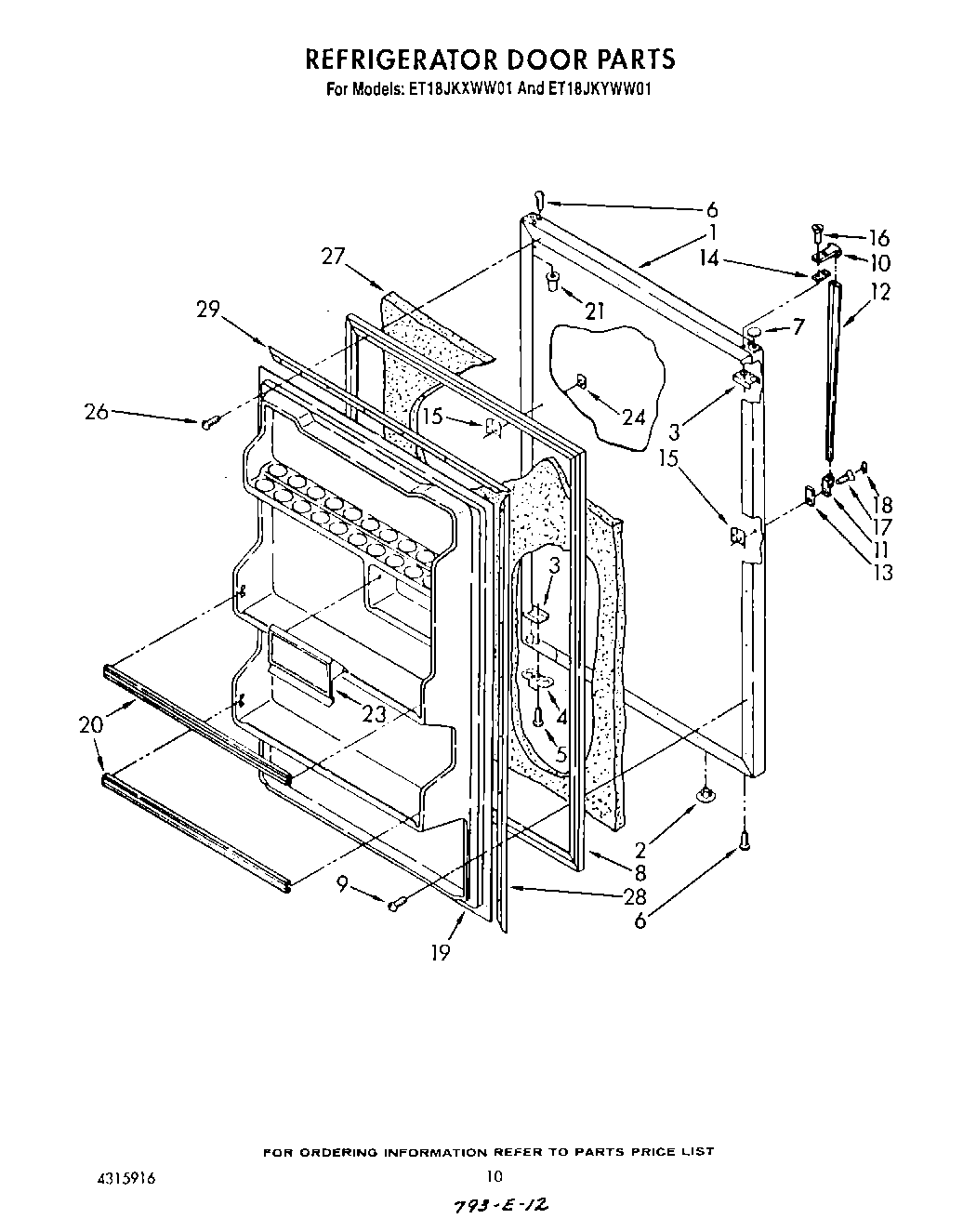

ET18JKXWF01 08 – REFRIGERATOR DOOR , LIT/OPTIONAL

ET18JKXWF01 08 – REFRIGERATOR DOOR , LIT/OPTIONAL

Written by

in

ET18JKXWF01 08 – REFRIGERATOR DOOR , LIT/OPTIONAL

Products

Position	Product
	WPL LIT1124779
	Torx Key
	WPL LIT4315916
	WPL LIT1127724
	WPL LIT1120604
1	Panel, Refrigerator Door (Almond)
1	Panel, Refrigerator Door (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
6	Screw (Repair)
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	819342 Whirlpool Refrigerator Endcap Kit
12	Handle, Center
13	Shim, Handle End
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
16	Screw (Repair)
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
20	Trim, Door (2)
21	Cap, Hinge Sleeve (2)
23	Compartment Door, Butter
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
28	Gasket Retainer, Side (2)
29	WP72107 Whirlpool Touchup
29	799344 Whirlpool Refrigerator Paint
29	Gasket Retainer, Top & Bottom (2)
29	350930 Whirlpool White Spray Paint
29	72017 Whirlpool Appliance Touch-Up Paint White
29	TAPE, VINYL (3/4 X 108“)
29	350956 Whirlpool Spray Assembly
29	Leveler (Thinner)
29	285006 Whirlpool Spray
29	WP503695 Whirlpool Refrigerator Sealer
29	WP505587 Whirlpool Refrigerator Sealer
29	WP542638 Whirlpool Refrigerator Grease
29	833938 Whirlpool Refrigerator Terminal
29	WPL 799833
29	WPL 876029
29	606755 Whirlpool Refrigerator Bag
29	511873 Whirlpool Refrigerator Paint
29	350942 Whirlpool Spray Paint
29	212643 Whirlpool Refrigerator Permagum Sealer
29	72032 Whirlpool Touch Up Paint Black
29	CEMENT, ALUMILASTIC (1 1/4 OZ.)
29	Almond (Uncut)
29	876370 Whirlpool Refrigerator Insulation
