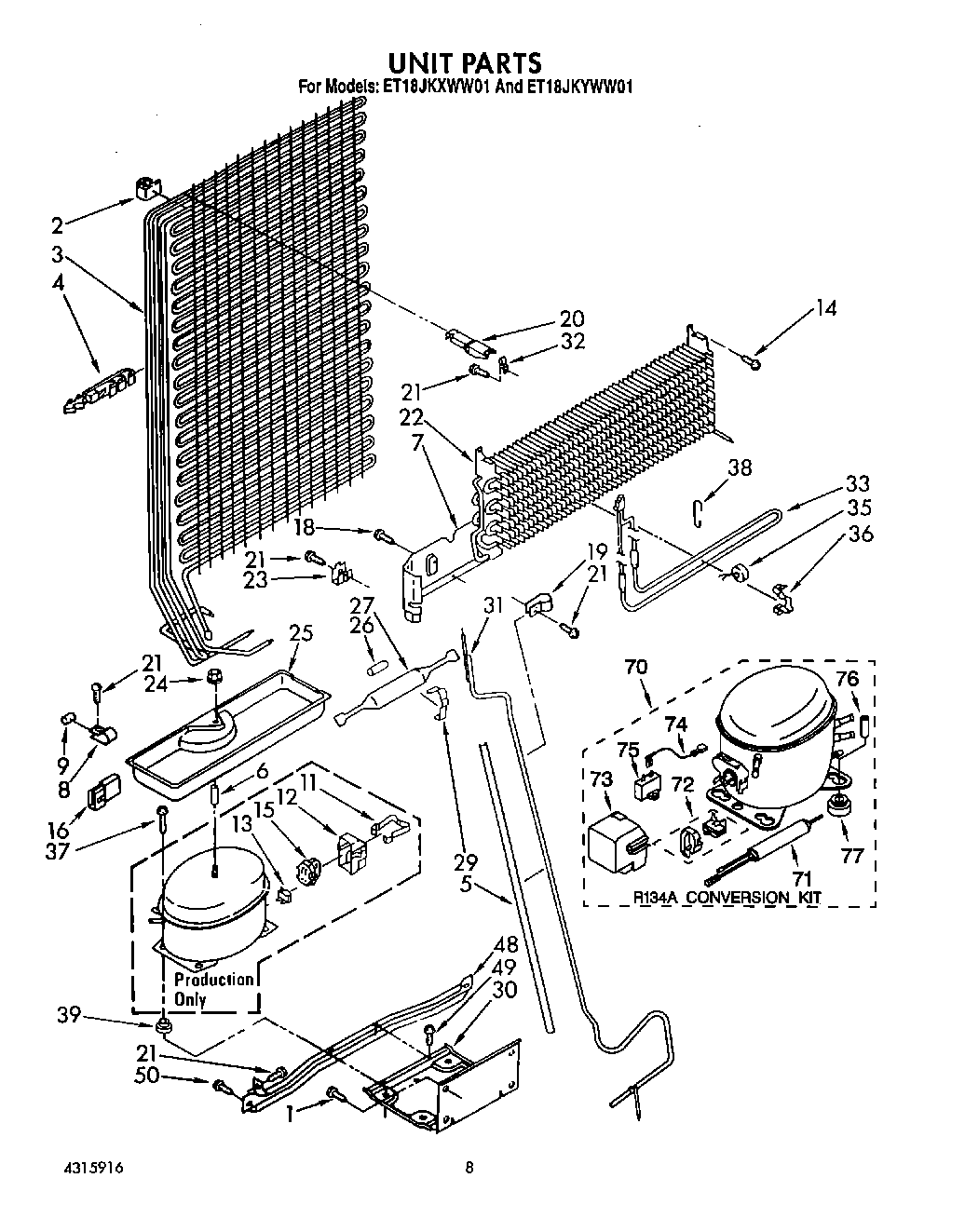

ET18JKXWG01 07 – UNIT

Products

Position	Product
1	WP489069 Whirlpool Compactor Screw
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
11	Strap
12	Cover
13	Overload
14	WP489174 Whirlpool Refrigerator Screw
15	WP2262181 Whirlpool Refrigerator Start Relay
16	WP717253 Whirlpool Dishwasher Connector
19	Tube, Clamp
20	Condenser, Stand-Off
21	SCREW
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
26	Restrictor Sleeve
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
38	Support, Heater
39	876811 Whirlpool Grommet
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
70	Installation Kit
70	876765 Whirlpool Primary Mounting Kit Refrigerator
71	W10843121 Whirlpool Refrigerator Tube
72	OVERLOAD
73	WP2162358 Whirlpool Refrigerator Terminal Cover
74	WP2172890 Whirlpool Refrigerator Wire
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	VALVE, ACCESS (5/8“)
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
77	978027 Whirlpool Refrigerator Primary Valve
77	876764 Whirlpool Refrigerator Primary Valve
77	VALVE, ACCESS (1/2“)
77	WP978025 Whirlpool Refrigerator Valve
77	978030 Whirlpool Refrigerator Valve
77	978026 Whirlpool Refrigerator Primary Valve
