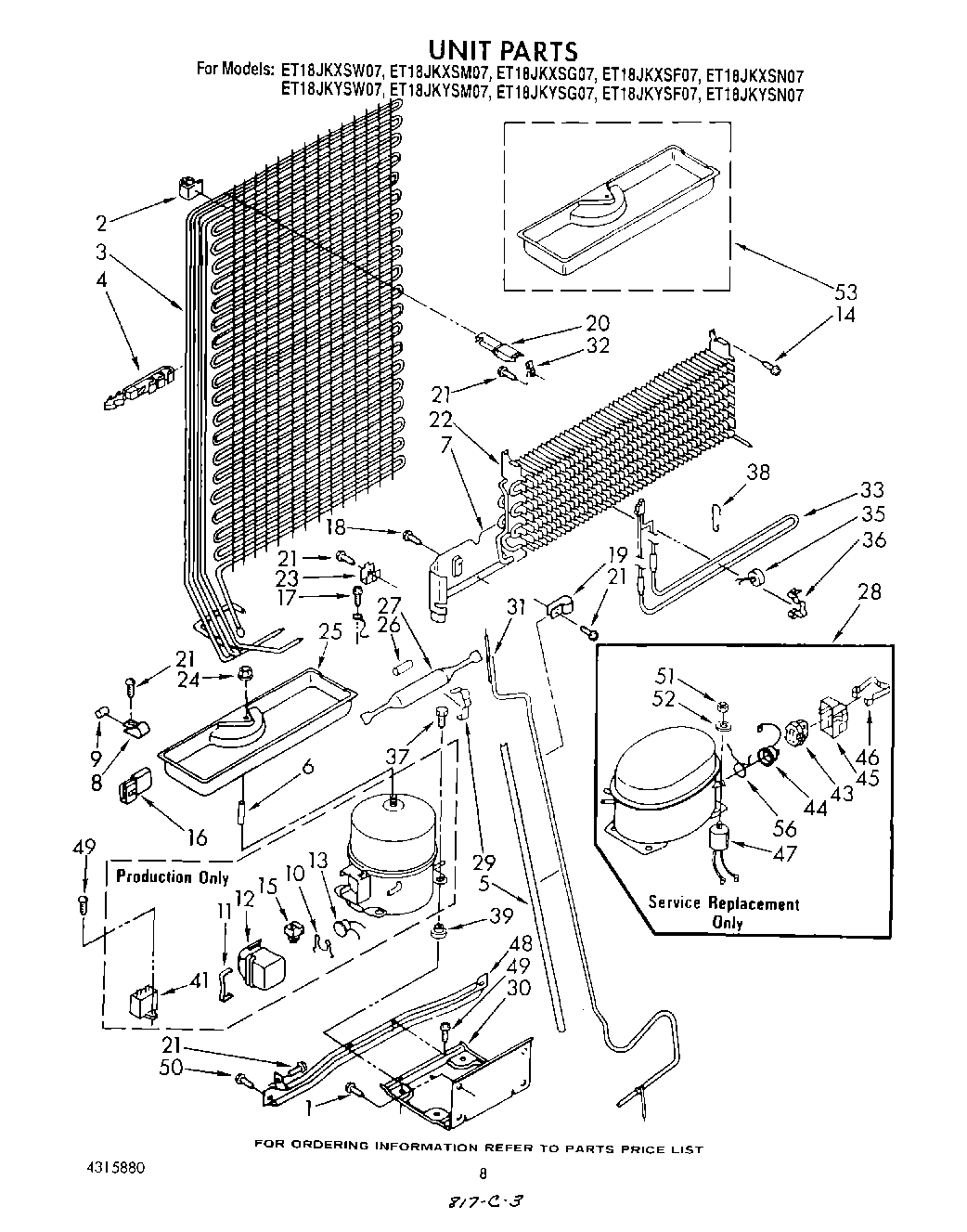

ET18JKYSW07 07 – UNIT

Products

Position	Product
1	WP489069 Whirlpool Compactor Screw
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
10	Spring, Overload
11	case spring
12	Case, Relay
13	Overload
14	WP489174 Whirlpool Refrigerator Screw
15	Relay
16	WP717253 Whirlpool Dishwasher Connector
17	303776 Whirlpool Dishwasher Screw
19	Tube, Clamp
20	Condenser, Stand-Off
21	SCREW
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
38	Support, Heater
39	876811 Whirlpool Grommet
41	WPW10662129 Whirlpool Refrigerator Run Capacitor
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
51	Nut
52	Washer
53	Evaporator Tray
56	VALVE, ACCESS (5/8“)
56	978026 Whirlpool Refrigerator Primary Valve
56	978027 Whirlpool Refrigerator Primary Valve
56	978030 Whirlpool Refrigerator Valve
56	WP978025 Whirlpool Refrigerator Valve
56	VALVE, ACCESS (1/2“)
56	876764 Whirlpool Refrigerator Primary Valve
56	Overload Spring
