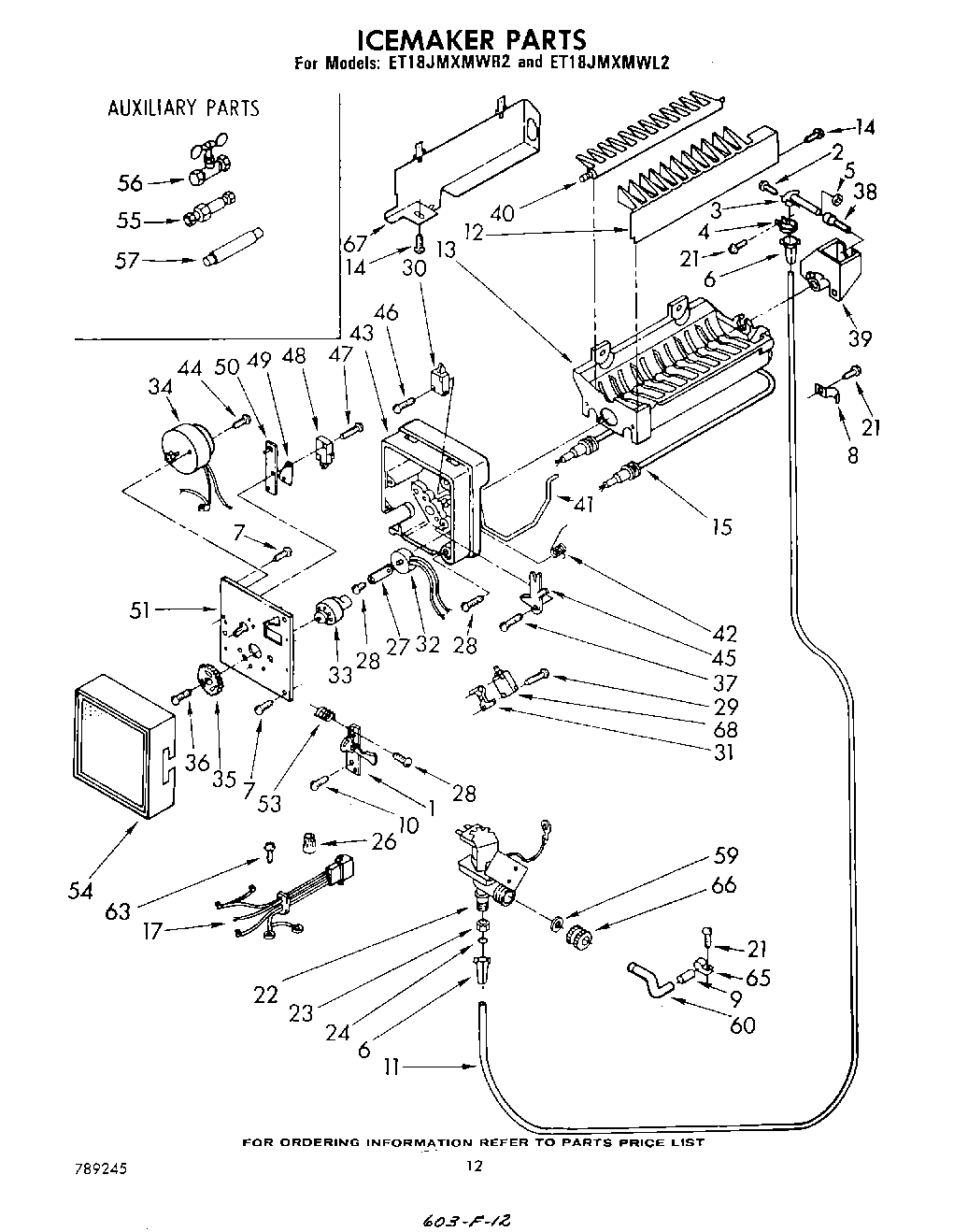

ET18JMXMWR2 09 – ICE MAKER , NOT ILLUSTRATED AND OPTIONAL

ET18JMXMWR2 09 – ICE MAKER , NOT ILLUSTRATED AND OPTIONAL

Written by

in

ET18JMXMWR2 09 – ICE MAKER , NOT ILLUSTRATED AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Toast
Paint, Spray (13 Oz.) (Platinum)
Leveler (Thinner)
285006 Whirlpool Spray
paint, spray 13 oz. (coffee)
350942 Whirlpool Spray Paint
350956 Whirlpool Spray Assembly
Golden Harvest
1Lever & Plate Assembly
2WP98165 Whirlpool Screw
3WP2196157 Whirlpool Fill Tube
4WP488878 Whirlpool Refrigerator Tube Clamp
5WP1106508 Whirlpool Refrigerator Gasket
64387491 Whirlpool Refrigerator Insert
7WP488787 Whirlpool Refrigerator Screw
8WP488366 Whirlpool Refrigerator Clamp
9WP2158826 Whirlpool Refrigerator Dampener
10Screw (Use W/Motor 627106)
11W10823511 Whirlpool Refrigerator Water Tube
12Stripper, Ice
13Mold & Heater Assembly (Includes Illus. 15)
14Screw, 8-16 x 3/8
15Heater, Mold
17WPL 627750
21WP489069 Whirlpool Compactor Screw
224318047 Whirlpool Water Valve
23WP627018 Whirlpool Refrigerator Nut
24“O“ Ring Seal (4)
26Wire Connector
27Clamp, Thermostat
28Screw, 8-32 x 1
30Switch, S.P.D.T. (2)
31Spacer, Switch (2)
32Thermostat
33Cam
34Motor
35Gear
36Screw
37Screw, Shoulder
38Tube, Water Inlet
39Beraing & Inlet
40Ejector
41Arm, Shut-Off
42Spring, Shut-Off Arm
43Support
44Screw, 4-40 x 1
45Lever, Arm
46Screw, 4-24 x 3/4
47Screw
48Switch, S.P.S.T.
49Insulator
50Plate, Valve Switch
51Plate, Mounting
53Spring
54Cover
54Cover
55Union, 1/4“ x 3/16“
56Valve, Shut-Off
57Filter Kit
59WP16123 Whirlpool Washer
60Tube, Inlet Valve
63Screw, Ground
65Clamp Tube
66Nut, Valve
67Shield, Heat
68WP72107 Whirlpool Touchup
68WPL 789245
68Switch, S.P.D.T.
68Enamal, Toast (1 Qt. Uncut)
6872113 Whirlpool Touch-Up Paint
68WPL 1101011
68WPL 1101603
6872017 Whirlpool Appliance Touch-Up Paint White
68Golden Harvest (Uncut)
6872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
68Almond (Uncut)
68799344 Whirlpool Refrigerator Paint
68Care & Use Guide
68Platinum (Uncut)
68WPL 72112
68Paint, Touch-Up 1/2 Oz. (Coffee)
6872109 Whirlpool Dacor Avocado Touch-Up Paint
6872032 Whirlpool Touch Up Paint Black
68WPL 876029
68WPL 799833
68WPL 799832
68Enamel, Coffee (1 Qt. Uncut)
68CEMENT, ALUMILASTIC (1 1/4 OZ.)
68TAPE, VINYL (3/4 X 108“)
68WP542638 Whirlpool Refrigerator Grease
68WP505587 Whirlpool Refrigerator Sealer
68WP503695 Whirlpool Refrigerator Sealer
68876370 Whirlpool Refrigerator Insulation
68833938 Whirlpool Refrigerator Terminal
68606755 Whirlpool Refrigerator Bag
68511873 Whirlpool Refrigerator Paint
68212643 Whirlpool Refrigerator Permagum Sealer
68Silicone (Spray)
