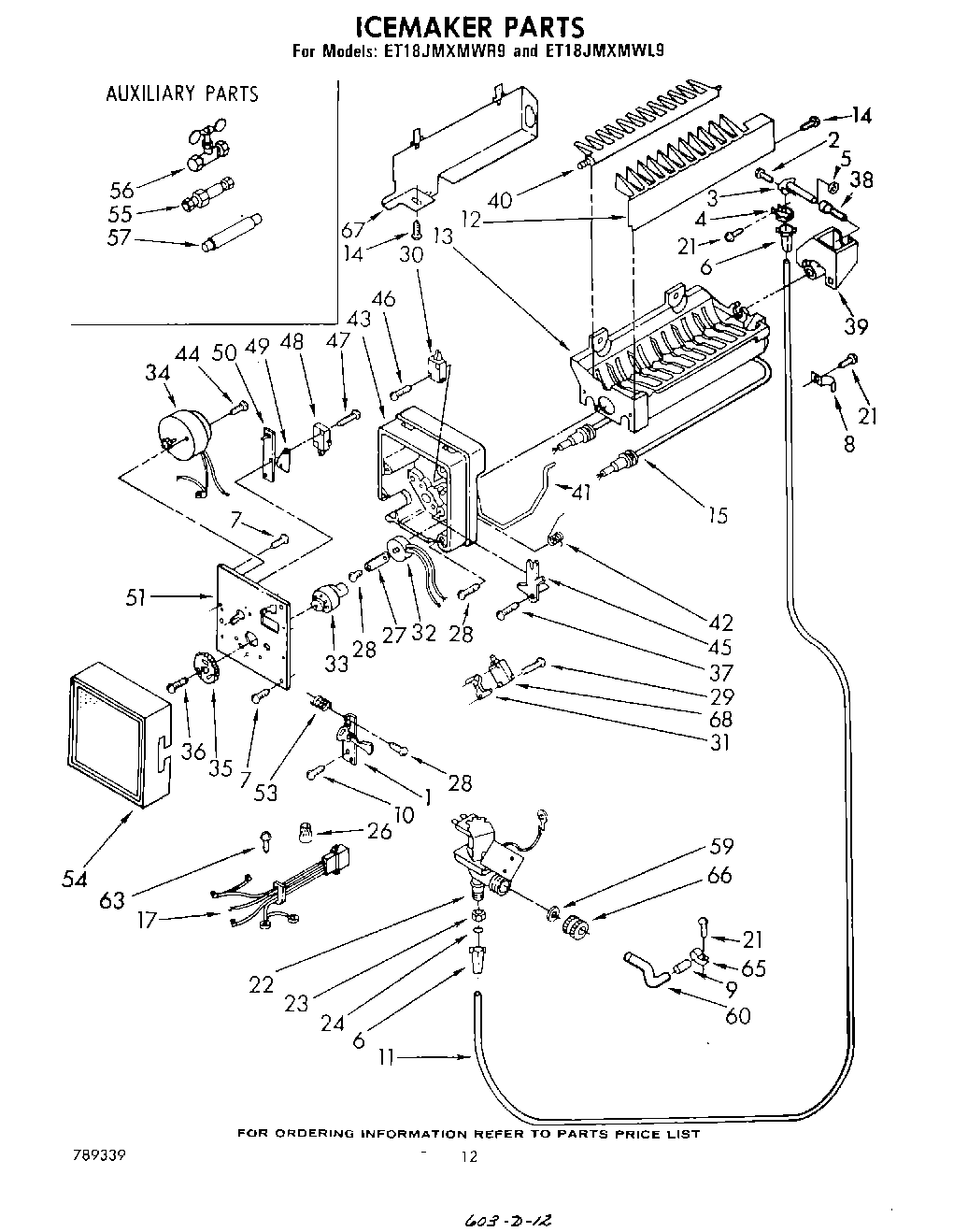

ET18JMXMWR9 09 – ICE MAKER , NOT ILLUSTRATED AND OPTIONAL

ET18JMXMWR9 09 – ICE MAKER , NOT ILLUSTRATED AND OPTIONAL

Written by

in

ET18JMXMWR9 09 – ICE MAKER , NOT ILLUSTRATED AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT1105320
WPL LIT789339
285006 Whirlpool Spray
Toast
paint, spray 13 oz. (coffee)
Golden Harvest
WPL 677813
WPL 677818
WPL 677821
350956 Whirlpool Spray Assembly
WPL LIT1100795
350942 Whirlpool Spray Paint
WPL LIT1101603
WPL 677971
Leveler (Thinner)
WPL 677967
Paint, Spray (13 Oz.) (Platinum)
1Lever & Plate Assembly
2WP98165 Whirlpool Screw
3WP2196157 Whirlpool Fill Tube
4WP488878 Whirlpool Refrigerator Tube Clamp
5WP1106508 Whirlpool Refrigerator Gasket
64387491 Whirlpool Refrigerator Insert
7WP488787 Whirlpool Refrigerator Screw
8WP488366 Whirlpool Refrigerator Clamp
9WP2158826 Whirlpool Refrigerator Dampener
10Screw (Use W/Motor 627106)
11W10823511 Whirlpool Refrigerator Water Tube
12Stripper, Ice
13Mold & Heater Assembly (Includes Illus. 15)
14Screw, 8-16 x 3/8
15Heater, Mold
17WPL 627750
21WP489069 Whirlpool Compactor Screw
224318047 Whirlpool Water Valve
23WP627018 Whirlpool Refrigerator Nut
24“O“ Ring Seal (4)
26Wire Connector
27Clamp, Thermostat
28Screw, 8-32 x 1
30Switch, S.P.D.T. (2)
31Spacer, Switch (2)
32Thermostat
33Cam
34Motor
35Gear
36Screw
37Screw, Shoulder
38Tube, Water Inlet
39Beraing & Inlet
40Ejector
41Arm, Shut-Off
42Spring, Shut-Off Arm
43Support
44Screw, 4-40 x 1
45Lever, Arm
46Screw, 4-24 x 3/4
47Screw
48Switch, S.P.S.T.
49Insulator
50Plate, Valve Switch
51Plate, Mounting
53Spring
54Cover
54Cover
55Union, 1/4“ x 3/16“
56Valve, Shut-Off
57Filter Kit
59WP16123 Whirlpool Washer
60Tube, Inlet Valve
63Screw, Ground
65Clamp Tube
66Nut, Valve
67Shield, Heat
68TAPE, VINYL (3/4 X 108“)
68Golden Harvest (Uncut)
68WPL 876029
6872032 Whirlpool Touch Up Paint Black
68Enamal, Toast (1 Qt. Uncut)
6872113 Whirlpool Touch-Up Paint
6872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
68Almond (Uncut)
68WP72107 Whirlpool Touchup
68799344 Whirlpool Refrigerator Paint
68Enamel, Coffee (1 Qt. Uncut)
68Silicone (Spray)
6872017 Whirlpool Appliance Touch-Up Paint White
68WPL 72112
68Paint, Touch-Up 1/2 Oz. (Coffee)
68CEMENT, ALUMILASTIC (1 1/4 OZ.)
68WP542638 Whirlpool Refrigerator Grease
68WP505587 Whirlpool Refrigerator Sealer
68WP503695 Whirlpool Refrigerator Sealer
68876370 Whirlpool Refrigerator Insulation
68WPL 799832
68606755 Whirlpool Refrigerator Bag
68511873 Whirlpool Refrigerator Paint
68212643 Whirlpool Refrigerator Permagum Sealer
68WPL 799833
68833938 Whirlpool Refrigerator Terminal
68Switch, S.P.D.T.
68Platinum (Uncut)
