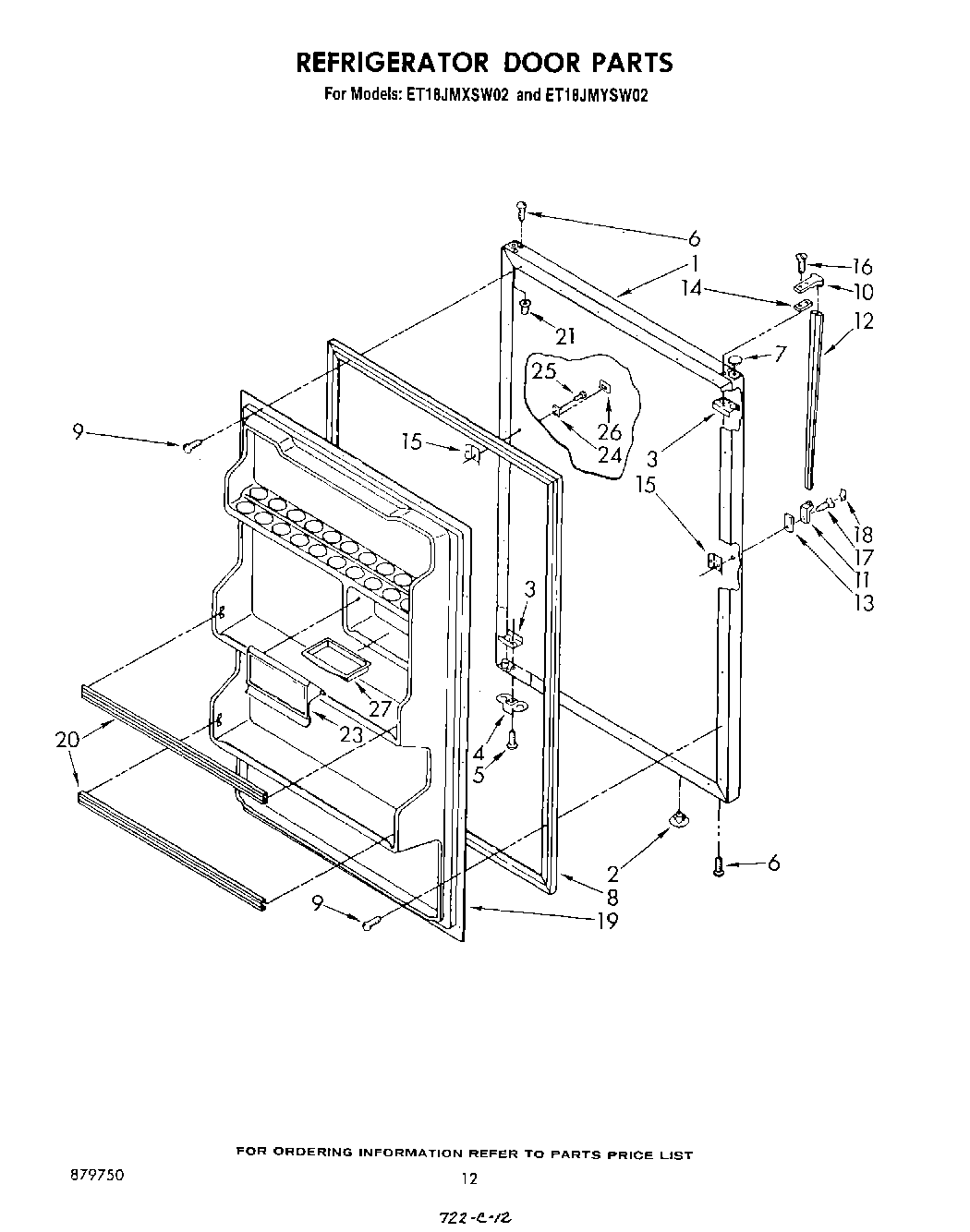

ET18JMXSW02 09 – REFRIGERATOR DOOR , NOT ILLUSTRATED

ET18JMXSW02 09 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

ET18JMXSW02 09 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
Paint, Spray (13 Oz.) (Platinum)
Toast
WPL LIT1115572
Golden Harvest
WPL LIT879750
WPL LIT628107
WPL LIT1114025
350956 Whirlpool Spray Assembly
Leveler (Thinner)
285006 Whirlpool Spray
WPL LIT1116067
1Panel, Refrigerator Door (Toast)
1Panel, Refrigerator Door (Platinum)
1Panel, Refrigerator Door (Golden Harvest)
1Panel, Refrigerator Door (White)
1Panel, Refrigerator Door (Almond)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
6Screw (Repair)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Toast)
7Hole Plug (Almond)
7Hole Plug (Platinum)
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10819342 Whirlpool Refrigerator Endcap Kit
12Handle, Center
12Handle, Center (Golden Harvest)
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel (For Platinum Model Only)
20Trim, Door (2)
21Cap, Hinge Sleeve (2)
23Compartment Door, Butter
24Clip, Medallion
26Medallion
27212643 Whirlpool Refrigerator Permagum Sealer
27WPL 72112
27Platinum (Uncut)
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27Enamal, Toast (1 Qt. Uncut)
27Golden Harvest (Uncut)
2772113 Whirlpool Touch-Up Paint
27Almond (Uncut)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27511873 Whirlpool Refrigerator Paint
27606755 Whirlpool Refrigerator Bag
27WP542638 Whirlpool Refrigerator Grease
27WPL 876029
27WPL 799833
27WPL 799832
27Silicone (Spray)
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
27TAPE, VINYL (3/4 X 108“)
27WP505587 Whirlpool Refrigerator Sealer
27WP503695 Whirlpool Refrigerator Sealer
27876370 Whirlpool Refrigerator Insulation
27833938 Whirlpool Refrigerator Terminal
2772032 Whirlpool Touch Up Paint Black
