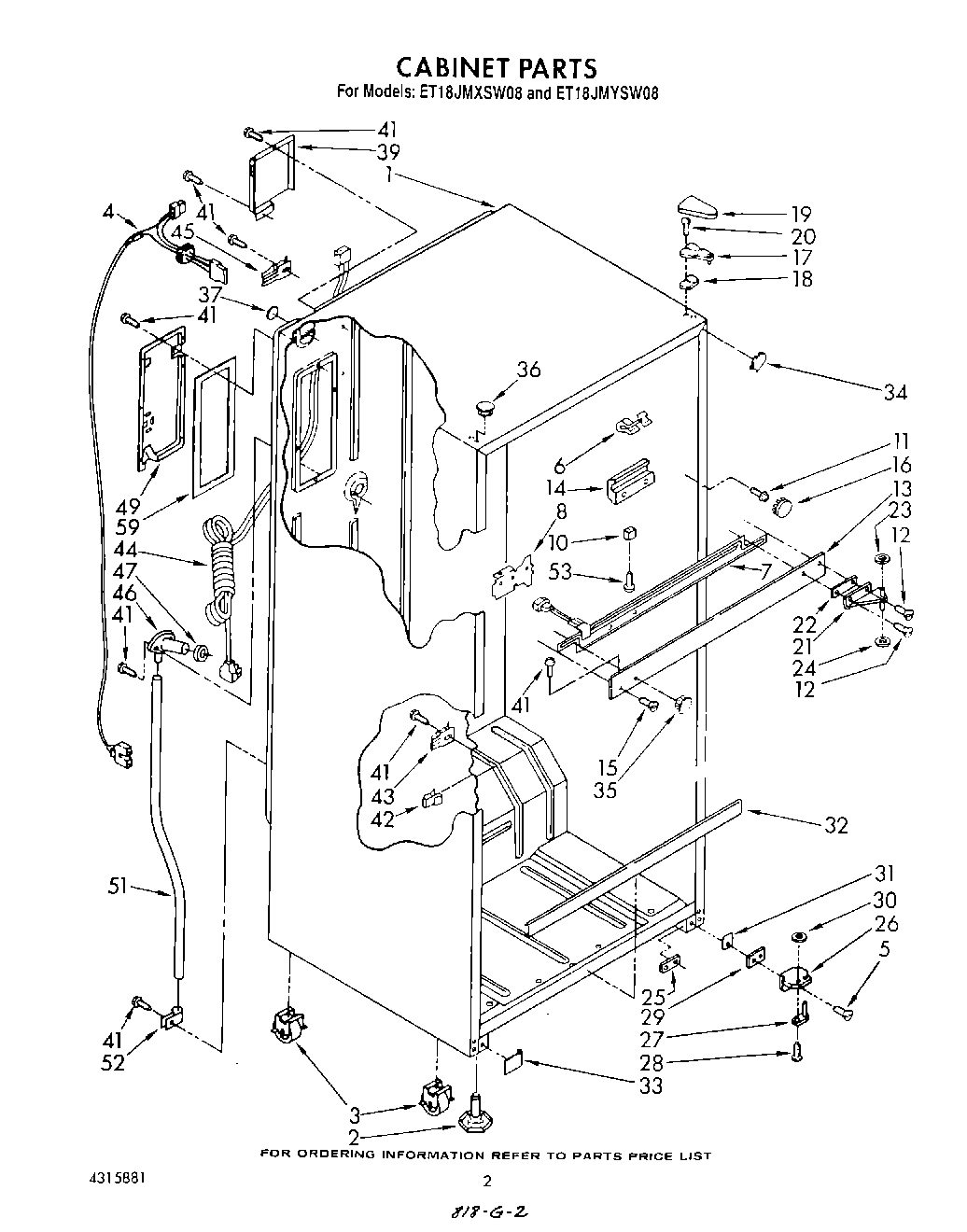

ET18JMXSW08 02 – CABINET

ET18JMXSW08 02 – CABINET

Written by

in

ET18JMXSW08 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
3	Roller, Front & Rear (4)
4	WP2187501 Whirlpool Refrigerator Wire Harness
6	Breaker, Trim Clip
7	Heater, Mullion
8	Center Rail, Bracket (2)
10	Spacer (2)
11	WPL 488844
12	Screw
13	Center Rail (Almond)
13	Center Rail (Toast)
13	Center Rail (Golden Harvest)
13	Center Rail (Platinum)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
16	Hole Plug (2) (Toast)
16	Hole Plug (2) (White)
16	Hole Plug (2) (Almond)
16	Hole Plug (2) (Golden Harvest)
16	Hole Plug (2) (Platinum)
17	Shim, Hinge Top
18	Shim, Hinge
19	Hinge Cover (Toast)
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
20	Screw (Repair)
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Center (Repair)
22	Shim, Hinge Center
23	WP487802 Whirlpool Refrigerator Washer
24	WP488296 Whirlpool Washer Refrigerator
25	WPL 944813
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Platinum)
31	Cover, Glider Rail (Toast)
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (Golden Harvest)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Toast)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (Platinum)
33	WPL 944831
33	WPL 943552
33	WPL 944833
33	WPL 1100682
33	Cover, Gl
34	WPL 1110684
34	WPL 1110688
34	WPL 1110687
34	WPL 1110686
34	WPL 1110685
35	WPL 1119710
35	Hole Plug (Almond)
35	WPL 1119711
35	Hole Plug (White)
35	WPL 1119708
36	Hole Plug (4) (White)
36	Hole Plug (4) (Toast)
36	Hole Plug (4) (Platinum)
36	Hole Plug (4) (Almond)
36	Hole Plug (4) (Golden Harvest)
37	Hole Seal
39	WPL 942845
41	SCREW
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489174 Whirlpool Refrigerator Screw
59	WPL 1106510
