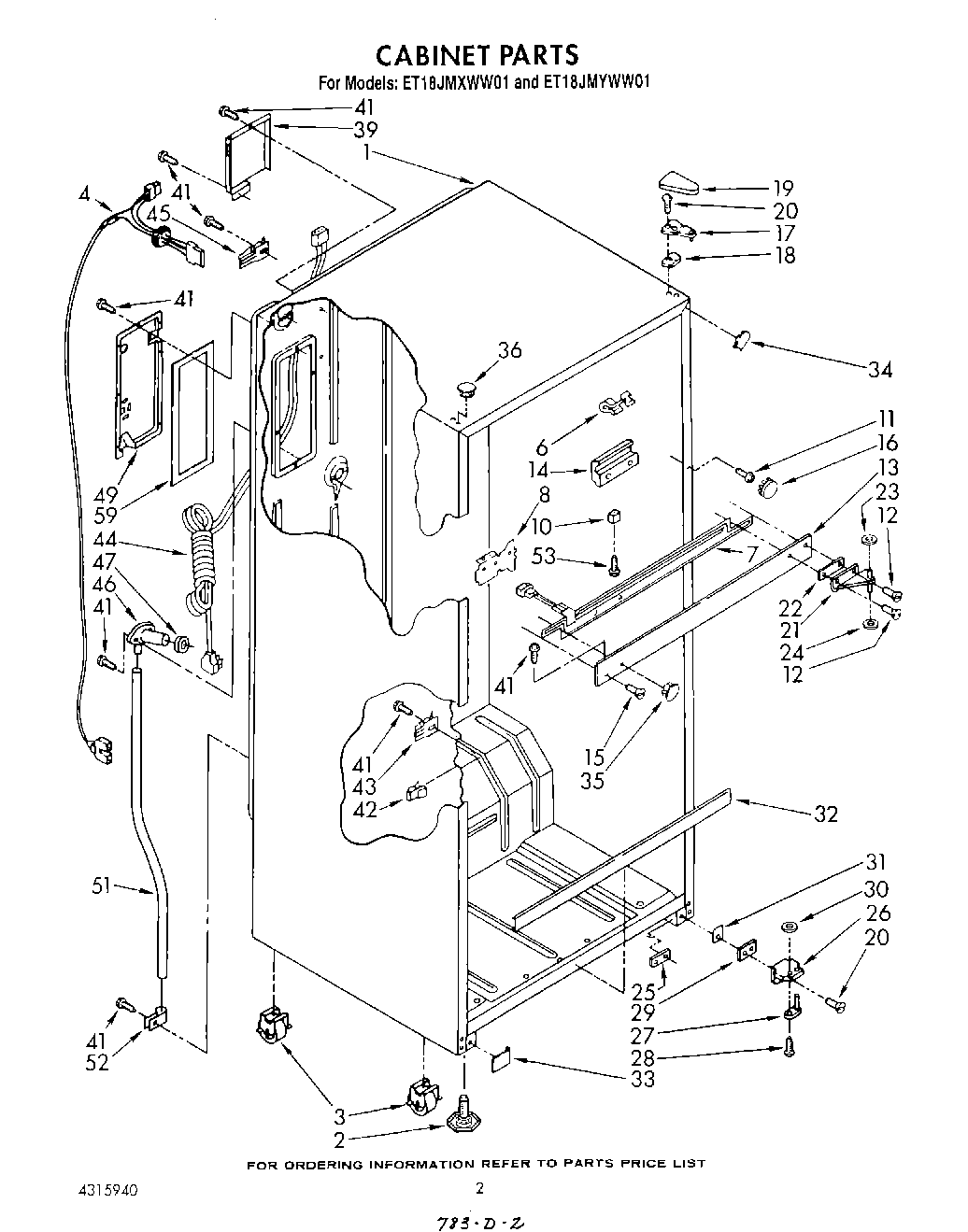

ET18JMXWF01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
3	Roller, Front & Rear (4)
4	WP2187501 Whirlpool Refrigerator Wire Harness
6	Breaker, Trim Clip
7	Heater, Mullion
8	Center Rail, Bracket (2)
10	Spacer (2)
11	WPL 488844
12	Screw
13	Center Rail (Almond)
13	Center Rail (White)
13	Center Rail (Platinum)
13	Center Rail (Golden Harvest)
13	Center Rail (Toast)
14	Center, Rail Shim (2)
15	Screw
16	Hole Plug (2) (Golden Harvest)
16	Hole Plug (2) (Platinum)
16	Hole Plug (2) (Toast)
16	Hole Plug (2) (White)
16	Hole Plug (2) (Almond)
17	Hinge, Top
18	Shim, Hinge Top
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Toast)
20	Screw (Repair)
20	Screw
21	Hinge, Center
22	Shim, Center (Repair)
22	Shim, Hinge Center
23	WP487802 Whirlpool Refrigerator Washer
24	WP488296 Whirlpool Washer Refrigerator
25	Tap Plate (2)
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Platinum)
31	Cover, Glider Rail (Toast)
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (Almond)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (Toast)
32	Cover, Deck Rail (Platinum)
33	WPL 944831
33	Cover, Gl
33	WPL 1100682
33	WPL 943552
33	WPL 944833
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrapper Corner (2) (Toast)
34	Filler, Wrapper Corner (2) (Platinum)
34	Filler, Wrapper Corner (2) (Golden Harvest)
34	Filler, Wrapper Corner (2) (Almond)
35	WPL 1119708
35	WPL 1119710
35	WPL 1119711
35	Hole Plug (Almond)
35	Hole Plug (White)
36	Hole Plug (4) (Golden Harvest)
36	Hole Plug (4) (Almond)
36	Hole Plug (4) (White)
36	Hole Plug (4) (Platinum)
36	Hole Plug (4) (Toast)
39	WPL 942845
41	WP489478 Whirlpool Refrigerator Screw
41	SCREW
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489174 Whirlpool Refrigerator Screw
59	WPL 1106510
