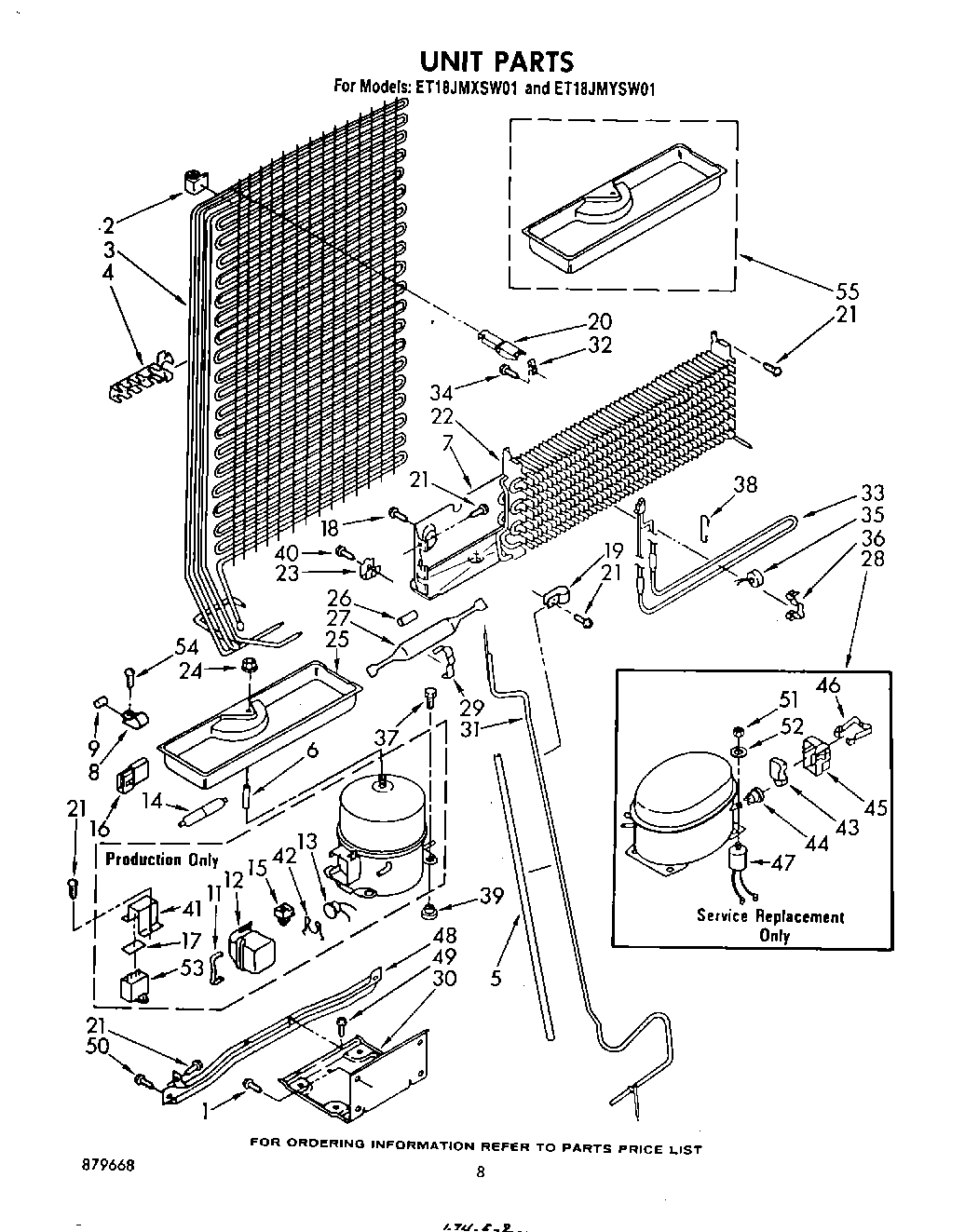

ET18JMYSG01 07 – UNIT

Products

Position	Product
1	WP250830 Whirlpool Refrigerator Screw
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
11	case spring
12	Case, Relay
13	Overload
14	Muffler
15	Relay
16	WP717253 Whirlpool Dishwasher Connector
17	Spacer, Capacitor
19	Tube, Clamp
20	Condenser, Stand-Off
21	W11624204 Whirlpool Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
34	Screw, 8 x 3/8
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
38	Support, Heater
39	876811 Whirlpool Grommet
40	WP489069 Whirlpool Compactor Screw
41	Cover, Capacitor
42	Spring, Overload
43	Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Rail, Unit Mounting
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
51	Nut
52	Washer
53	WPW10662129 Whirlpool Refrigerator Run Capacitor
54	Screw, 8-32 x 1/2
55	978030 Whirlpool Refrigerator Valve
55	VALVE, ACCESS (5/8“)
55	876764 Whirlpool Refrigerator Primary Valve
55	978026 Whirlpool Refrigerator Primary Valve
55	978027 Whirlpool Refrigerator Primary Valve
55	VALVE, ACCESS (1/2“)
55	Evaporator Tray
55	WP978025 Whirlpool Refrigerator Valve
