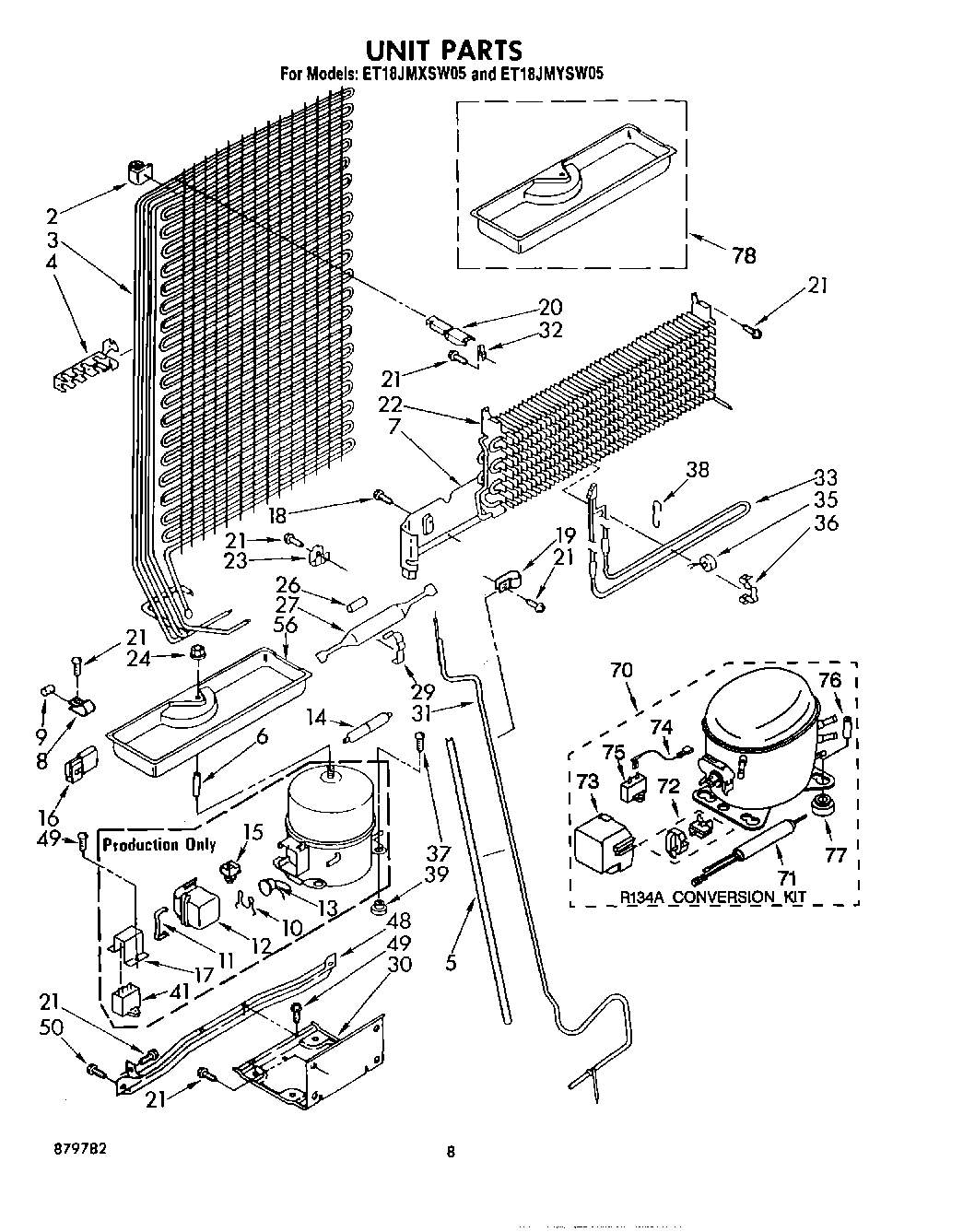

ET18JMYSG05 07 – UNIT

Products

Position	Product
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
10	Spring, Overload
11	case spring
12	Case, Relay
13	Overload
14	Muffler
15	Relay
16	WP717253 Whirlpool Dishwasher Connector
17	Cover, Capacitor
19	Tube, Clamp
20	Condenser, Stand-Off
21	WP489069 Whirlpool Compactor Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
26	Restrictor Sleeve
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
38	Support, Heater
39	876811 Whirlpool Grommet
41	WPW10662129 Whirlpool Refrigerator Run Capacitor
48	Rail, Unit Mounting
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
56	Tray, Evaporator
70	Installation Kit
70	876765 Whirlpool Primary Mounting Kit Refrigerator
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
71	W10843121 Whirlpool Refrigerator Tube
72	OVERLOAD
73	WP2162358 Whirlpool Refrigerator Terminal Cover
74	WP2172890 Whirlpool Refrigerator Wire
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
78	VALVE, ACCESS (1/2“)
78	WP978025 Whirlpool Refrigerator Valve
78	978030 Whirlpool Refrigerator Valve
78	978026 Whirlpool Refrigerator Primary Valve
78	978027 Whirlpool Refrigerator Primary Valve
78	876764 Whirlpool Refrigerator Primary Valve
78	Evaporator Tray
78	VALVE, ACCESS (5/8“)
