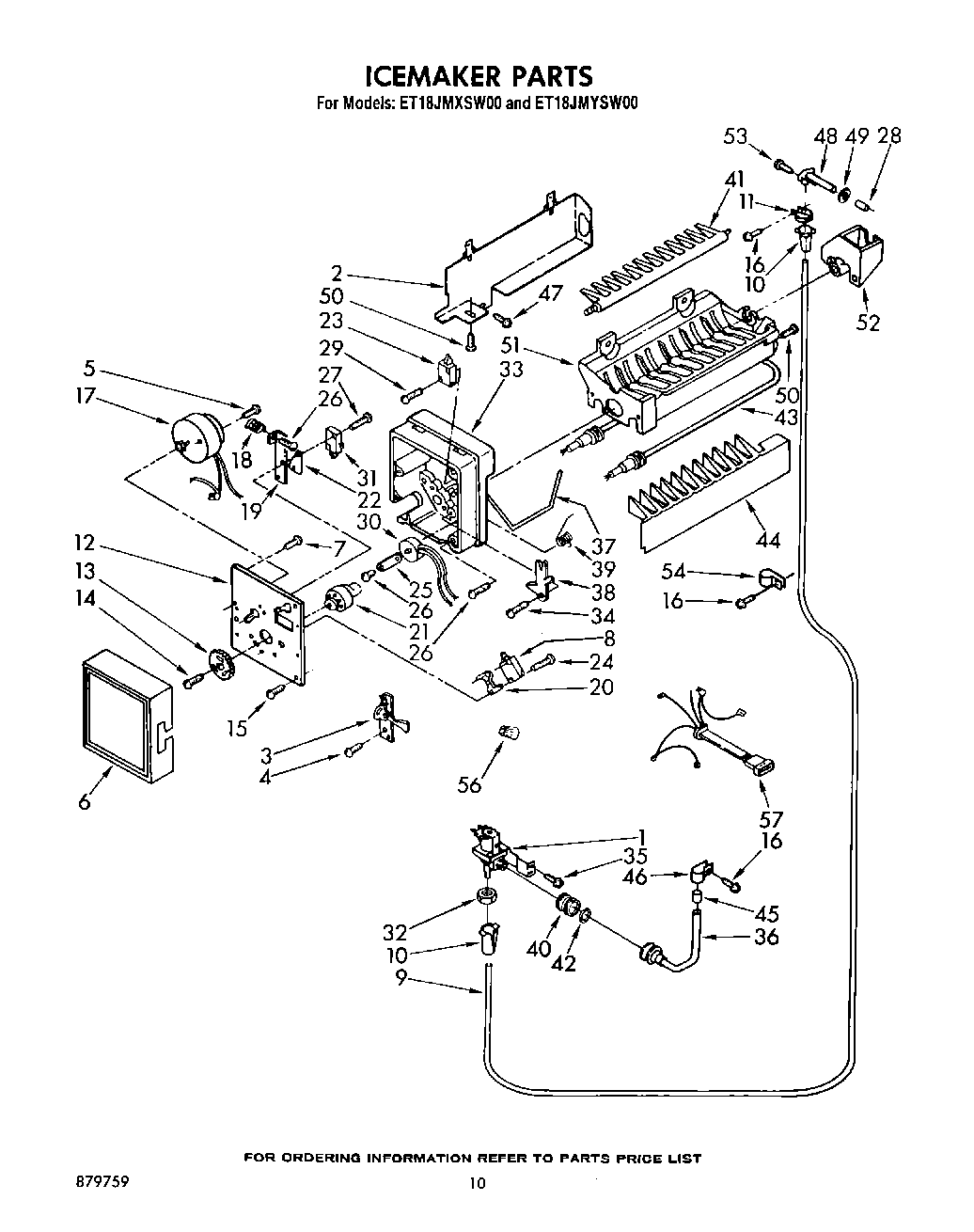

ET18JMYSW00 08 – ICEMAKER

Products

Position	Product
1	4318047 Whirlpool Water Valve
2	Shield, Heat
3	Lever & Plate Assembly
4	Screw (Use W/Motor 627106)
6	Cover
7	Screw, Ground
8	Switch, S.P.D.T.
9	W10823511 Whirlpool Refrigerator Water Tube
10	4387491 Whirlpool Refrigerator Insert
11	WP488878 Whirlpool Refrigerator Tube Clamp
12	Plate, Mounting
13	Gear
14	Screw
15	WP488787 Whirlpool Refrigerator Screw
16	WP489069 Whirlpool Compactor Screw
17	Motor
18	Spring
19	Plate, Valve Switch
20	Spacer, Switch (2)
21	Cam
22	Insulator
23	Switch, S.P.D.T. (2)
24	Screw, 4-40 x 1
25	Clamp, Thermostat
26	Screw, 8-32 x 1
27	Screw
28	Tube, Water Inlet
29	Screw, 4-24 x 3/4
30	Thermostat
31	Switch, S.P.S.T.
32	WP627018 Whirlpool Refrigerator Nut
33	Support
34	Screw, Shoulder
35	WPW10141625 Whirlpool Refrigerator Screw Assembly
36	Tube, Inlet Valve
37	Arm, Shut-Off
38	Lever, Arm
39	Spring, Shut-Off Arm
40	Nut, Valve
41	Ejector
42	WP16123 Whirlpool Washer
43	Heater, Mold
44	Stripper, Ice
45	WP2158826 Whirlpool Refrigerator Dampener
46	Clamp Tube
47	Screw, 8-15 x 1/2 (4)
48	WP2196157 Whirlpool Fill Tube
49	WP1106508 Whirlpool Refrigerator Gasket
50	WP489128 Whirlpool Refrigerator Screw
51	Mold & Heater Assembly (Includes Illus. 15)
52	Beraing & Inlet
54	WP488366 Whirlpool Refrigerator Clamp
56	Wire Connector
57	WPL 627750
