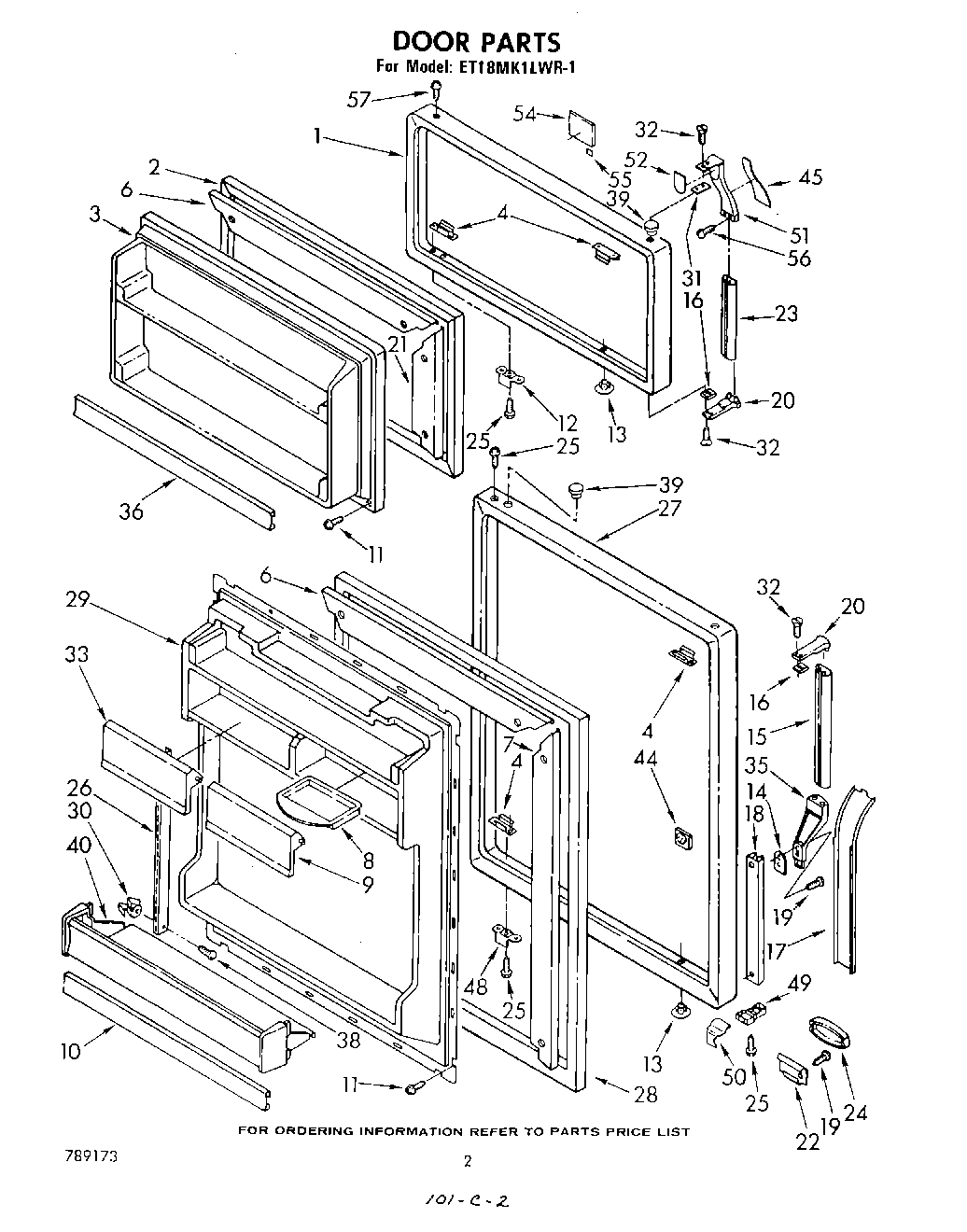

ET18MK1LWR1 02 – DOOR

Products

Position	Product
1	Door, Freezer (New Avocado)
1	Door, Freezer (Almond)
1	Door, Freezer (Golden Harvest)
1	Door, Freezer (Coffee)
1	Door, Freezer (Toast)
1	Door, Freezer (White)
1	Door, Freezer (Platinum)
2	Gasket, Freezer Door
2	Gasket, Freezer Door
3	Panel, Interior
3	Panel, Inteiror (For Platinum Model Only)
4	W10833053 Whirlpool Refrigerator Plate
6	Retainer, Top & Bottom (2)
7	Retainer, Gasket Side
9	Door, Butter
10	Trim, Shelf (3)
11	W11624204 Whirlpool Screw
11	SCREW
12	Bracket, Door Stop
13	Hole Plug (2)
14	Shim
15	Handle, Center (Golden Harvest)
15	Handle Center (Almond)
15	Center, Handle (Toast)
15	Center, Handle (Platinum)
15	Center, Handle (New Avocado)
15	Handle, Center (White & Coffee)
16	Spa
17	Insert, Handle
18	Retainer, Insert
19	WP488729 Whirlpool Refrigerator Door Screw
20	Handle End
21	Retainer Gasket Side
22	Clip, Medallion
23	Handle, Center (New Avocado)
23	Center, Handle (Platinum)
23	Handle, Center (Golden Harvest)
23	Center, Handle (Toast)
23	Handle, Center (White, Coffee)
23	Handle, Center (Almond)
24	Medallion (Platinum)
24	Medallion (Almond)
24	Medallion (White)
24	Medallion (Coffee)
24	Medallion (New Avocado)
24	Medallion (Golden Harvest)
24	Medallion (Toast)
25	WP488921 Whirlpool Refrigerator Screw
25	Screw (Repair)
26	WPL 939361
27	WPL 944148
27	WPL 1100185
27	WPL 944149
27	Door, Refrigerat
27	WPL 944150
27	WPL 944152
27	WPL 944151
28	Gasket, Refrigerator Door
28	Gasket, Refrigerator Door
29	WPL 943131
29	WPL 1100213
30	Expansion Clip
31	Shim, Handle
32	WP488920 Whirlpool Refrigerator Screw
32	Screw (Repair)
33	Door, Utility
35	Center End Cap, Handle
36	Trim, Shelf (2)
39	Hole Plug (New Avocado)
39	Hole Plug (Coffee)
39	Hole Plug (Almond)
39	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
39	Hole Plug (Platinum)
39	Hole Plug (Toast)
40	WPL 943132
40	WPL 1100214
44	WP939101 Whirlpool Refrigerator Plate
45	WPL 935077
48	Bracket, Door Stop
49	WPL 944166
50	WPL 944167
51	Handle End, Top
52	Shim, EndCap (Top)
54	Escut
55	Tape Strip
56	Screw
57	WP8281206 Whirlpool Refrigerator Screw
