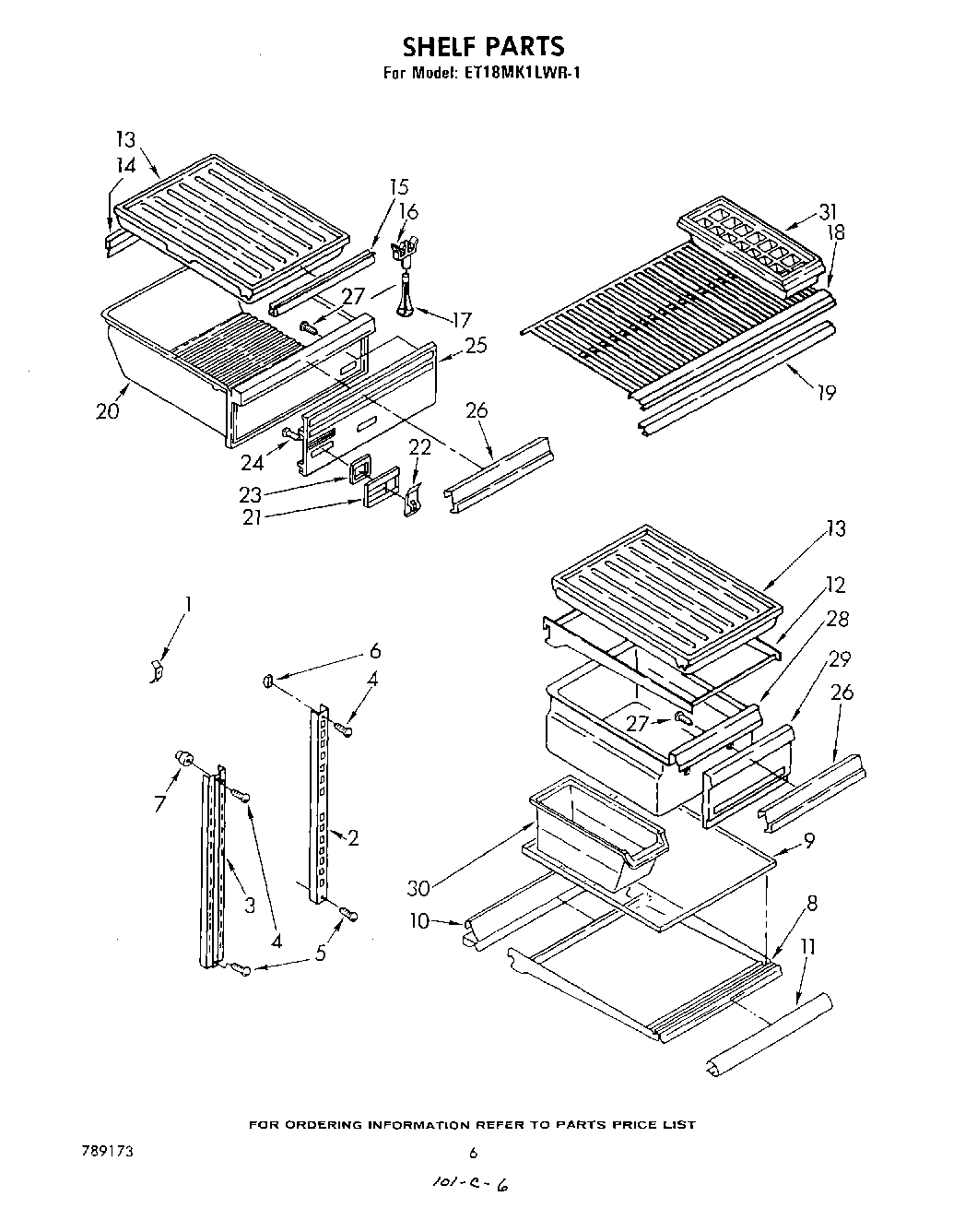

ET18MK1LWR1 04 – SHELF

Products

Position	Product
1	Screw, Anchor (3)
2	Shelf, Ladder (2)
3	Shelf, Ladder Center
4	Screw, 8 x 1-1/4 (3)
5	Screw (Repair)
5	Screw, 8-32 x 1-1/4
6	520965 Whirlpool Refrigerator Support
7	Screw Support, Center Ladder (2)
8	Shelf, Cantilever (3)
9	Glass, Shelf
10	Glass, Reflector
11	Trim, Shelf
12	Pan Shelf, Cantilever
13	Pan Slide & Cover (3)
14	Gasket, Rear
15	Gasket, Front
16	Support, Cover
17	Post, Cover
18	Shelf, Freezer
19	Trim, Shelf
20	Pan, Crisper
21	Housing, Humidity Control
22	Slide, Humidity Control
23	Seal, Humidity Control
24	Screw, 6-19 x 7/16
25	Front Cover, Crisper (For Platinum Model Only)
25	Front Cover, Crisper
26	Overlay
27	WP488729 Whirlpool Refrigerator Door Screw
27	Screw (Repair)
28	Meat Pan
29	Front Cover, Meat (For Platinum Model Only)
29	Front Cover, Meat
30	WP982704 Whirlpool Refrigerator Container
31	WP841180A Whirlpool Microwave Glass Turntable Tray
