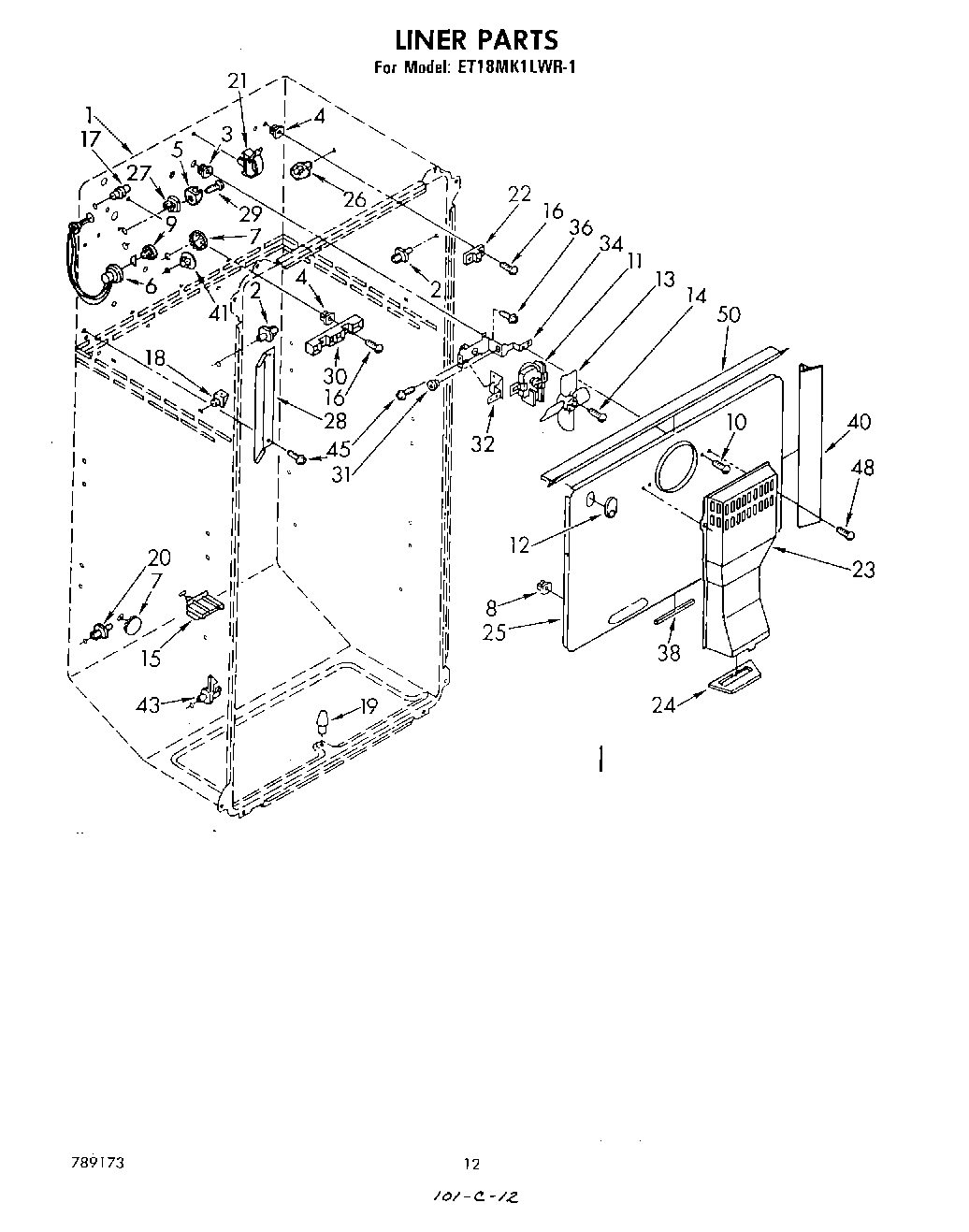

ET18MK1LWR1 07 – LINER , NOT ILLUSTRATED AND OPTIONAL

ET18MK1LWR1 07 – LINER , NOT ILLUSTRATED AND OPTIONAL

ET18MK1LWR1 07 – LINER , NOT ILLUSTRATED AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest
350956 Whirlpool Spray Assembly
Leveler (Thinner)
1Liner (Not A Serviceable Part)
2Stud, Shelf (2)
3Grommet (2)
4Grommet (4)
5Shelf Stud, Saddle L.S.
6Liner Wiring (Ice Maker)
7Hole, Plug
8Grommet
9Receptacle Cap
10WP489069 Whirlpool Compactor Screw
11482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
12Hole Plug, Evaporator
13Blade, Fan
14WP487887 Whirlpool Refrigerator Screw
15Stud, Support Rear
16WP488163 Whirlpool Refrigerator Screw
17Stud
18Retainer, Stud (4)
19Grommet, Crisper Cover
20Shelf, Stud
21Fastener, Wire
22Terminal Block (Single)
23Air Duct
24Sealing Gasket
25Cover, Evaporator
26Shelf Stud Saddle (R.S.)
27Screw Grommet
28Wiring Shield
29WP488729 Whirlpool Refrigerator Door Screw
30Terminal Block (Multiple)
31Grommet (3)
32Bracket, Double
34Bracket, Single
36W11693756 Whirlpool Screw Assembly
38Gasket, Sealing
40Gasket, Evaporator
41Hole, Plug
43Shelf, Stud
45W11624204 Whirlpool Screw
50WP72107 Whirlpool Touchup
50WPL 946935
50WPL 789173
5072017 Whirlpool Appliance Touch-Up Paint White
50WPL 72112
50WPL 943038
50WPL 946659
50Energy Guide
50WPL 799351
50Gasket, Top
50Transformer (115-230 Volt)
5072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
50799344 Whirlpool Refrigerator Paint
50Almond (Uncut)
50Golden Harvest (Uncut)
50Enamal, Toast (1 Qt. Uncut)
5072032 Whirlpool Touch Up Paint Black
50WP503695 Whirlpool Refrigerator Sealer
50WP505587 Whirlpool Refrigerator Sealer
50WP542638 Whirlpool Refrigerator Grease
50TAPE, VINYL (3/4 X 108“)
50Enamel, Black (1 Qt. Uncut)
50WPL 799833
50WPL 876029
50Paint, Touch-Up 1/2 Oz. (Coffee)
50Enamel, Coffee (1 Qt. Uncut)
50Enamel, New Avocado (1 Qt. Uncut)
50Platinum (Uncut)
50CEMENT, ALUMILASTIC (1 1/4 OZ.)
50212643 Whirlpool Refrigerator Permagum Sealer
5072113 Whirlpool Touch-Up Paint
50511873 Whirlpool Refrigerator Paint
50606755 Whirlpool Refrigerator Bag
50833938 Whirlpool Refrigerator Terminal
50WPL 799832
50876370 Whirlpool Refrigerator Insulation
5072109 Whirlpool Dacor Avocado Touch-Up Paint
