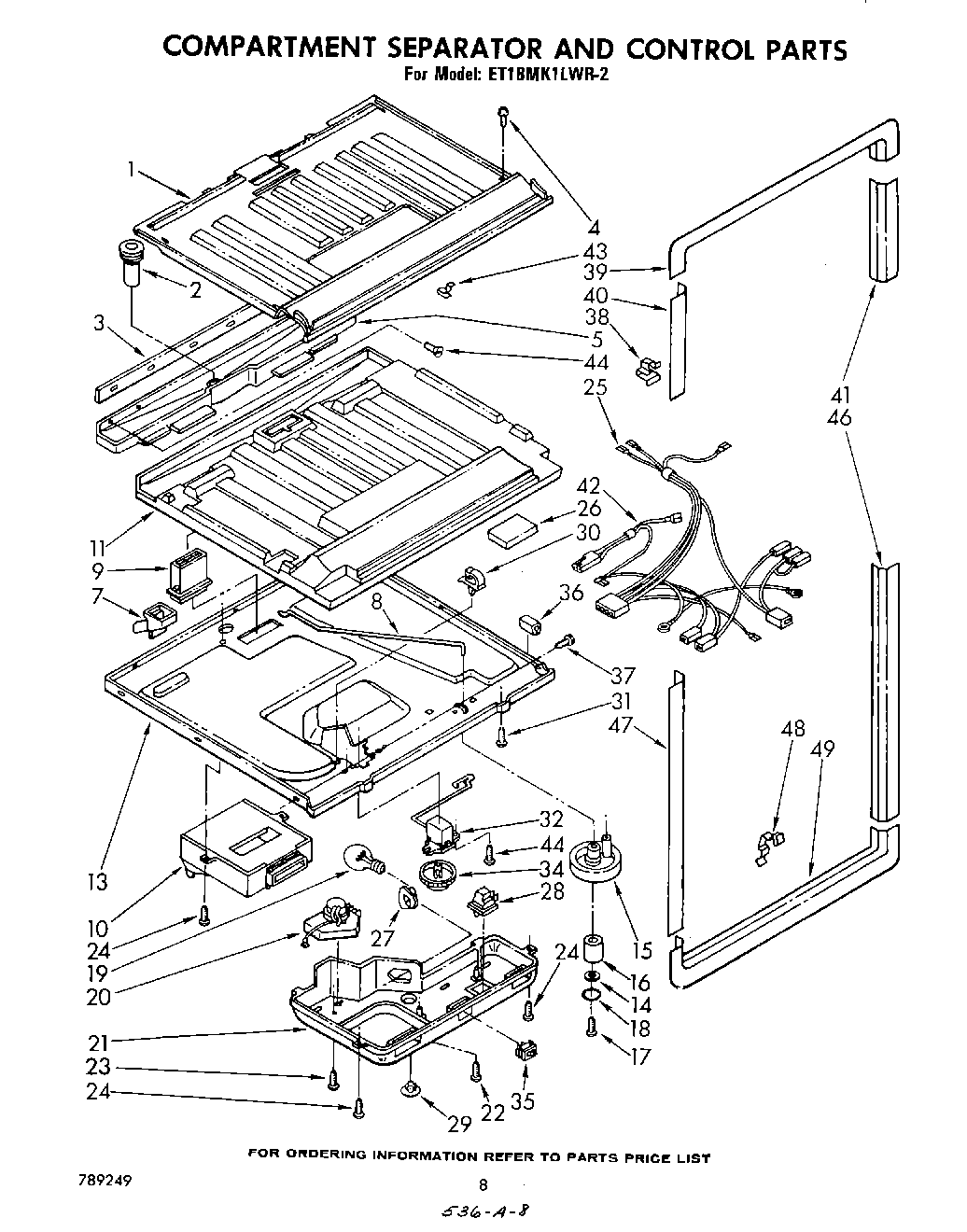

ET18MK1LWR2 05 – COMPARTMENT SEPARATOR AND CONTROL

Products

Position	Product
1	Top, Compartment Separator
2	Drain Insert
3	Gasket, Drain Pan
4	WP488729 Whirlpool Refrigerator Door Screw
5	Drain Pan
7	Cup, Drain
8	Connecting Rod
9	Air Duct Extension
10	Air Diffuser
11	Insulation, Compartment Separator
13	Bottom, Compartment Separator
14	Washer
15	Knob, Air Control
16	Spacer, Knob
17	Screw
18	``O`` Ring Seal
19	W11679940 Whirlpool Refrigerator Light Bulb Assembly
20	Defrost Timer (10 Hr.)
21	Box, Control
22	Screw, 8 x 3/8 (2)
23	WP487353 Whirlpool Refrigerator Screw
24	WP489069 Whirlpool Compactor Screw
25	Control Box Wiring
26	Insulation (2)
27	4387478 Whirlpool Refrigerator Light Socket
28	W11384469 Whirlpool Door Switch
29	940014 Whirlpool Refrigerator Primary Button Plug
30	Fastener, Wire
31	Screw, 8 x 1 (2)
32	WP819470 Whirlpool Refrigerator Thermostat
34	Knob, Thermostat
35	WP938213 Whirlpool Refrigerator Power Switch
36	Wiring Protector (2)
37	Screw, 8 x 3/8
38	Clip, Liner
39	Breaker, Freezer (Top)
40	Breaker, Freezer (L.S.)
41	Breaker, Freezer (R.S.)
42	Wiring Assembly (Ground & Test)
43	Breaker, Trim Clip
44	W11624204 Whirlpool Screw
46	Breaker, Refrigerator R.S.
47	Breaker, Refrigerator L.S.
48	Breaker, Retainer Clip (3)
49	Breaker, Refrigerator (Bottom)
