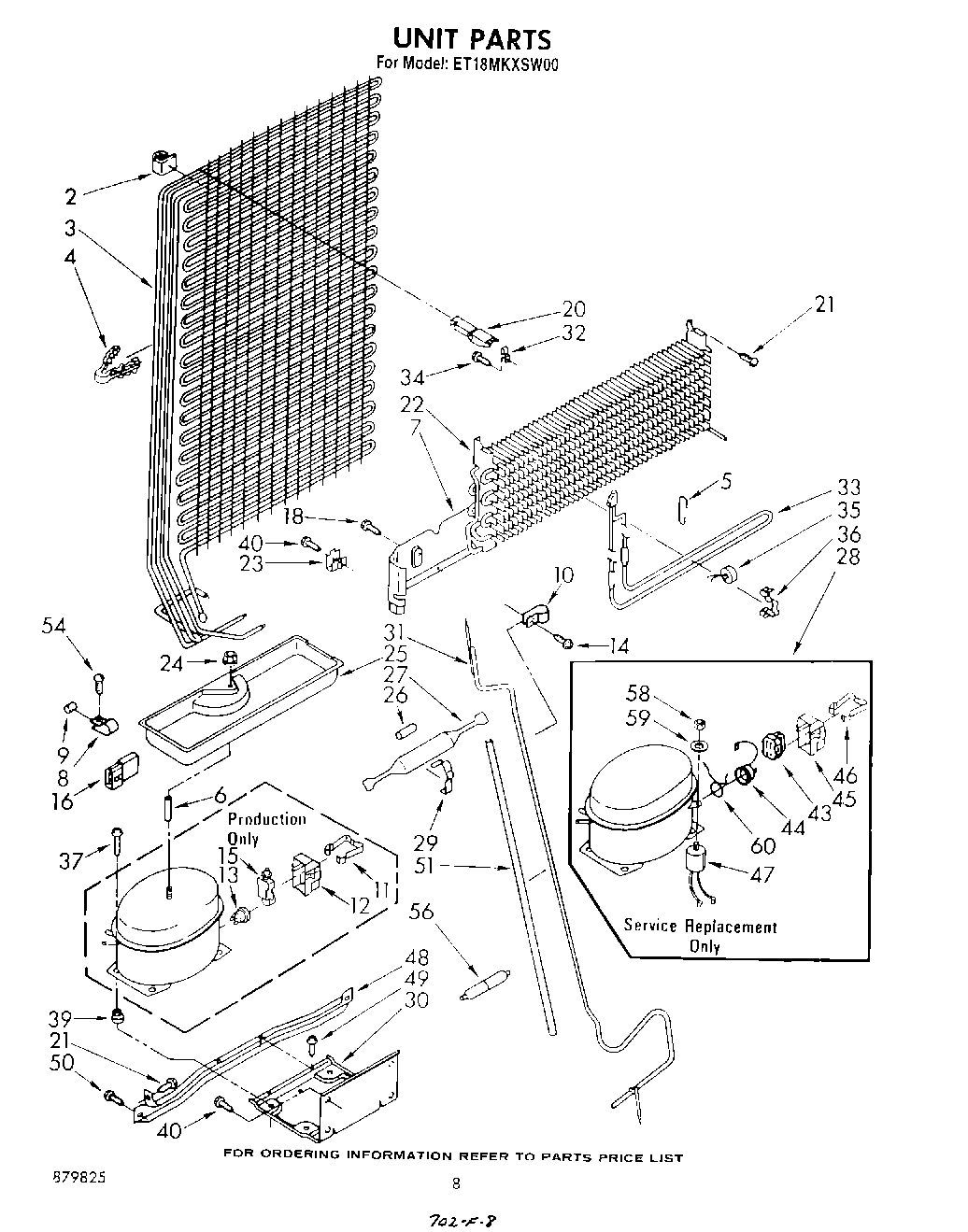

ET18MKXSW00 07 – UNIT

Products

Position	Product
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	Support, Heater
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
10	Tube, Clamp
12	Terminal Cover
13	Overload
15	Relay
16	WP717253 Whirlpool Dishwasher Connector
20	Condenser, Stand-Off
21	W11624204 Whirlpool Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
34	Screw, 8 x 3/8
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
40	WP489069 Whirlpool Compactor Screw
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Rail, Unit Mounting
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
51	WP2002171 Whirlpool Refrigerator Sleeve
54	Screw, 8-32 x 1/2
56	Muffler
58	Nut
59	Washer
60	978026 Whirlpool Refrigerator Primary Valve
60	VALVE, ACCESS (5/8“)
60	VALVE, ACCESS (1/2“)
60	WP978025 Whirlpool Refrigerator Valve
60	876764 Whirlpool Refrigerator Primary Valve
60	978030 Whirlpool Refrigerator Valve
60	978027 Whirlpool Refrigerator Primary Valve
60	Overload Spring
