ET18NKXAW03 06 – UNIT

ET18NKXAW03 06 – UNIT

Written by

in

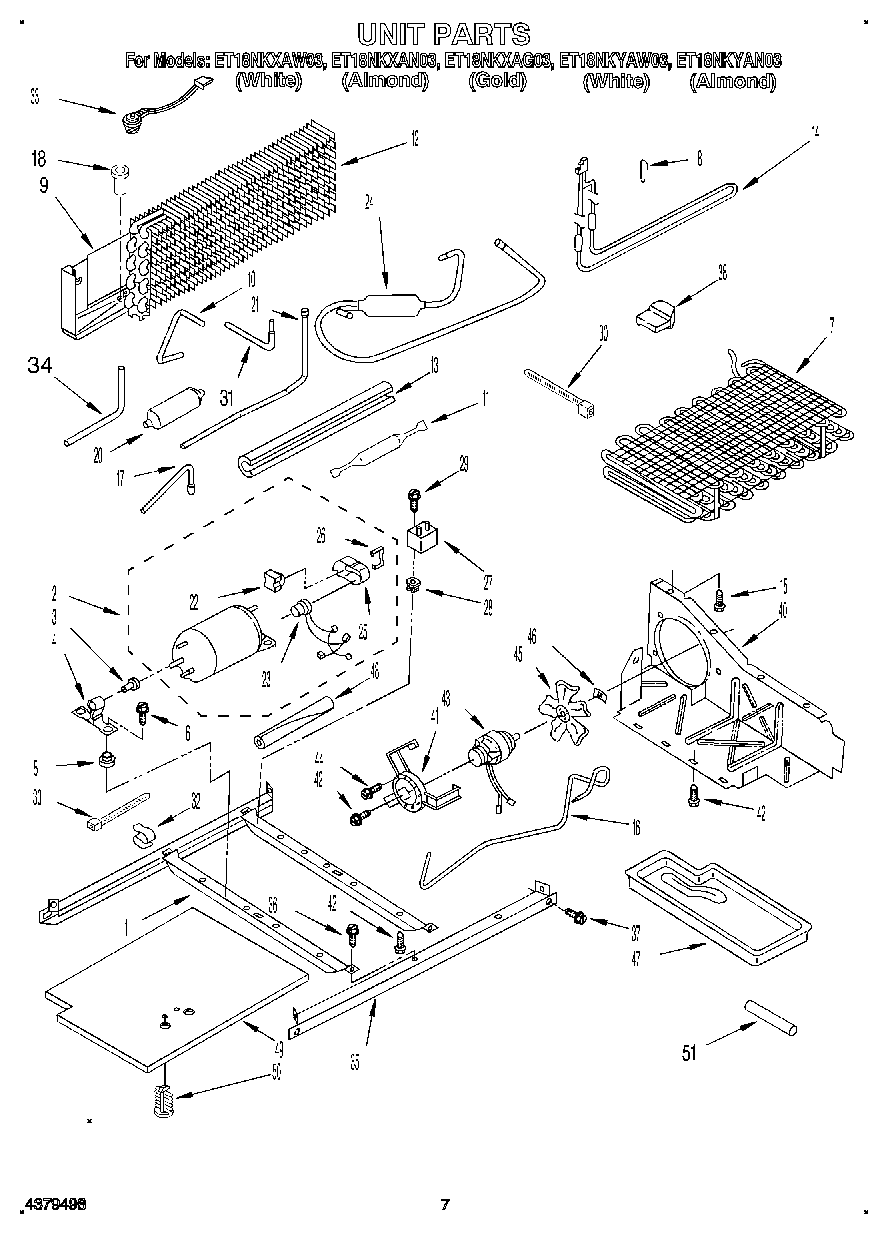

ET18NKXAW03 06 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor KIt Includes Items 22 (23, 25, 26 & 27)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
8	Support, Heater
9	Drain Pan & Heat Shield
10	Tube, Muffler & Reservoir
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	WP2002171 Whirlpool Refrigerator Sleeve
14	Heater, Defrost
15	WP489478 Whirlpool Refrigerator Screw
16	Tube, Discharge
17	Tube, Process
18	Drain Fitting
20	Reservoir
21	Tube, Reservoir & Heat Exchanger
22	Relay (See Overload)
23	Overload (Production (Includes Relay))
23	Overload (Service (Includes Relay))
24	Muffler
25	Terminal Cover (Service)
26	Strap, Cover
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	WPW10339879 Whirlpool Wire Tie
31	Tube, Process
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34	Tube, Condenser To Heat Loop
35	Unit, Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
38	Wedge, Air Baffle
40	Air, Baffle
41	Fan, Mounting Bracket
42	Screw
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	Sleeve
49	Cover, Unit Bottom
50	489396 Whirlpool Refrigerator Clip
51	VALVE, ACCESS (1/2“)
51	978027 Whirlpool Refrigerator Primary Valve
51	978030 Whirlpool Refrigerator Valve
51	978026 Whirlpool Refrigerator Primary Valve
51	876764 Whirlpool Refrigerator Primary Valve
51	Fitting, Drain
51	VALVE, ACCESS (5/8“)
51	WP978025 Whirlpool Refrigerator Valve
