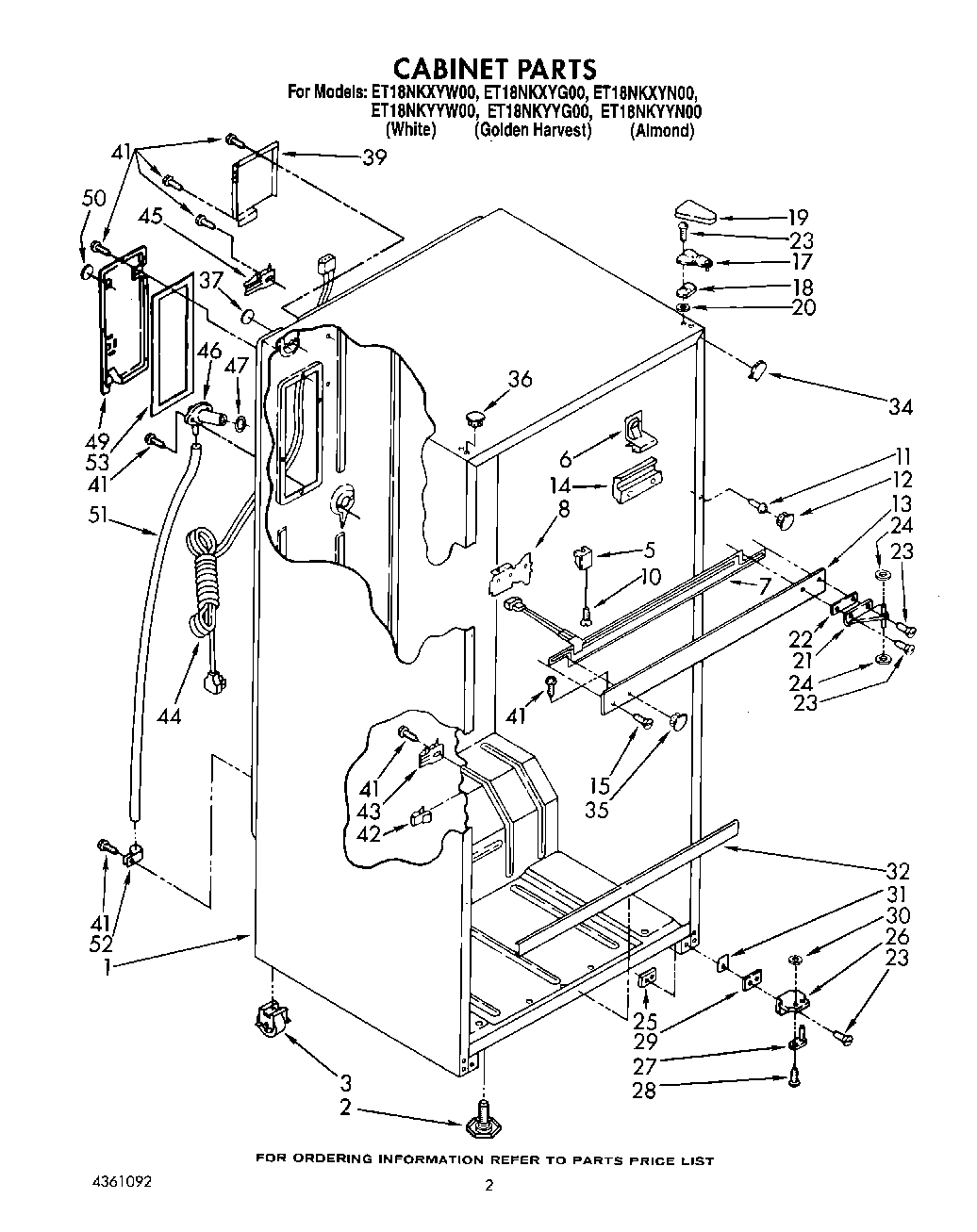

ET18NKXYW00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
3	Roller, Rear
5	Spacer (3)
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
10	WP488163 Whirlpool Refrigerator Screw
11	Screw, 8-32 x 1/2 (2)
12	Hole Plug (2) (Golden Harvest)
12	Hole Plug (2) (Almond)
12	Hole Plug (2) (White)
13	Center Rail (Almond)
13	Center Rail (White)
13	Center Rail (Golden Harvest)
14	Center, Rail Shim (2)
15	Screw
17	Hinge, Top
18	Shim, Hinge
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Golden Harvest)
20	WP487576 Whirlpool Washer
21	Hinge, Center
22	Shim, Hinge Center
23	Screw
24	WP488296 Whirlpool Washer Refrigerator
25	Tap Plate (2)
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
30	WP489200 Whirlpool Refrigerator Washer
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (Almond)
34	WPL 1110684
34	WPL 1110686
34	WPL 1110685
35	WPL 1119708
35	Hole Plug (Almond)
35	Hole Plug (White)
36	WP2151652 Whirlpool Refrigerator Button Plug
36	Hole Plug (6) (Almond)
36	Hole Plug (5) (Golden Harvest)
37	Hole Seal
39	WPL 942845
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WPL 1106510
