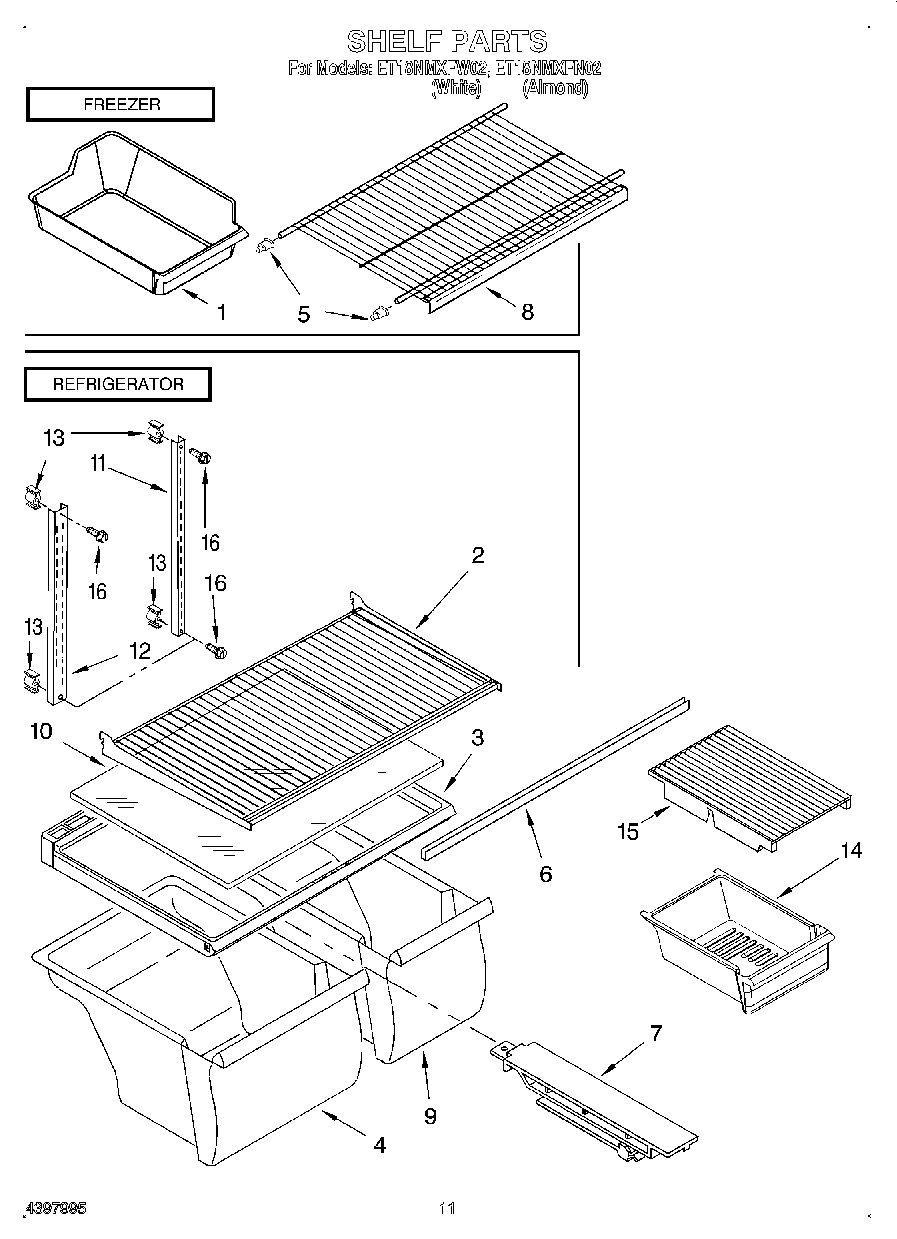

ET18NMXFN02 06 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Modular Icemaker Service Sheet
	WPL LIT2195584
	WPL LIT2195481
	WPL LIT2199009
	WPL LIT677971
	Torx Key
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1	2254352A Whirlpool Refrigerator Ice Container
2	Shelf, Full Cantilever
3	WP2314548 Whirlpool Refrigerator Cover
4	W10854037 Whirlpool Refrigerator Crisper Pan
5	2163762 Whirlpool Refrigerator Cup Assembly
6	WP2172748 Whirlpool Drawer Support
7	WP2163835 Whirlpool Track Assembly
8	WP2176275 Whirlpool Refrigerator Wire Shelf
9	W10856580 Whirlpool Crisper Pan
10	WP2169921 Whirlpool Refrigerator Glass Shelf
11	Shelf, Ladder (2)
12	Shelf, Ladder Center
13	Support, Screw
14	Pan, Meat
15	Cover, Meat Pan
16	W11544659 Whirlpool Refrigerator Screw
100	FeaturePak (Includes 12,20) Also See Ref. & Frz. Dr. Pgs.
100	285006 Whirlpool Spray
100	Almond (Uncut)
100	72032 Whirlpool Touch Up Paint Black
100	Door Reversal Instructions
100	WPL 799832
100	350956 Whirlpool Spray Assembly
100	72017 Whirlpool Appliance Touch-Up Paint White
100	799344 Whirlpool Refrigerator Paint
100	WP72107 Whirlpool Touchup
100	212643 Whirlpool Refrigerator Permagum Sealer
100	350942 Whirlpool Spray Paint
100	511873 Whirlpool Refrigerator Paint
100	606755 Whirlpool Refrigerator Bag
100	833938 Whirlpool Refrigerator Terminal
100	876370 Whirlpool Refrigerator Insulation
100	WP503695 Whirlpool Refrigerator Sealer
100	WP505587 Whirlpool Refrigerator Sealer
100	WP542638 Whirlpool Refrigerator Grease
100	TAPE, VINYL (3/4 X 108``)
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	WPL 799833
100	WPL 876029
100	350930 Whirlpool White Spray Paint
