ET18NMXFN03 02 – DOOR

ET18NMXFN03 02 – DOOR

Written by

in

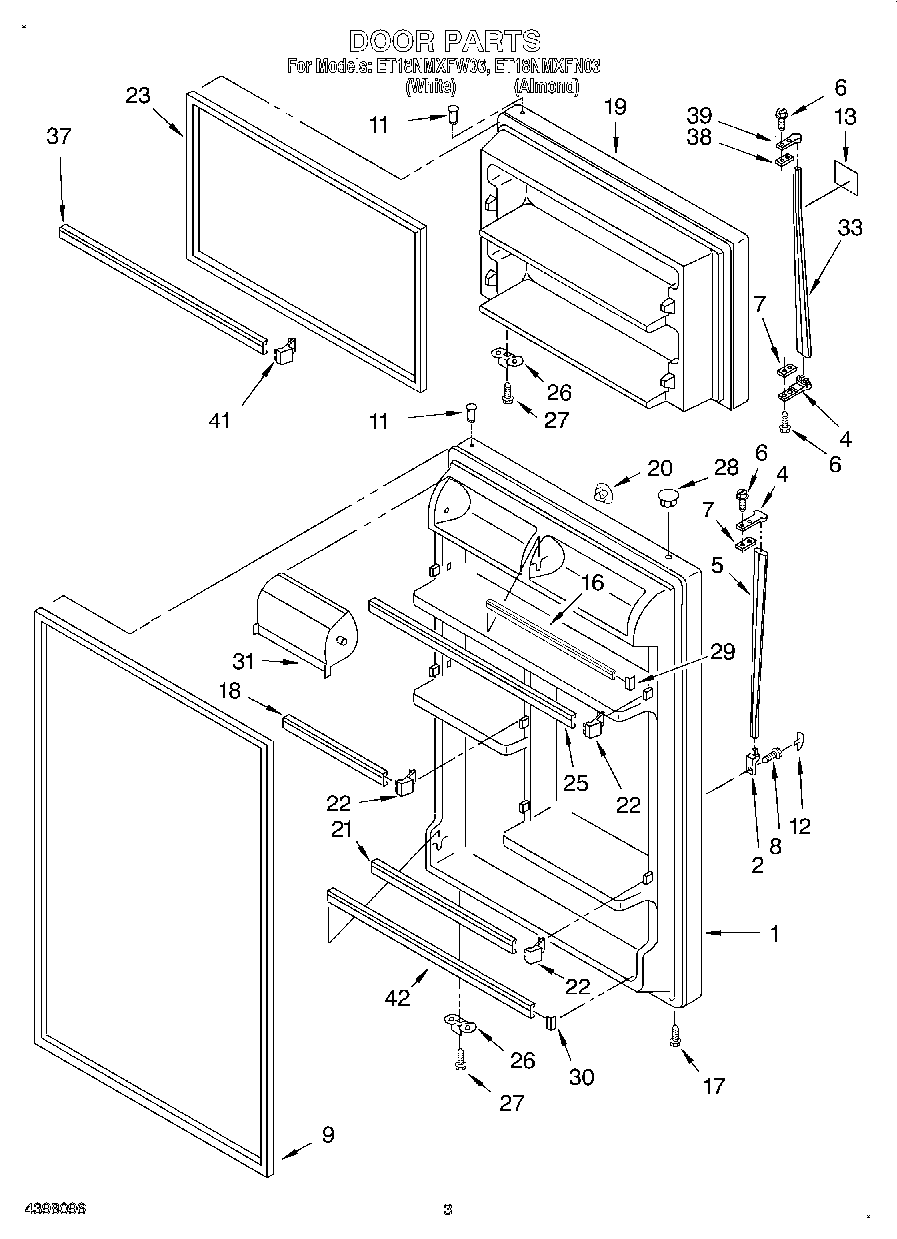

ET18NMXFN03 02 – DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.9 & No.22) (Almond)
1Refrigerator Door (Includes No.9 & No.22) (White)
2819342 Whirlpool Refrigerator Endcap Kit
5Handle, Center (Almond)
5WP2162555 Whirlpool Refrigerator White Door Handle
6WP488920 Whirlpool Refrigerator Screw
7Spa
8WP488729 Whirlpool Refrigerator Door Screw
92159057 Whirlpool Refrigerator Fresh Food Door Gasket
11WP2183003 Whirlpool Thimble
12Cover, Screw (Almond)
12Cover, Screw (White)
13Nameplate (White)
13Nameplate (Almond Model)
16TRIM-DOOR
17WP8281206 Whirlpool Refrigerator Screw
18Trim, Door
19Freezer Door (Includes Illus. 4, 17 & 18) (White)
19Freezer Door (Includes No.22 & No.23) (Almond)
20WP2189000 Whirlpool Refrigerator Handle Plug
20Hole Plug (Almond)
21WP2195943 Whirlpool Shelf Retainer Bar
22WP2195915 Whirlpool Door Shelf Support
232159327 Whirlpool Refrigerator Door Gasket
25Trim, Door Shelf
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28Hole Plug (Almond)
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31WP2218113 Whirlpool Dairy Door
33Handle, F.C. (Almond)
37Trim-Door (2)
38Shim, Handle
41WP2156003 Whirlpool Refrigerator Door Shelf End Cap
42WPW10421484 Whirlpool Refrigerator Door Trim
100FeaturePak (Includes 12, 20) Also See Ref. & Frz. Dr. Pgs.
