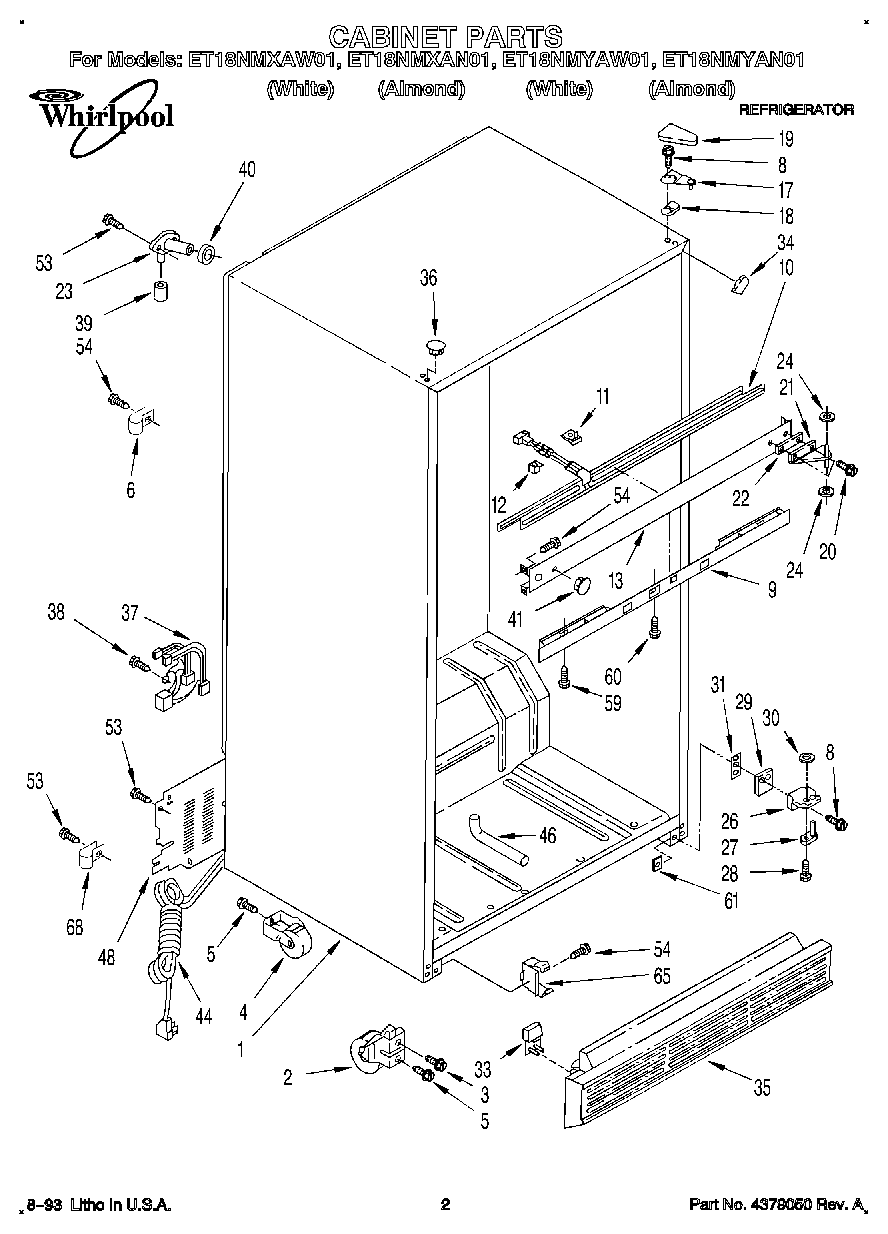

ET18NMYAN01 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Front Roller (2)
3Screw, 5/16-24 x 1-1/4
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw, 1/4-28 x 1/2 (2)
6WP488366 Whirlpool Refrigerator Clamp
9Control, Front Cover
10Heater, Mullion
11Clip, Mullion (3)
12Spacer (3)
13Center Rail (Almond)
13Center Rail (White)
17WP2189412 Whirlpool Refrigerator Door Hinge
18Shim, Hinge Top
19Cover, Hinge (Almond)
19WP2213360 Whirlpool Refrigerator Cover
20WP999367 Whirlpool Refrigerator Screw
21Hinge, Center
22Shim, Hinge Center
23WP2196157 Whirlpool Fill Tube
24WP487802 Whirlpool Refrigerator Washer
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw 10-32 x 5/16
29Shim, Bottom
30WP489200 Whirlpool Refrigerator Washer
31Spacer
33Corner Filler, Grille
34Filler, Wrapper Corner (2) (Almond)
34Filler, Wrapper Corner (2) (White)
35Grille
36Hole Plug (6) (Almond)
36WP2151652 Whirlpool Refrigerator Button Plug
37Wiring Assembly, Intermediate
38WP250830 Whirlpool Refrigerator Screw
39WP487996 Whirlpool Refrigerator Cap Tube
40WP1106508 Whirlpool Refrigerator Gasket
41Hole Plug (4) (White)
41Hole Plug (4) (Almond)
44Cord, Service
46Fitting, Drain
48Cover, Unit
53WP489464 Whirlpool Refrigerator Screw
54WP489478 Whirlpool Refrigerator Screw
59WP488163 Whirlpool Refrigerator Screw
60WP489174 Whirlpool Refrigerator Screw
61Tap Plate (2)
65WP2155013 Whirlpool Refrigerator Clip
68549193 Whirlpool Refrigerator Power Clamp
