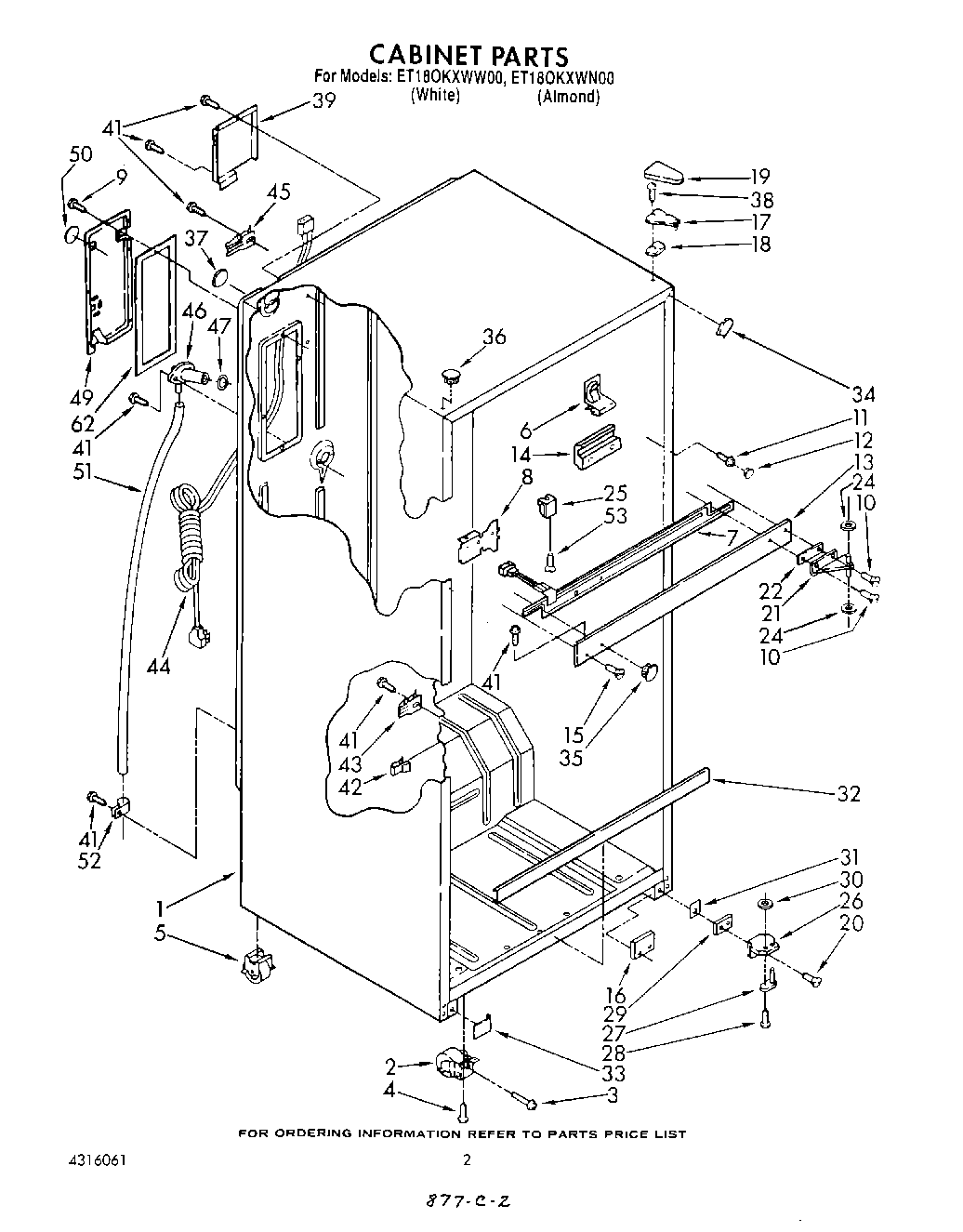

ET18OKXWN00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	Screw, 10-32 x 1/2
5	Roller, Front & Rear (4)
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WP489464 Whirlpool Refrigerator Screw
10	WP999367 Whirlpool Refrigerator Screw
11	WPL 488844
12	Hole Plug (2) (Almond)
12	Hole Plug (2) (White)
13	Center Rail (Almond)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
16	Tap Plate (2)
17	Hinge, Top
18	Shim, Hinge
19	1119787 Whirlpool Refrigerator Hinge Cover
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
22	Shim, Center (Repair)
24	WP488296 Whirlpool Washer Refrigerator
25	Spacer (3)
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Almond)
33	WPL 944831
33	WPL 943552
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrapper Corner (2) (Almond)
35	Hole Plug (Almond)
35	Hole Plug (White)
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (White)
37	Hole Seal
38	Screw (Repair)
38	WP489349 Whirlpool Refrigerator Screw
39	WPL 942845
41	SCREW
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489174 Whirlpool Refrigerator Screw
62	WPL 1106510
