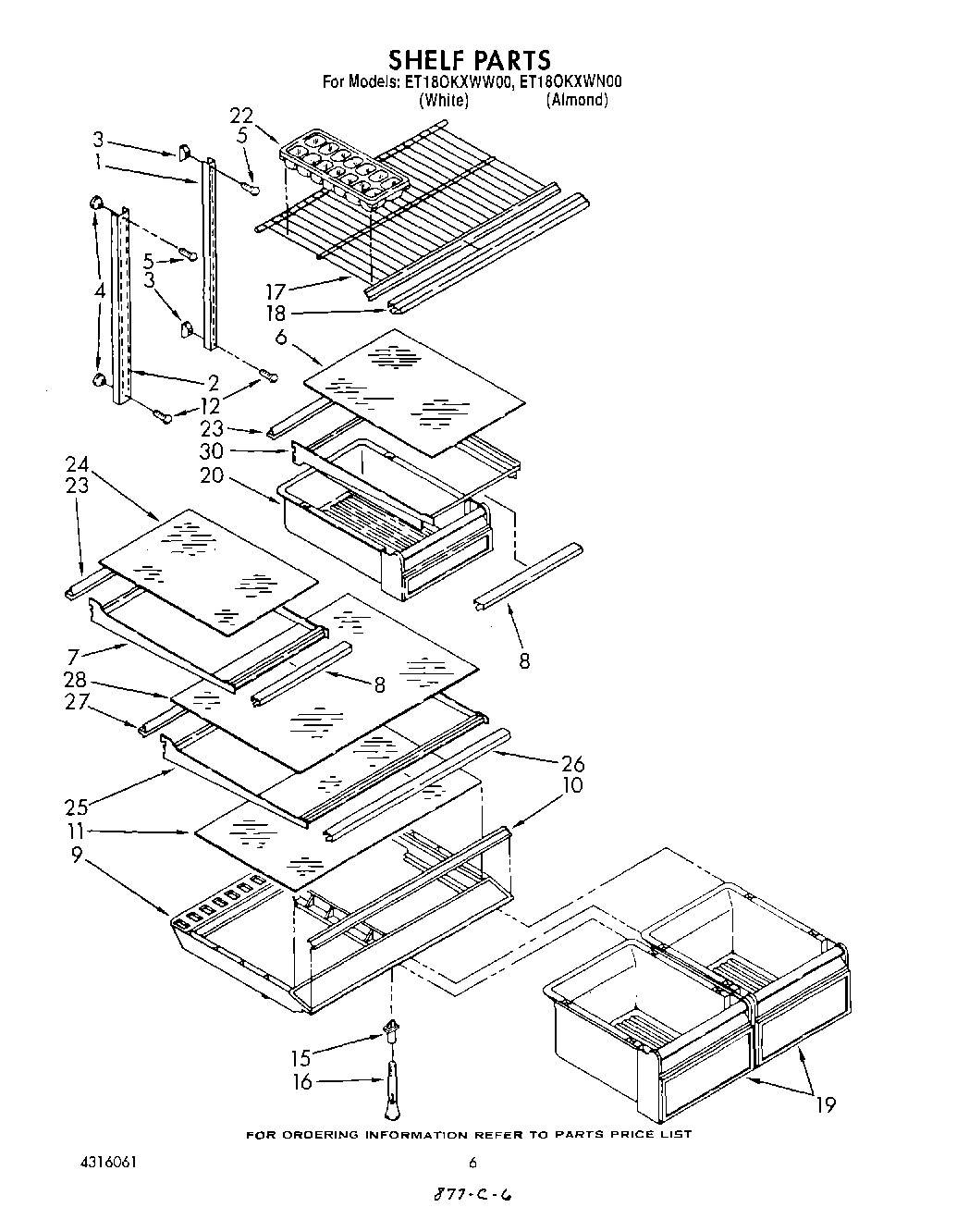

| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 3 | 520965 Whirlpool Refrigerator Support |
| 4 | Screw Support, Center Ladder (2) |
| 5 | Screw (3) |
| 6 | Glass, Shelf |
| 7 | Shelf, Frame |
| 8 | Trim, Shelf |
| 9 | Crisper Cover |
| 10 | Trim, Crisper Cover |
| 11 | Glass, Crisper Cover |
| 12 | WP488163 Whirlpool Refrigerator Screw |
| 15 | Support, Crisper Cover |
| 16 | Post, Cover |
| 17 | Shelf, Freezer |
| 18 | Trim, Shelf Front |
| 19 | Pan, Crisper |
| 20 | Pan, Meat |
| 22 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 23 | Reflector, Shelf |
| 24 | Glass, Shelf Cantilever |
| 25 | Shelf, Frame Cantilever Full |
| 26 | Trim, Shelf |
| 27 | Reflector, Shelf Full Cantilever |
| 28 | Glass, Shelf Full Cantilever |
| 30 | Pan Shelf, Cantilever |
