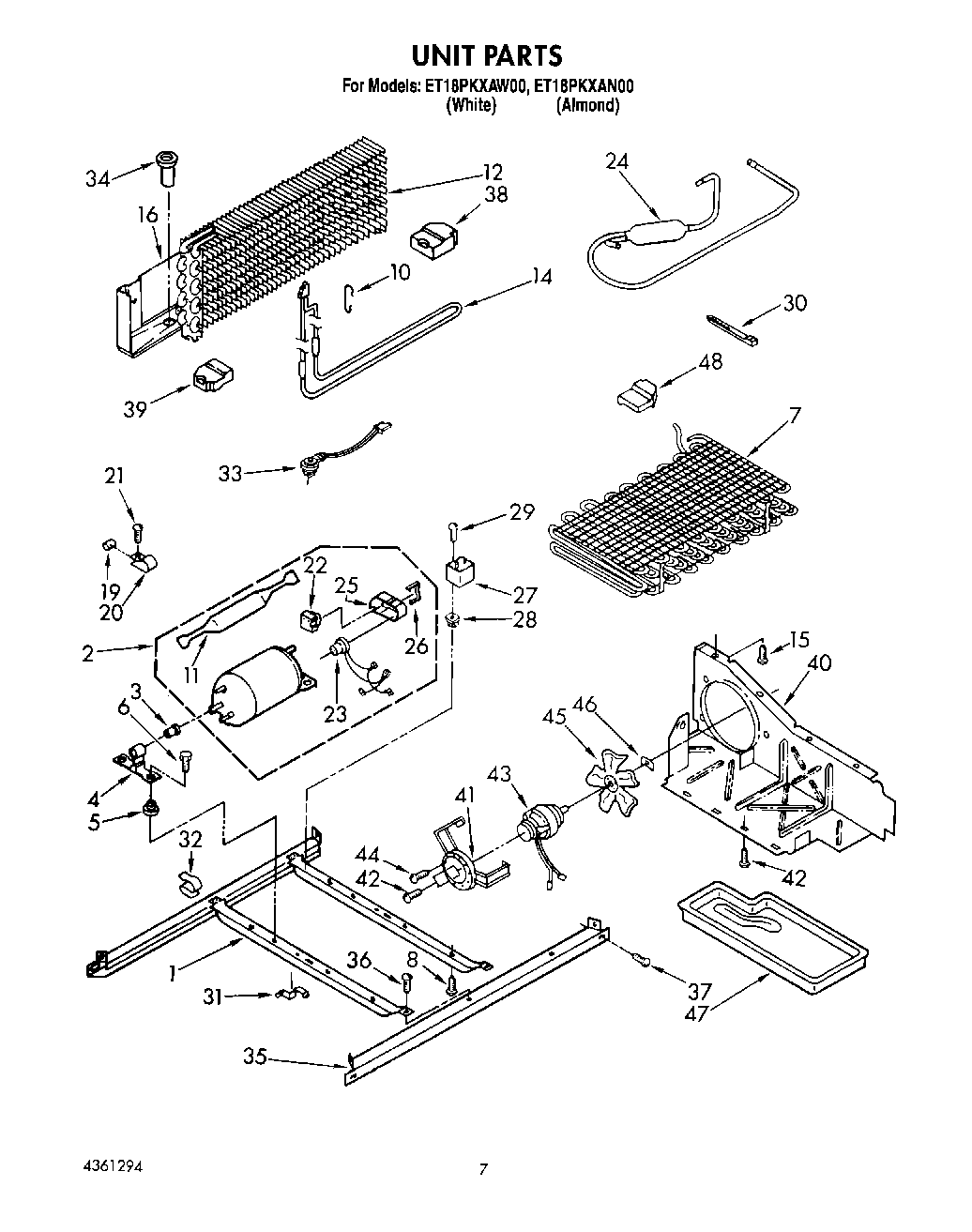

ET18PKXAW00 06 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor KIt Includes Items (11, 17, 22, 23, 25, 26, 27)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
8	WP489464 Whirlpool Refrigerator Screw
10	Support, Heater
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	Tube, Condenser To Fluid Valve
14	Heater, Defrost
16	Drain Pan & Heat Shield
17	Tube Fluid Valve To Heat Loop
18	Capacitor, Start
19	Dampener (2)
20	Tube Clamp (2)
21	WP489478 Whirlpool Refrigerator Screw
22	Relay (See Overload)
23	Overload (Service (Includes Relay))
23	Overload (Production (Includes Relay))
24	Muffler
25	Terminal Cover (Service)
26	Strap, Cover
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	WPW10339879 Whirlpool Wire Tie
31	Clip (2)
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34	Drain Fitting
35	Unit, Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
38	Support (R.S.)
39	Support (L.S.)
40	Air, Baffle
41	Fan, Mounting Bracket
42	Screw, 8 x 3/8
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	876764 Whirlpool Refrigerator Primary Valve
48	Wedge, Air Baffle
48	VALVE, ACCESS (1/2“)
48	WP978025 Whirlpool Refrigerator Valve
48	978030 Whirlpool Refrigerator Valve
48	978027 Whirlpool Refrigerator Primary Valve
48	978026 Whirlpool Refrigerator Primary Valve
48	VALVE, ACCESS (5/8“)
