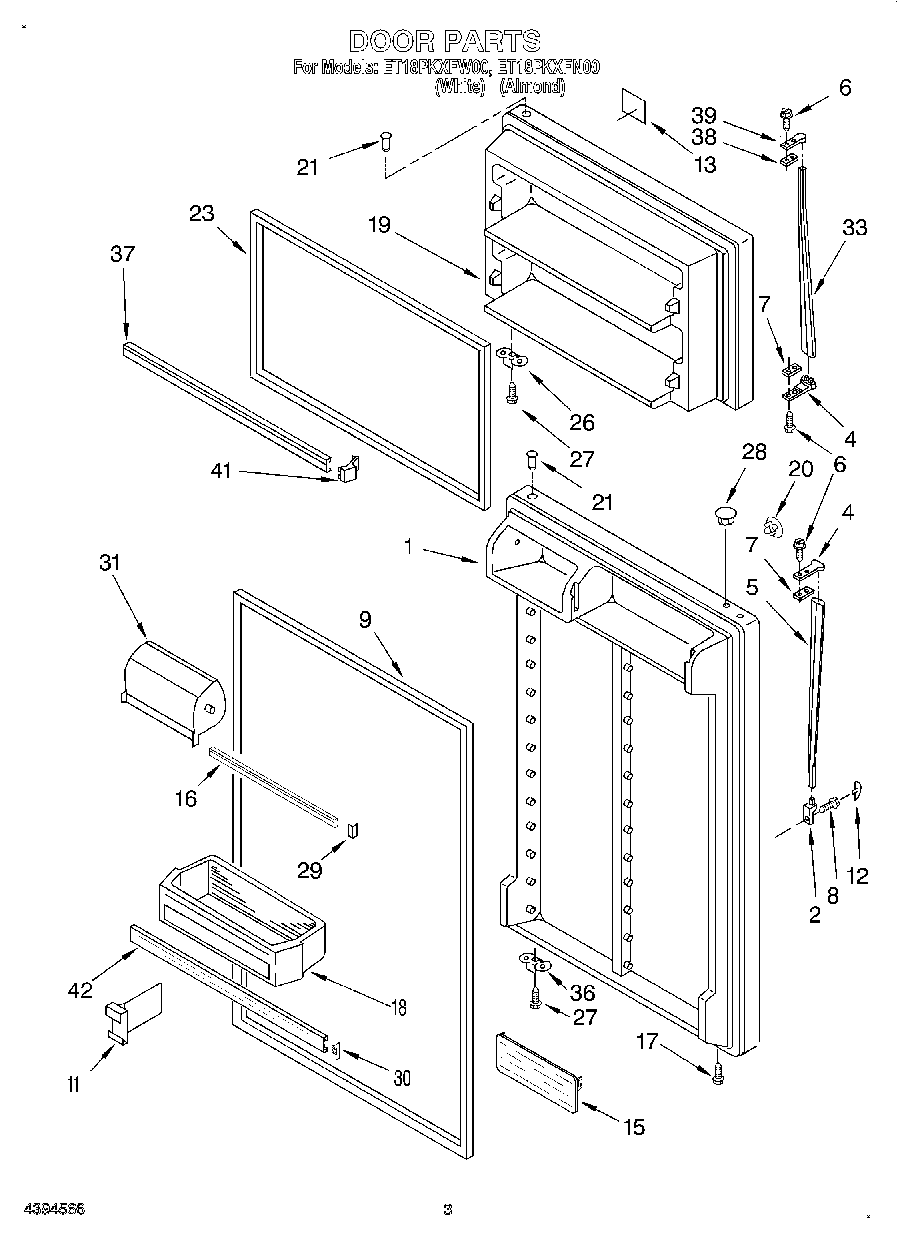

| 1 | Refrigerator Door (Includes No.9 & No.21) (Almond) |
| 1 | Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White) |
| 2 | 819342 Whirlpool Refrigerator Endcap Kit |
| 5 | Handle, Center (Almond) |
| 5 | WP2162555 Whirlpool Refrigerator White Door Handle |
| 6 | WP488920 Whirlpool Refrigerator Screw |
| 7 | Spa |
| 8 | WP488729 Whirlpool Refrigerator Door Screw |
| 9 | 2159057 Whirlpool Refrigerator Fresh Food Door Gasket |
| 11 | Divider (3) |
| 12 | Cover, Screw (Almond) |
| 12 | Cover, Screw (White) |
| 13 | Nameplate (Almond Model) |
| 13 | Nameplate (White) |
| 15 | WP2188234 Whirlpool Shelf |
| 16 | TRIM-DOOR |
| 17 | WP8281206 Whirlpool Refrigerator Screw |
| 18 | Door Bin (3) |
| 19 | Freezer Door (Includes No.22 & No.23) (Almond) |
| 19 | Freezer Door (Includes Illus. 4, 17 & 18) (White) |
| 20 | Hole Plug (Almond) |
| 20 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 21 | WP2183003 Whirlpool Thimble |
| 23 | 2159327 Whirlpool Refrigerator Door Gasket |
| 26 | W11745278 Whirlpool Bracket |
| 27 | WP488921 Whirlpool Refrigerator Screw |
| 28 | Hole Plug (Almond) |
| 28 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 29 | ENDCAP-TRM |
| 30 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 31 | WP2218113 Whirlpool Dairy Door |
| 33 | Handle, F.C. (Almond) |
| 36 | Bracket, Door Stop |
| 37 | Trim, Door Shelf (2) |
| 38 | Shim, Handle |
| 41 | ENDCAP |
| 42 | Trim, Door Shelf |
