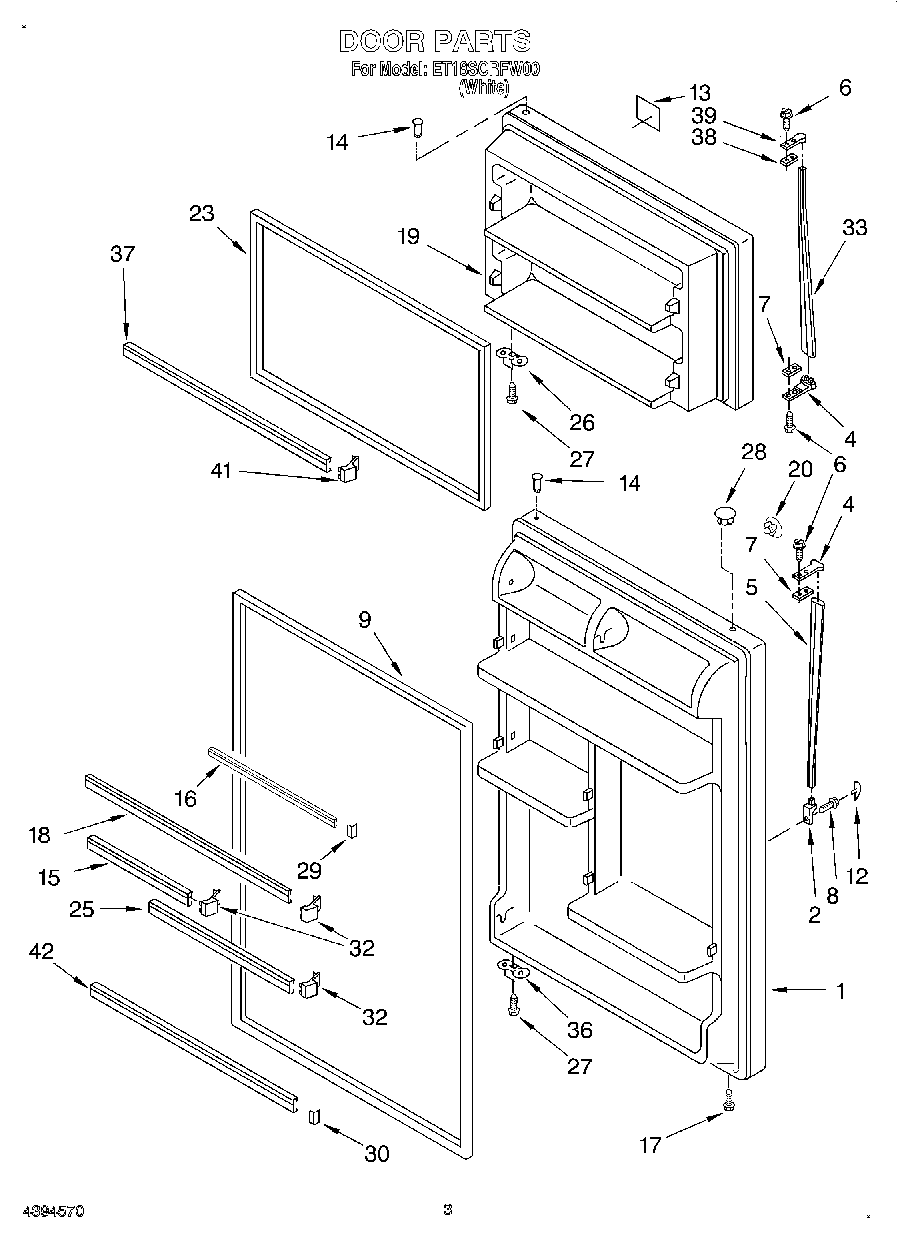

| 1 | Refrigerator Door (Includes No.9 & No.22) (White) |
| 4 | 819342 Whirlpool Refrigerator Endcap Kit |
| 5 | Handle, Center |
| 6 | WP488920 Whirlpool Refrigerator Screw |
| 7 | Spa |
| 8 | WP488729 Whirlpool Refrigerator Door Screw |
| 9 | 2159057 Whirlpool Refrigerator Fresh Food Door Gasket |
| 12 | WP1101634 Whirlpool Refrigerator Cover |
| 13 | Nameplate (White) |
| 14 | WP2183003 Whirlpool Thimble |
| 15 | Trim, Door Shelf |
| 16 | TRIM-DOOR |
| 17 | WP8281206 Whirlpool Refrigerator Screw |
| 18 | Trim, Door Shelf |
| 19 | Freezer Door (Includes Illus. 4, 17 & 18) (White) |
| 20 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 23 | 2159327 Whirlpool Refrigerator Door Gasket |
| 25 | WP2195943 Whirlpool Shelf Retainer Bar |
| 26 | W11745278 Whirlpool Bracket |
| 27 | WP488921 Whirlpool Refrigerator Screw |
| 28 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 29 | ENDCAP-TRM |
| 30 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 32 | WP2195915 Whirlpool Door Shelf Support |
| 33 | Handle, Center |
| 36 | Bracket, Door Stop |
| 37 | Trim, Door Shelf (2) |
| 38 | Shim, Handle |
| 41 | ENDCAP |
| 42 | Trim, Door Shelf |
