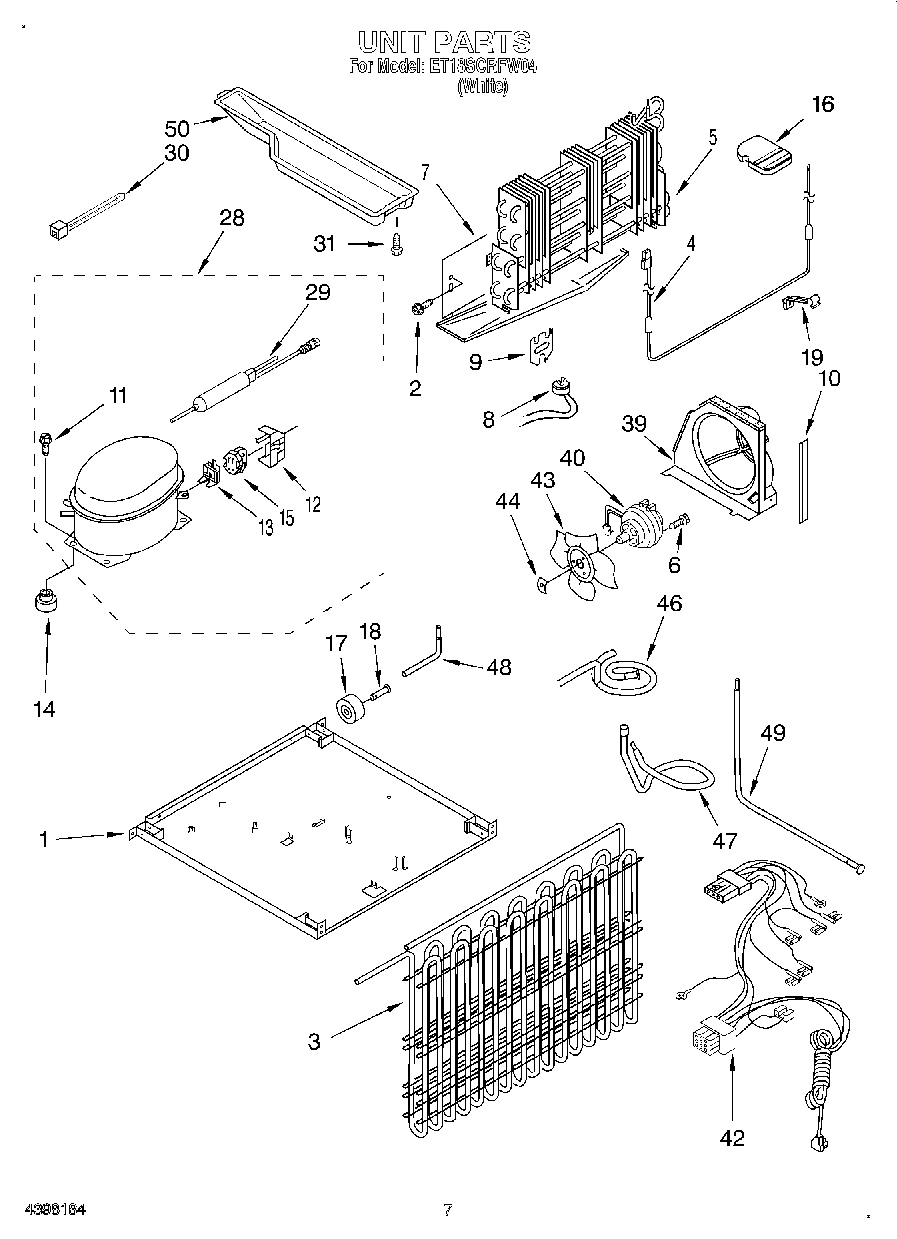

ET18SCRFW04 04 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP489478 Whirlpool Refrigerator Screw
3	Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WP8281196 Whirlpool Screw
7	Drain Pan
8	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9	Bracket, Heater
10	Extension, Air Baffle
12	WP2162358 Whirlpool Refrigerator Terminal Cover
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP4387938 Whirlpool Refrigerator Overload
16	Support Block
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	W11594405 Whirlpool Axle
19	Clip, Heater
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10823815 Whirlpool Refrigerator Compressor
28	Installation Kit
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	Screw
39	Air Baffle
40	W10822259 Whirlpool Refrigerator Condenser Fan Motor
42	Wire Assy. Unit
43	Blade, Fan
44	WP486692 Whirlpool Refrigerator Nut
46	Tube, Discharge
47	Tube, Suction
48	W10528578 Whirlpool Refrigerator Tube
49	Tube, Condenser To Heat Loop
50	VALVE, ACCESS (1/2“)
50	WP978025 Whirlpool Refrigerator Valve
50	VALVE, ACCESS (5/8“)
50	978030 Whirlpool Refrigerator Valve
50	876764 Whirlpool Refrigerator Primary Valve
50	Start Kit
50	Evap. Tray
50	978027 Whirlpool Refrigerator Primary Valve
50	978026 Whirlpool Refrigerator Primary Valve
