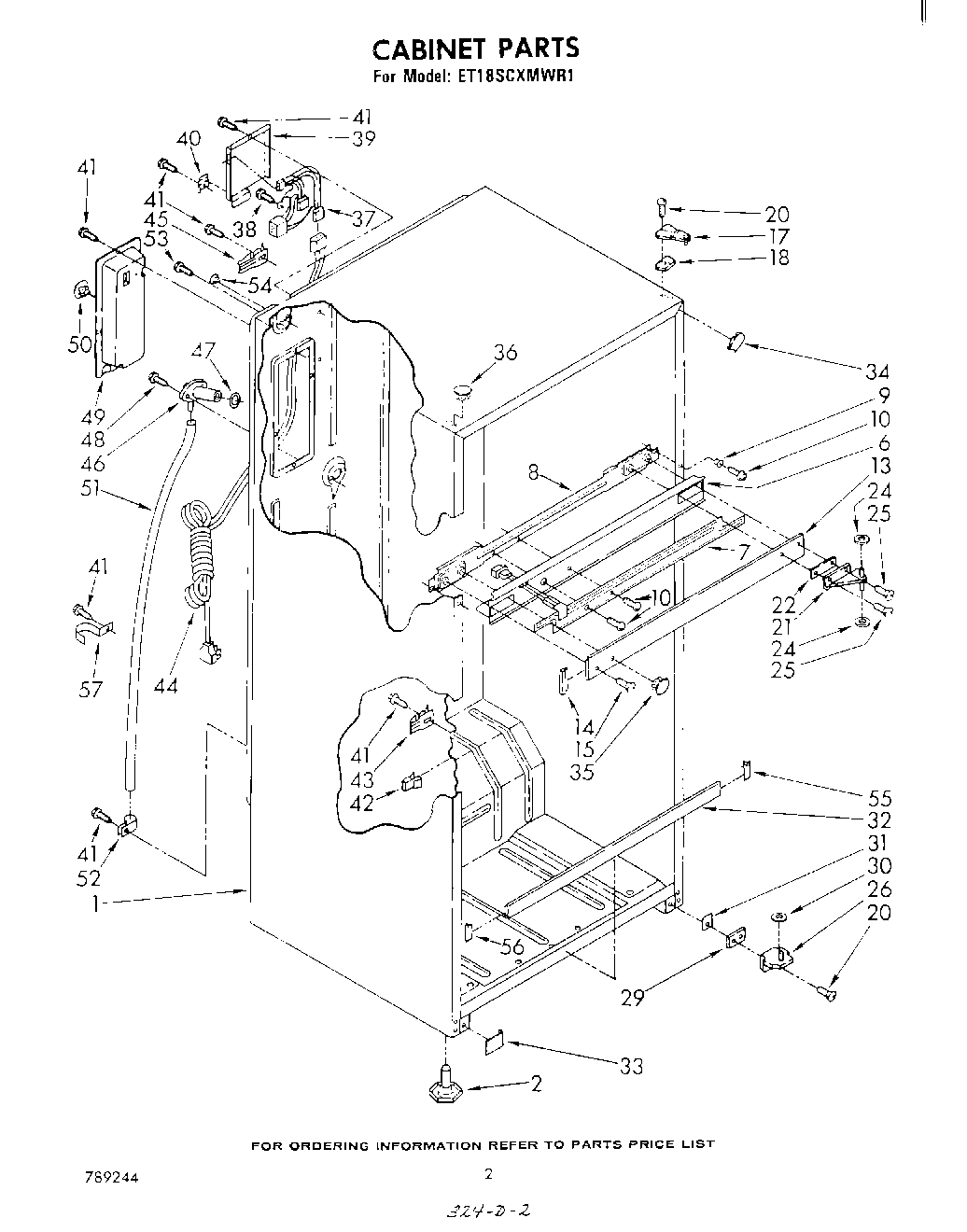

ET18SCXMWR1 02 – CABINET

ET18SCXMWR1 02 – CABINET

Written by

in

ET18SCXMWR1 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
6	Frame, Center Rail
7	Heater, Mullion
8	Center Rail, Bracket
9	Ferrule, Center Rail
10	Screw, 8-32 x 1/2
13	Center Rail (White)
13	Center Rail (Coffee)
13	Center Rail (Almond)
13	Center Rail (Golden Harvest)
14	Filler, Center Rail (2) (White)
14	Filler, Center Rail (2) (Almond)
14	Filler, Center Rail (2) (Coffee)
14	Filler, Center Rail (2) (Golden Harvest)
15	Screw, 10-32 x 3/8
17	Shim, Hinge Top
18	Shim, Hinge
21	Hinge, Center
22	Shim, Hinge Center
22	Shim, Center (Repair)
24	WP488296 Whirlpool Washer Refrigerator
25	Screw (Repair)
25	WP999367 Whirlpool Refrigerator Screw
26	Hinge, Bottom R.H.
29	WPL 1100779
29	WPL 1100780
29	WPL 1100781
29	Shim, Bottom Hinge (
30	WP487802 Whirlpool Refrigerator Washer
31	WPL 942819
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
32	WPL 943689
32	WPL 943687
32	WPL 943686
32	WPL 943685
33	WPL 944832
33	WPL 943552
33	WPL 944831
33	WPL 944833
34	WPL 942811
34	WPL 942807
34	WPL 942809
34	WPL 942808
35	Hole Plug (2)
35	Hole Plug (2) (Coffee)
35	Hole Plug (2) (Almond)
35	Hole Plug (2) (Golden Harvest)
36	Hole Plug (2) (White)
36	Hole Plug (Coffee)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (2) (Almond)
37	WPL 942844
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 942845
40	WPL 944741
41	W11624204 Whirlpool Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	Gasket, Seal
48	WP98165 Whirlpool Screw
49	WPL 942853
50	WPL 655411
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489069 Whirlpool Compactor Screw
54	940014 Whirlpool Refrigerator Primary Button Plug
55	WPL 944702
55	WPL 944701
55	WPL 944700
55	WPL 944703
56	WPL 944705
56	WPL 944706
56	WPL 944707
56	WPL 944708
57	WPL 1103015
