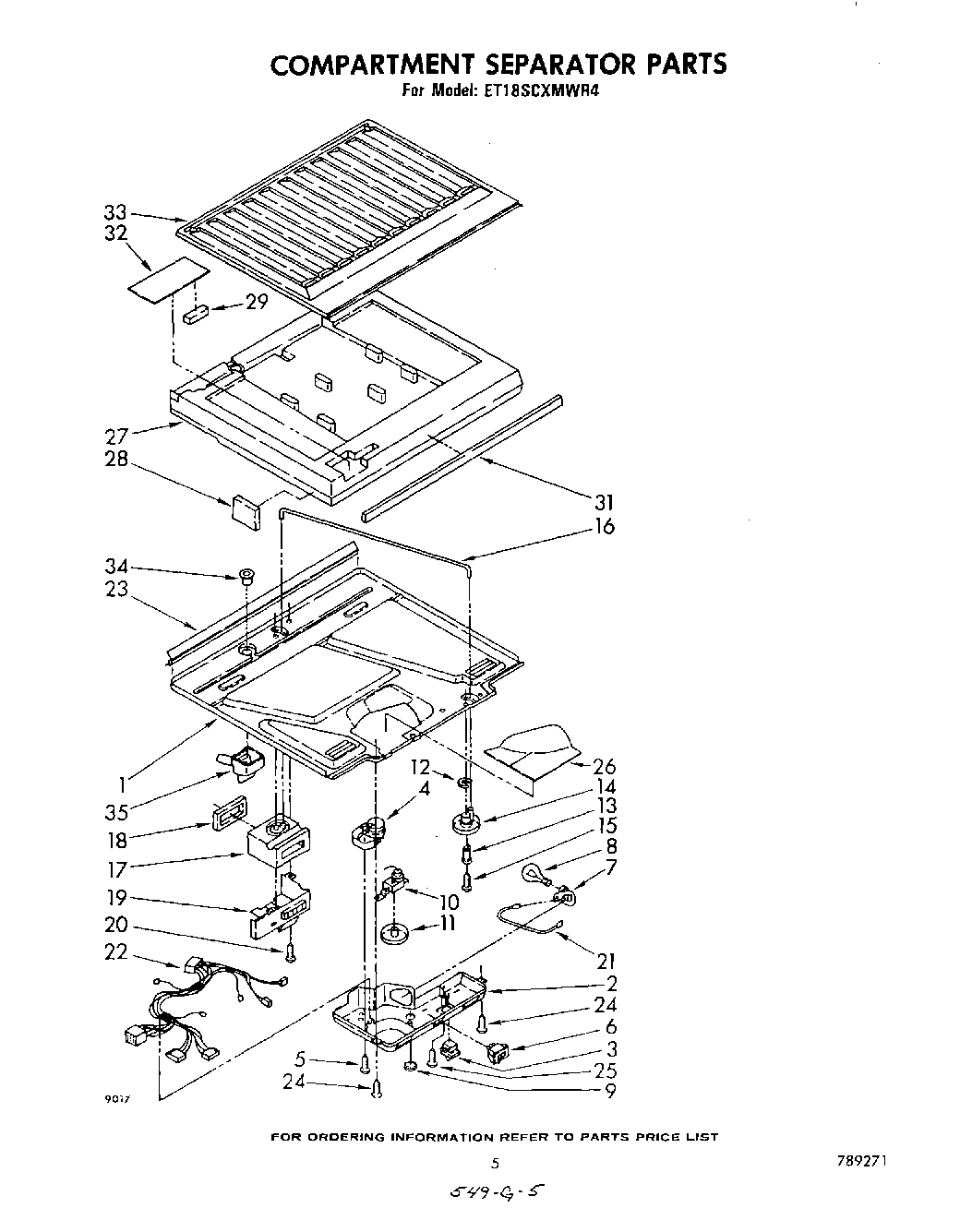

ET18SCXMWR4 04 – COMPARTMENT SEPARATOR

Products

Position	Product
1	Bottom, Compartment Separator
2	Box, Control
3	W11384469 Whirlpool Door Switch
4	Defrost Timer (10 Hr.)
5	WP487353 Whirlpool Refrigerator Screw
6	WP938213 Whirlpool Refrigerator Power Switch
7	4387478 Whirlpool Refrigerator Light Socket
8	W11679940 Whirlpool Refrigerator Light Bulb Assembly
9	940014 Whirlpool Refrigerator Primary Button Plug
10	1123394 Whirlpool Cold Control Thermostat
11	Knob, Thermostat
12	Lockwasher
13	Spacer, Knob
14	Knob, Air Control
15	WP488163 Whirlpool Refrigerator Screw
16	Rod, Connecting
17	Air Diffuser Assembly
18	Gasket, Air Diffuser
19	Cover, Air Diffuser
20	WP489069 Whirlpool Compactor Screw
21	Wiring Assembly
22	Wiring, Assembly Control Box
23	Gasket, Bottom Separator
24	WP250830 Whirlpool Refrigerator Screw
25	Screw, 8-15 x 1-1/2
26	Insulation, Filler
27	Insulation, Compartment Separator
28	Pad (2)
29	Protector, Wiring
31	Insulation, Center Rail
32	Shield, Compartment Separator
33	Separator, Compartment (Top)
34	Drain Insert, Separator
35	Cup, Drain
