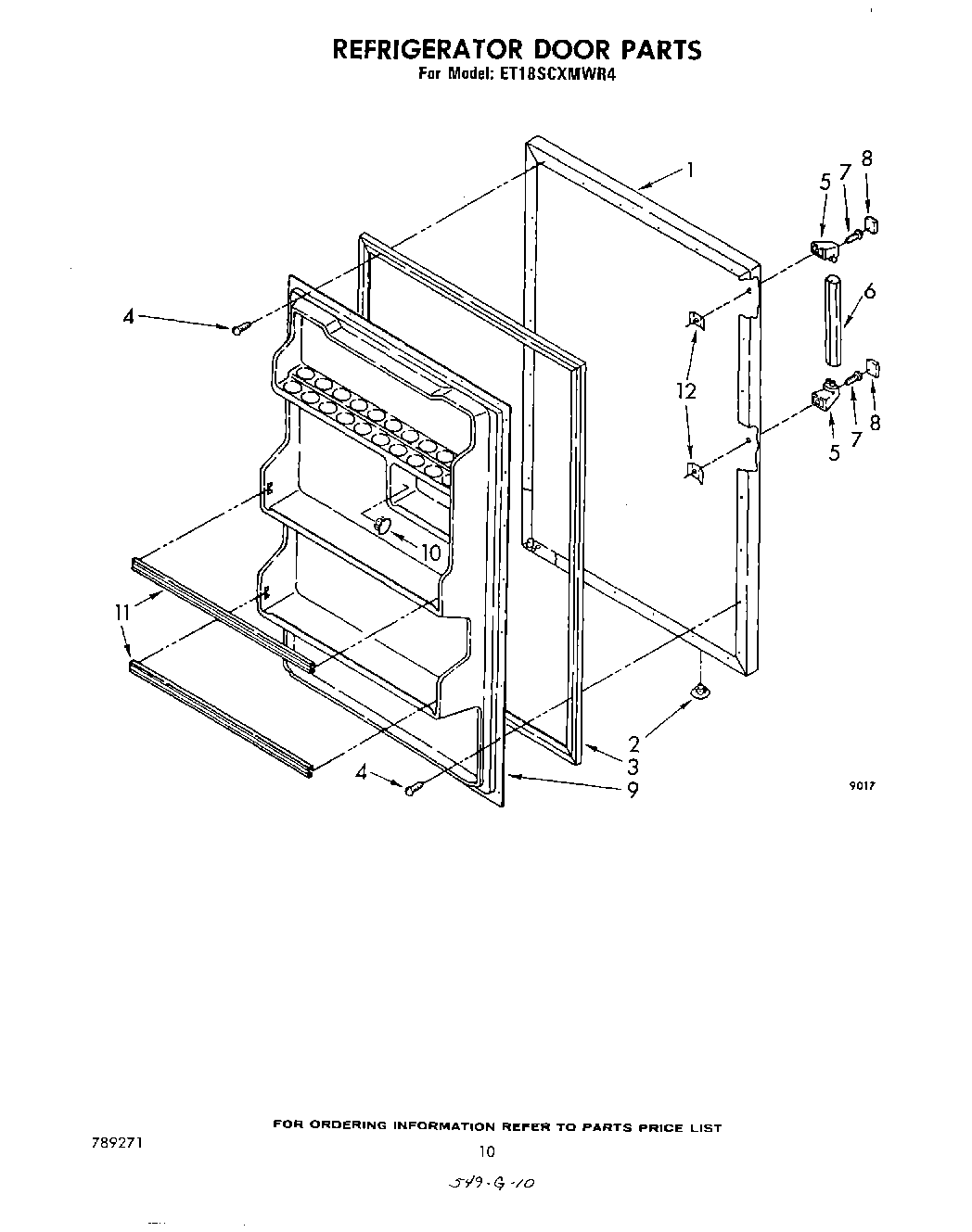

ET18SCXMWR4 08 – REFRIGERATOR DOOR , PARTS NOT ILLUS

ET18SCXMWR4 08 – REFRIGERATOR DOOR , PARTS NOT ILLUS

Written by

in

ET18SCXMWR4 08 – REFRIGERATOR DOOR , PARTS NOT ILLUS

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT110603
350942 Whirlpool Spray Paint
WPL 677818
WPL 677821
WPL LIT1105320
WPL 677967
285006 Whirlpool Spray
WPL 677813
WPL LIT789271
Golden Harvest
WPL LIT946417
350956 Whirlpool Spray Assembly
Leveler (Thinner)
1Panel, Refrigerator Door (Golden Harvest)
1Panel, Refrigerator Door (Almond)
1Panel, Refrigerator Door (White)
2Hole Plug (2)
3Door Gasket, Magnetic
4SCREW
4WP489069 Whirlpool Compactor Screw
5End, Handle (2) (White)
6Handle, Center
7Screw, 8-15 x 1-5/8
8Cover, End Door Handle (2)
9Interior Door Panel (For Platinum Model Only)
10Hole Plug (2)
11Trim, Door (2)
12Silicone (Spray)
12Almond (Uncut)
12WP505587 Whirlpool Refrigerator Sealer
1272032 Whirlpool Touch Up Paint Black
12799344 Whirlpool Refrigerator Paint
12WP72107 Whirlpool Touchup
1272110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
12Golden Harvest (Uncut)
12212643 Whirlpool Refrigerator Permagum Sealer
12511873 Whirlpool Refrigerator Paint
12606755 Whirlpool Refrigerator Bag
12833938 Whirlpool Refrigerator Terminal
12876370 Whirlpool Refrigerator Insulation
12WP503695 Whirlpool Refrigerator Sealer
12WP542638 Whirlpool Refrigerator Grease
12TAPE, VINYL (3/4 X 108“)
12CEMENT, ALUMILASTIC (1 1/4 OZ.)
12WPL 799832
12WPL 799833
12WPL 876029
12WP939101 Whirlpool Refrigerator Plate
1272017 Whirlpool Appliance Touch-Up Paint White
