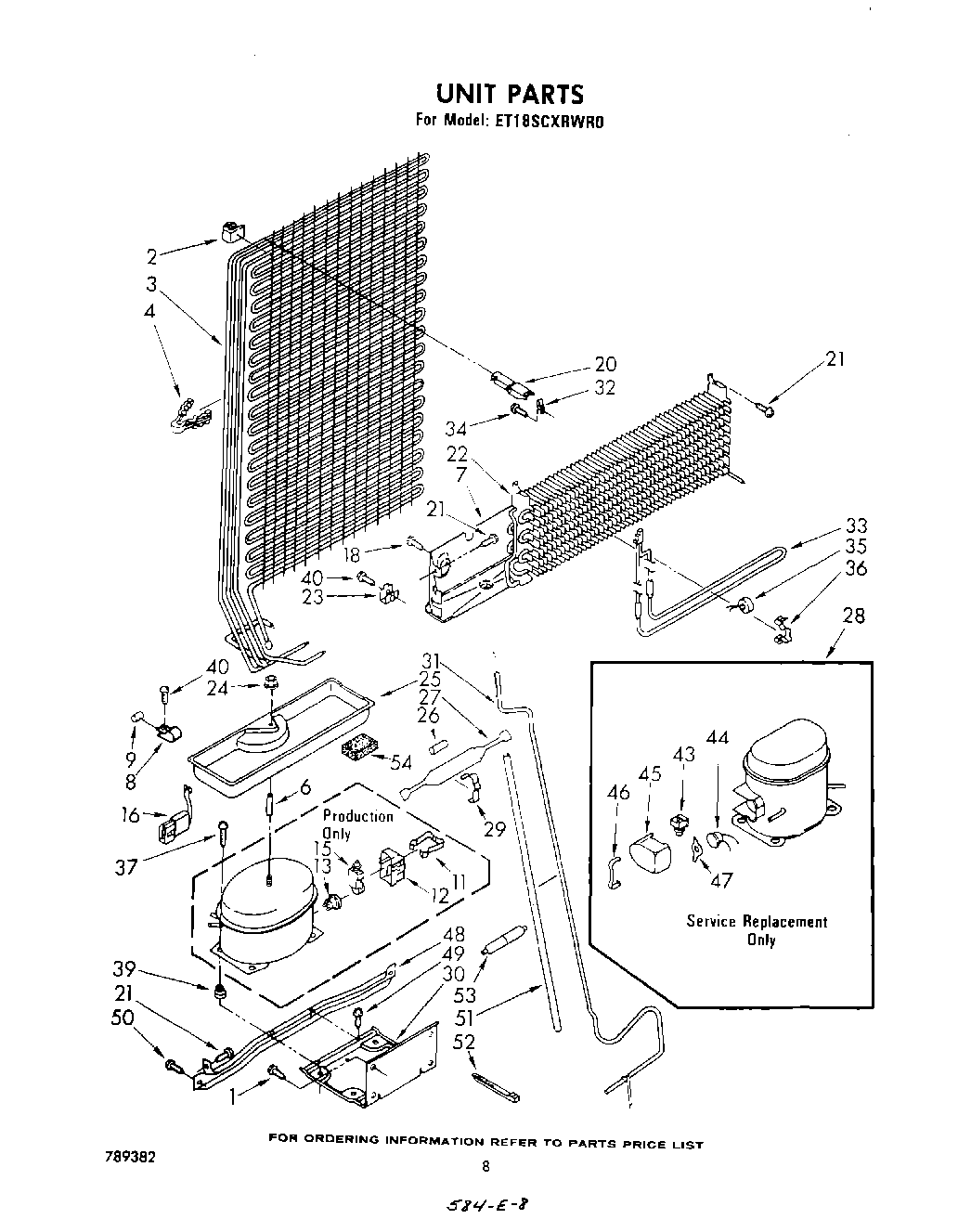

ET18SCXRWR0 07 – UNIT

Products

Position	Product
1	WP250830 Whirlpool Refrigerator Screw
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
11	Strap
12	Cover, Terminal
13	Overload
15	Relay
16	Housing Plug
20	Condenser, Stand-Off
21	W11624204 Whirlpool Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	W10439652 Whirlpool Refrigerator Compressor
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
34	Screw, 8 x 3/8
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
40	Screw, 8-32 x 1/2
43	Relay
44	Overload
45	Cover, Terminal
46	Cover, Spring
47	Spring, Overload
48	Rail, Unit Mounting
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
51	WP2002171 Whirlpool Refrigerator Sleeve
52	Strap
53	Muffler
54	Pad, Sound
54	876764 Whirlpool Refrigerator Primary Valve
54	978026 Whirlpool Refrigerator Primary Valve
54	VALVE, ACCESS (5/8“)
54	978027 Whirlpool Refrigerator Primary Valve
54	978030 Whirlpool Refrigerator Valve
54	WP978025 Whirlpool Refrigerator Valve
54	VALVE, ACCESS (1/2“)
