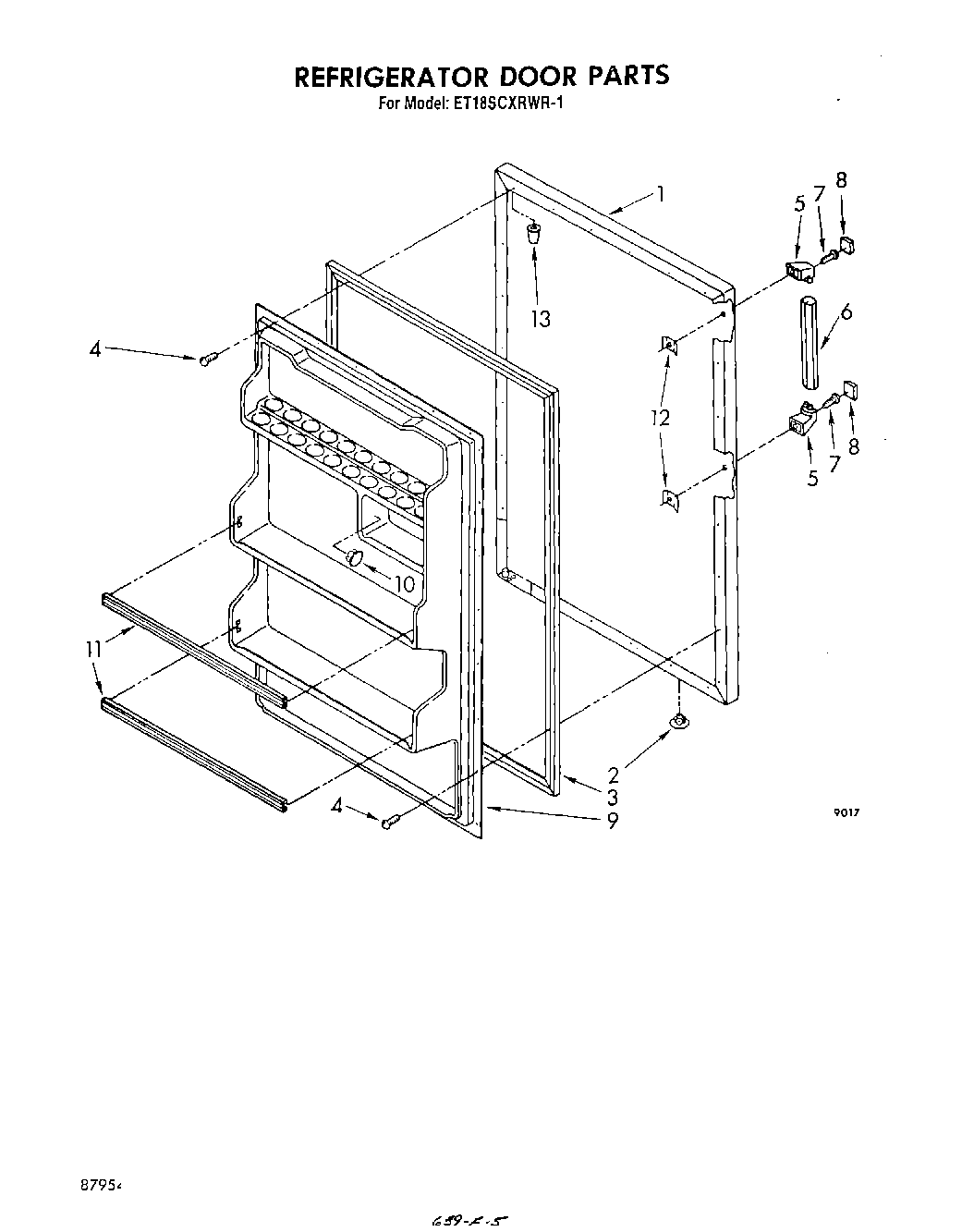

ET18SCXRWR1 08 – REFRIGERATOR DOOR, NOT ILLUSTRATED

ET18SCXRWR1 08 – REFRIGERATOR DOOR, NOT ILLUSTRATED

Written by

in

ET18SCXRWR1 08 – REFRIGERATOR DOOR, NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT1109134
WPL LIT1105245
WPL LIT1106168
285006 Whirlpool Spray
WPL LIT879548
350942 Whirlpool Spray Paint
Leveler (Thinner)
1Panel, Refrigerator Door (Also Order Item 16) (White)
2Hole Plug (2)
3Door Gasket, Magnetic
4WP489069 Whirlpool Compactor Screw
4SCREW
5End, Handle (2) (White)
6Handle, Center
7Screw, 8-15 x 1-5/8
8Cover, End Door Handle (2)
9Interior Door Panel (For Platinum Model Only)
10Hole Plug (2)
11Trim, Door (2)
12WP939101 Whirlpool Refrigerator Plate
1372017 Whirlpool Appliance Touch-Up Paint White
13Silicone (Spray)
13799344 Whirlpool Refrigerator Paint
13212643 Whirlpool Refrigerator Permagum Sealer
13Cap, Hinge Sleeve (2)
13511873 Whirlpool Refrigerator Paint
13606755 Whirlpool Refrigerator Bag
13833938 Whirlpool Refrigerator Terminal
13876370 Whirlpool Refrigerator Insulation
13WP503695 Whirlpool Refrigerator Sealer
13WP505587 Whirlpool Refrigerator Sealer
13WP542638 Whirlpool Refrigerator Grease
13TAPE, VINYL (3/4 X 108“)
13CEMENT, ALUMILASTIC (1 1/4 OZ.)
13WPL 799832
13WPL 799833
1372032 Whirlpool Touch Up Paint Black
13WPL 876029
