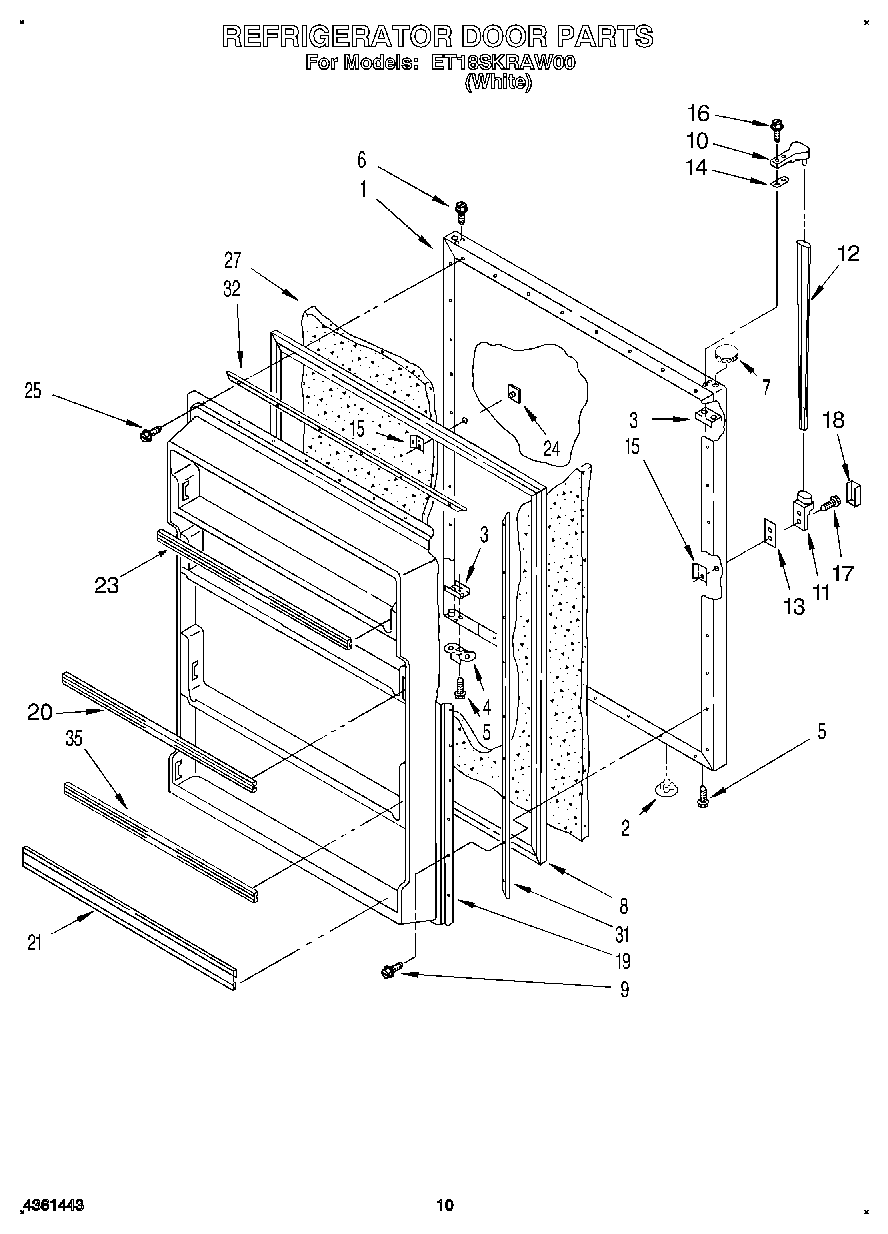

ET18SKRAW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

ET18SKRAW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

ET18SKRAW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2162795
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	WPL LIT4361443
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT2154075
	WPL LIT2162617
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	WP2191883 Whirlpool Refrigerator Handle Endcap
11	WP2183139 Whirlpool Refrigerator Handle End Cap
12	Handle, Center
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WPW10250570 Whirlpool Refrigerator Cabinet Roller
19	Interior Door Panel
21	Trim, Door Shelf
23	Trim, Door Shelf
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
31	Retainer, Gasket Side (2)
32	WPL 1115137
35	350956 Whirlpool Spray Assembly
35	Leveler (Thinner)
35	WP72107 Whirlpool Touchup
35	Trim, Door Shelf
35	350930 Whirlpool White Spray Paint
35	799344 Whirlpool Refrigerator Paint
35	WP503695 Whirlpool Refrigerator Sealer
35	72017 Whirlpool Appliance Touch-Up Paint White
35	Almond (Uncut)
35	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
35	606755 Whirlpool Refrigerator Bag
35	833938 Whirlpool Refrigerator Terminal
35	876370 Whirlpool Refrigerator Insulation
35	WP505587 Whirlpool Refrigerator Sealer
35	WP542638 Whirlpool Refrigerator Grease
35	350942 Whirlpool Spray Paint
35	TAPE, VINYL (3/4 X 108“)
35	CEMENT, ALUMILASTIC (1 1/4 OZ.)
35	WPL 799833
35	WPL 876029
35	212643 Whirlpool Refrigerator Permagum Sealer
35	Golden Harvest (Uncut)
35	285006 Whirlpool Spray
35	72032 Whirlpool Touch Up Paint Black
35	Golden Harvest
35	511873 Whirlpool Refrigerator Paint
