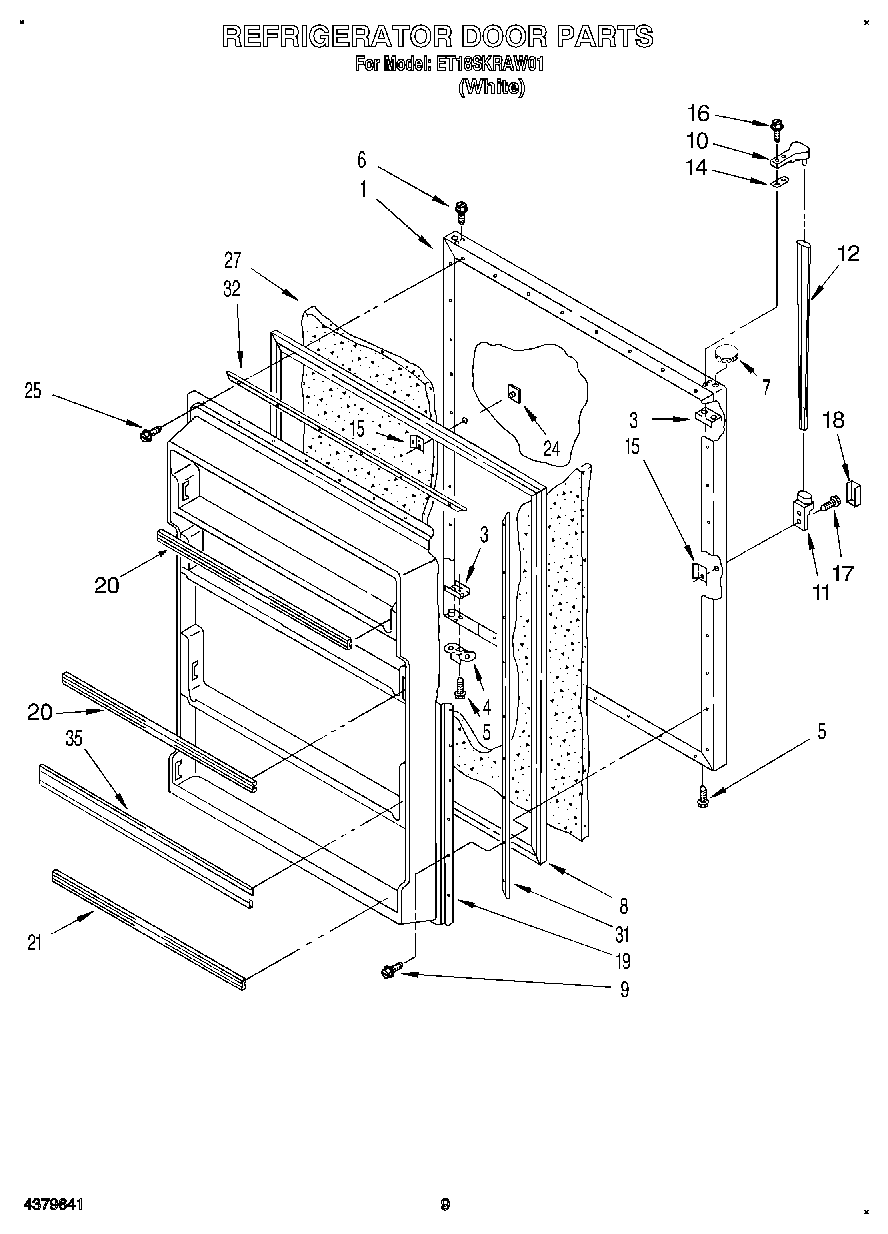

ET18SKRAW02 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

ET18SKRAW02 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

ET18SKRAW02 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2162795
W11729596 Whirlpool Ice Maker Field Install Kit
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
Torx Key
WPL LIT2175808
WPL LIT677971
WPL LIT2154075
1Panel, Refrigerator Door (Also Order Item 27) (White)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door Shelf
21Trim, Door Shelf
24WP2189000 Whirlpool Refrigerator Handle Plug
31Retainer, Gasket Side (2)
32WPL 1115137
3572017 Whirlpool Appliance Touch-Up Paint White
35WP542638 Whirlpool Refrigerator Grease
35350956 Whirlpool Spray Assembly
35WP505587 Whirlpool Refrigerator Sealer
35876370 Whirlpool Refrigerator Insulation
35350930 Whirlpool White Spray Paint
35WP503695 Whirlpool Refrigerator Sealer
35833938 Whirlpool Refrigerator Terminal
35606755 Whirlpool Refrigerator Bag
35Trim, Door Shelf
35511873 Whirlpool Refrigerator Paint
35799344 Whirlpool Refrigerator Paint
35Golden Harvest
35WP72107 Whirlpool Touchup
35Golden Harvest (Uncut)
35212643 Whirlpool Refrigerator Permagum Sealer
3572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
35Almond (Uncut)
35WPL 876029
35WPL 799833
3572032 Whirlpool Touch Up Paint Black
35CEMENT, ALUMILASTIC (1 1/4 OZ.)
35TAPE, VINYL (3/4 X 108“)
35350942 Whirlpool Spray Paint
35285006 Whirlpool Spray
35Door Reversal Instructions
