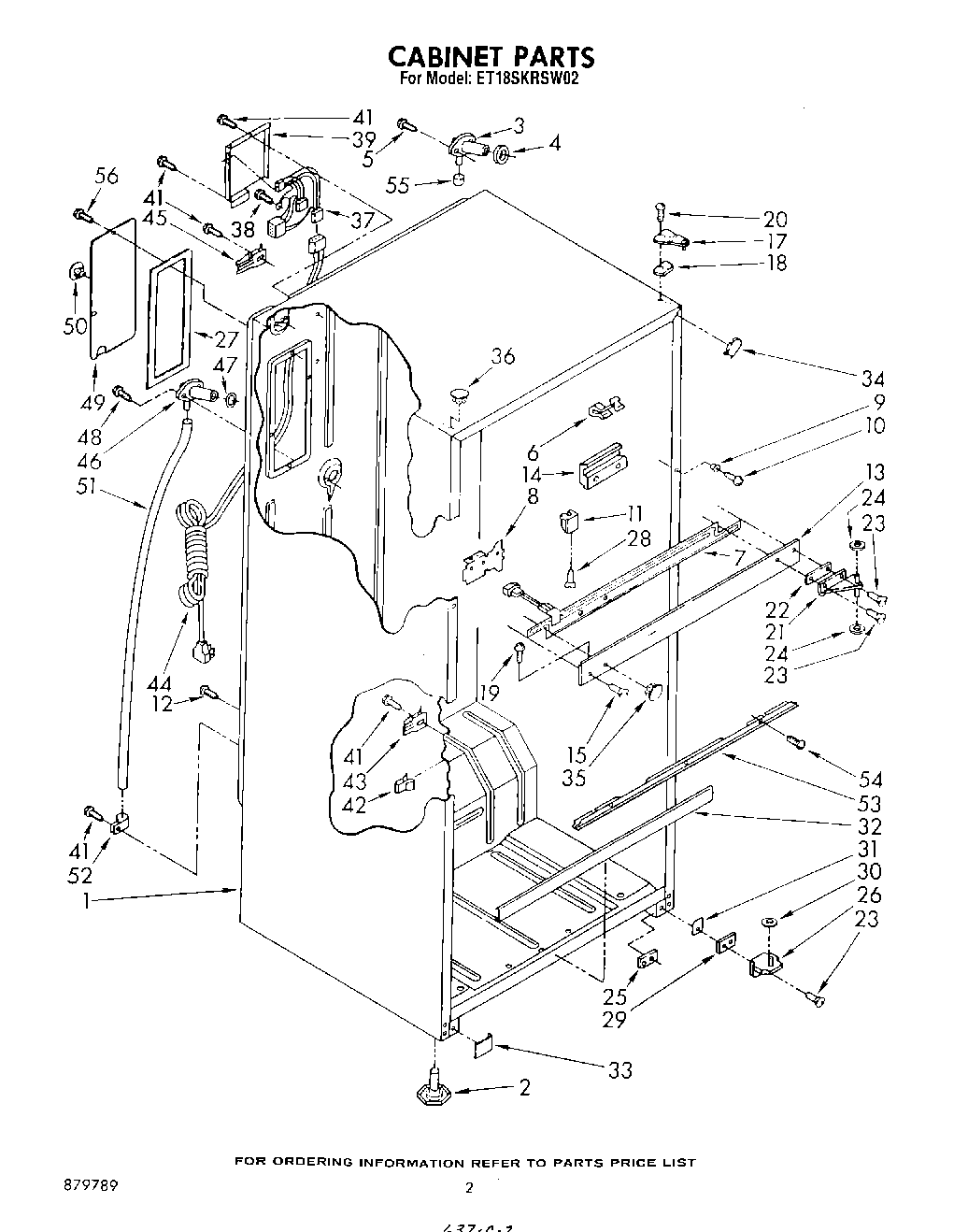

ET18SKRSW02 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
3	WP2196157 Whirlpool Fill Tube
4	WP1106508 Whirlpool Refrigerator Gasket
6	Breaker, Trim Clip
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	Ferrule, Center Rail
10	WPL 488428
11	Spacer (2)
12	WP489069 Whirlpool Compactor Screw
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
17	Shim, Hinge Top
18	Shim, Hinge
19	WP488729 Whirlpool Refrigerator Door Screw
20	WP999367 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Center (Repair)
22	Shim, Hinge Center
23	Screw
24	WP488296 Whirlpool Washer Refrigerator
25	WPL 944813
26	Hinge, Bottom R.H.
27	WPL 1106510
28	Screw, 8 x 7/8
29	Shim, Bottom
30	WP487802 Whirlpool Refrigerator Washer
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (White)
33	WPL 943552
34	WPL 1110684
35	Hole Plug (2)
36	Hole Plug (2) (White)
37	WPL 942844
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 942845
41	W11624204 Whirlpool Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	WP98165 Whirlpool Screw
49	WPL 1106511
50	WPL 655411
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WPL 1110356
54	WPL 489167
55	WP487996 Whirlpool Refrigerator Cap Tube
