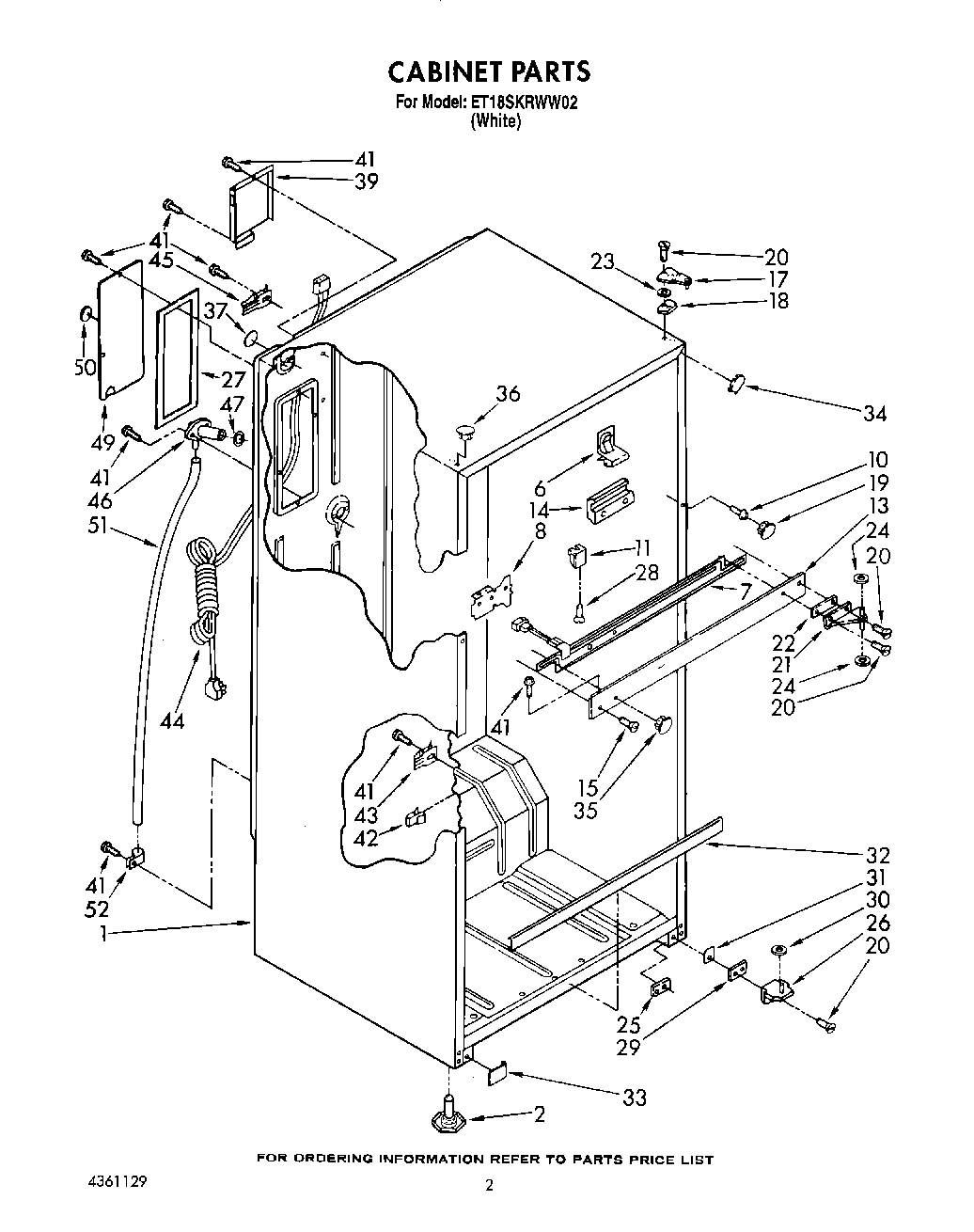

ET18SKRWN02 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
10	Screw, 8-32 x 1/2 (2)
11	Spacer (3)
13	Center Rail (Almond)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
17	Hinge, Top
18	Shim, Hinge Top
19	Hole Plug (2) (White)
19	Hole Plug (2) (Almond)
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP487576 Whirlpool Washer
24	WP489467 Whirlpool Hinge Shim
25	Tap Plate (2)
26	Hinge Butt, Bottom
27	WPL 1106510
28	WP489174 Whirlpool Refrigerator Screw
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Almond)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Almond)
33	WPL 944831
33	WPL 943552
34	WPL 1110685
34	WPL 1110684
35	Hole Plug (White)
35	Hole Plug (Almond)
36	Hole Plug (6) (Almond)
36	WP2151652 Whirlpool Refrigerator Button Plug
37	Hole Seal
39	WPL 942845
41	WP489464 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
