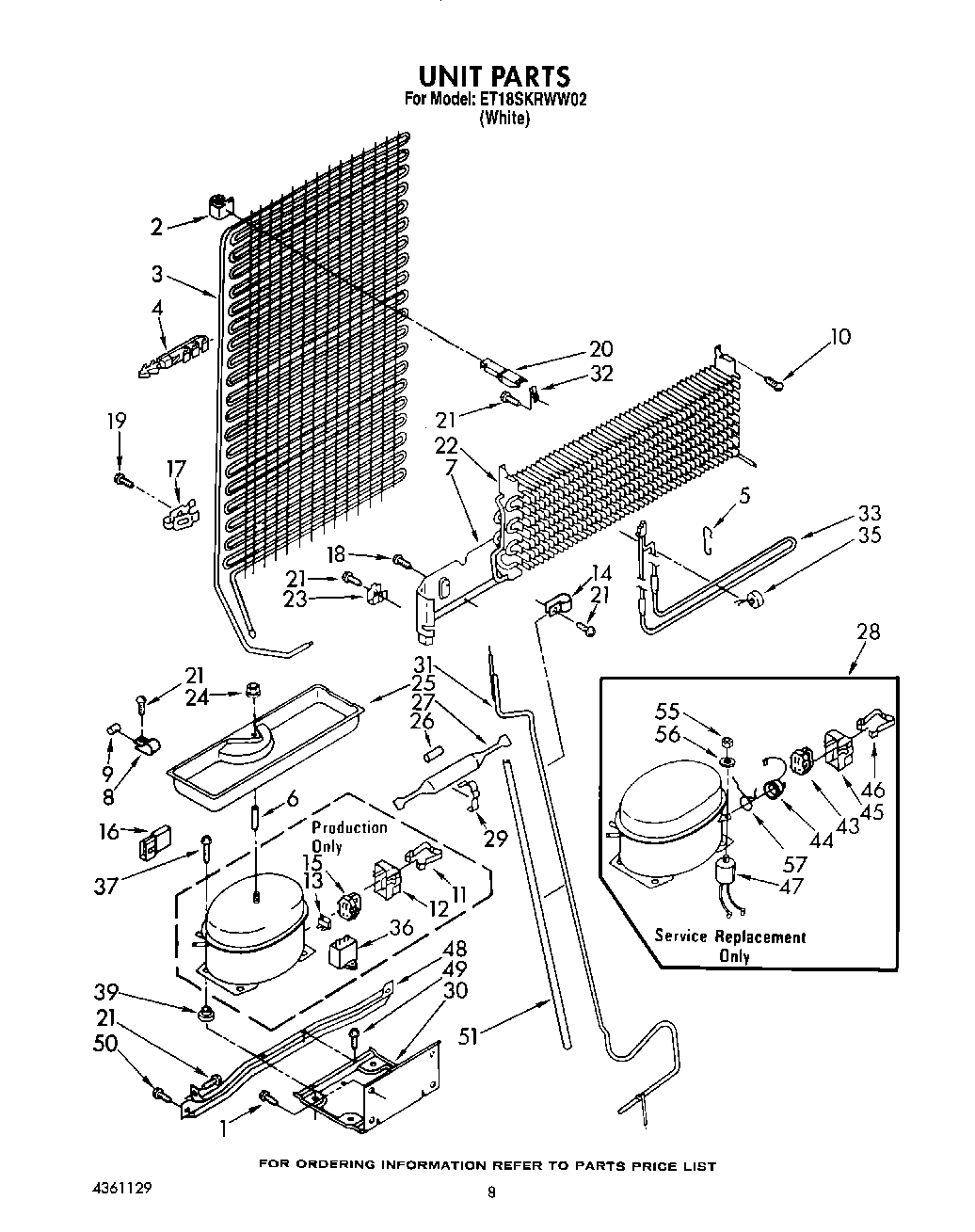

ET18SKRWN02 07 – UNIT

Products

Position	Product
1	WP489427 Whirlpool Refrigerator Screw
2	Bumper (2)
3	Condenser
4	Clip, Tube (2)
5	Support, Heater
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
10	WP489174 Whirlpool Refrigerator Screw
12	Cover
13	Overload
14	Tube, Clamp
16	WP717253 Whirlpool Dishwasher Connector
17	Clip, Tube
19	WP965173 Whirlpool Dishwasher Screw
20	Condenser, Stand-Off
21	Screw, 8-32 x 1/2
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36	WPW10662129 Whirlpool Refrigerator Run Capacitor
39	876811 Whirlpool Grommet
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP489128 Whirlpool Refrigerator Screw
50	Screw, 1/4-28 x 1
51	WP2002171 Whirlpool Refrigerator Sleeve
55	Nut
56	Washer
57	978026 Whirlpool Refrigerator Primary Valve
57	876764 Whirlpool Refrigerator Primary Valve
57	978027 Whirlpool Refrigerator Primary Valve
57	978030 Whirlpool Refrigerator Valve
57	WP978025 Whirlpool Refrigerator Valve
57	VALVE, ACCESS (1/2“)
57	VALVE, ACCESS (5/8“)
57	Overload Spring
