ET18SKRWW01 06 – FREEZER DOOR

ET18SKRWW01 06 – FREEZER DOOR

Written by

in

ET18SKRWW01 06 – FREEZER DOOR

Products

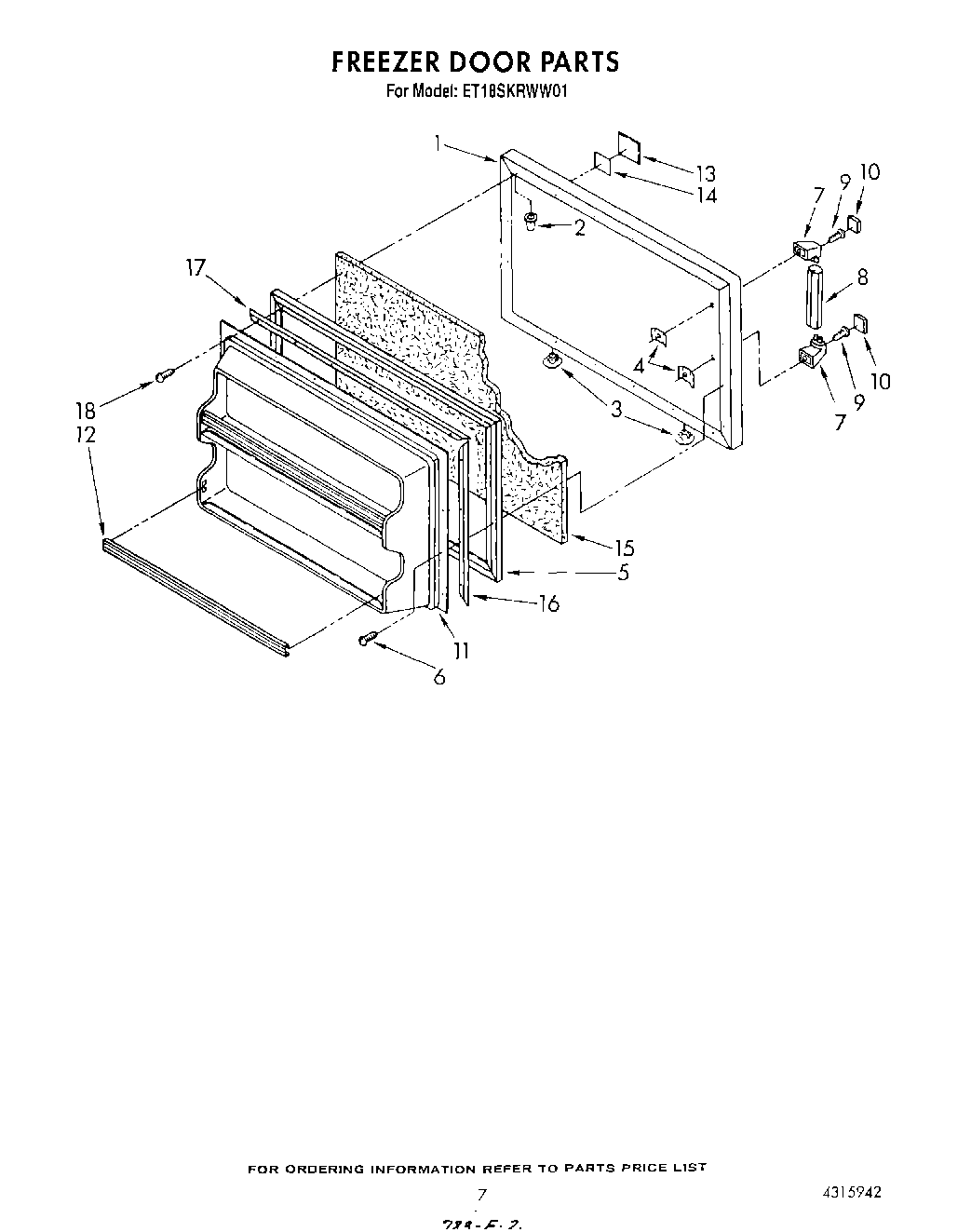

PositionProduct
1Panel, Freezer Door (Also Order Item 15) (White)
1Panel, Freezer Door (Also Order Item 15) (Almond)
2Cap, Hinge Sleeve (2)
3Hole, Plug (2)
4WP939101 Whirlpool Refrigerator Plate
5Door Gasket, Magnetic
6WP489069 Whirlpool Compactor Screw
7End, Handle (2) (White)
8Handle, Center
9Screw, 8-15 x 1-5/8
10Cover, End Door Handle (2)
11Panel, Interior Door (Freezer)
12Trim, Door Shelf
13Nameplate
14Tape Strip
15WPL 876029
16Gasket Retainer, Side (2)
17Gasket Retainer, Top & Bottom (2)
18WP488729 Whirlpool Refrigerator Door Screw
