ET18TMXDW03 02 – FREEZER DOOR

ET18TMXDW03 02 – FREEZER DOOR

Written by

in

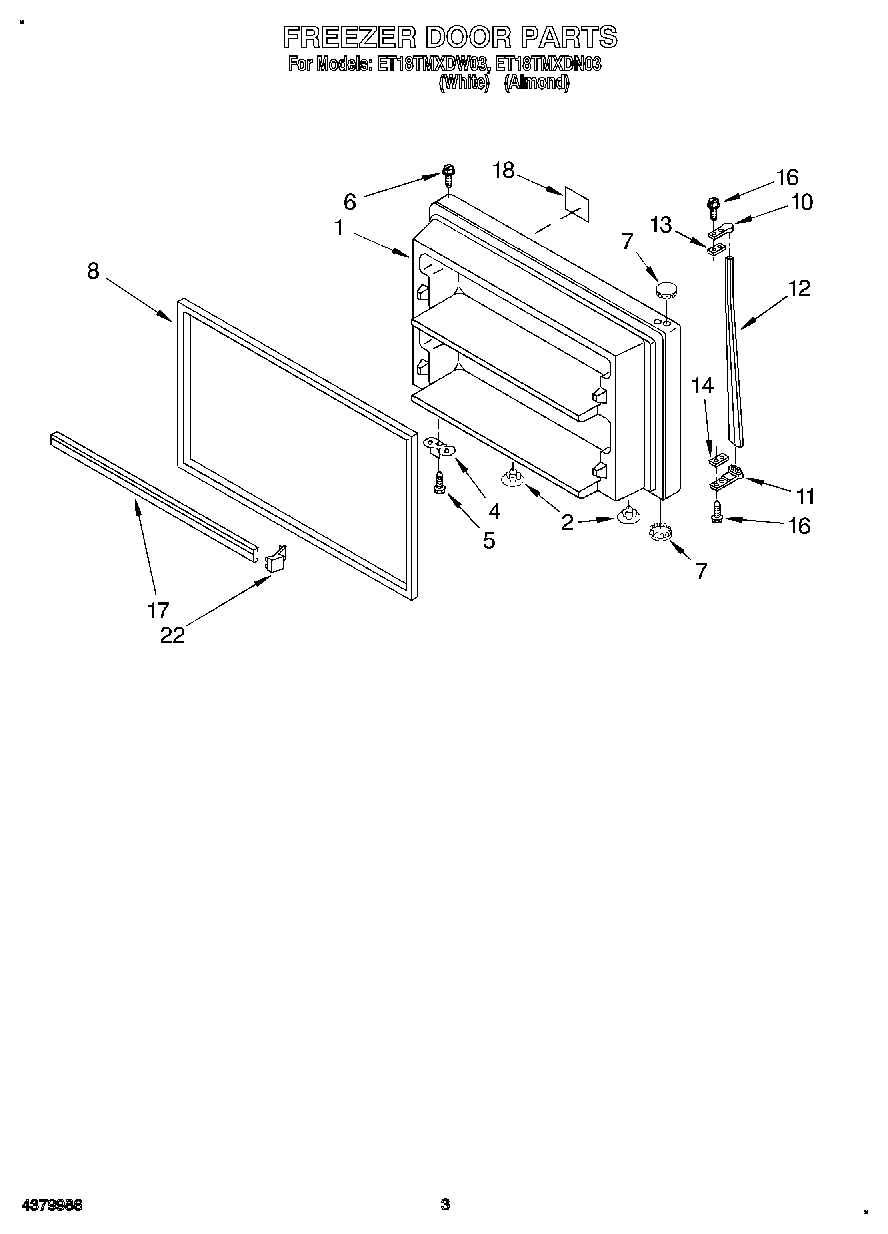

ET18TMXDW03 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (White)
1Freezer Door Panel (Almond)
2Hole Plug (2) (Almond)
2Hole Plug (2)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82159327 Whirlpool Refrigerator Door Gasket
11819342 Whirlpool Refrigerator Endcap Kit
12Handle, F.C. (Almond)
12WP2162555 Whirlpool Refrigerator White Door Handle
13Shim, Handle
14Spa
16WP488920 Whirlpool Refrigerator Screw
17Trim-Door (2)
18Nameplate (Almond Model)
18Nameplate (White Model)
22ENDCAP
